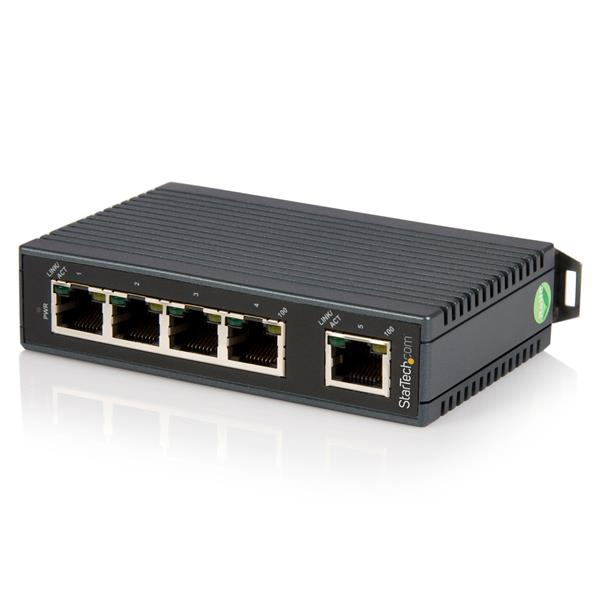

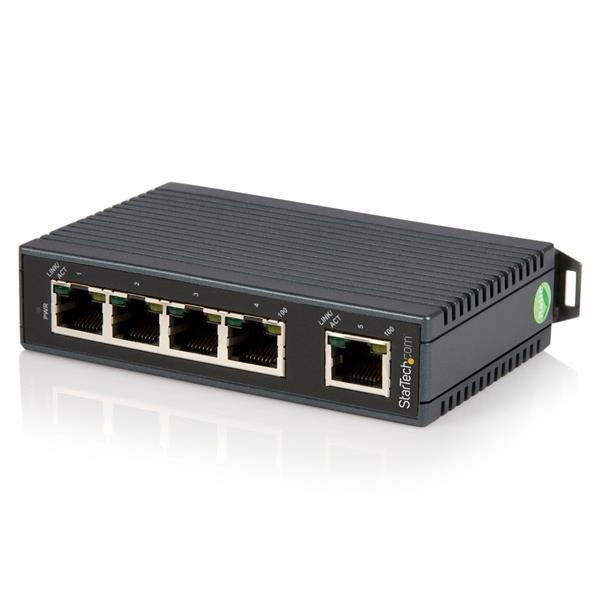

StarTech.com 5-port industrial Ethernet switch - DIN rail mountable
StarTech.com 5-port industrial Ethernet switch - DIN rail mountable, Unmanaged, Fast Ethernet (10/100), Full duplex, Rack mounting
Click or hover over image to enlarge
Part #: IES5102
Input voltage
12 - 48 V
Power consumption (max)
2.12 W
Rack mounting
Yes
Product colour
Black
Housing material
Plastic
LED indicators
Activity, Link, Power
International Protection (IP) code
IP30
Regulatory Approvals
EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea
Comsys Price
Save $34.15 off RRP
Only 2 left in stock
Order soon to avoid backorder
Four payments of $50.89 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM 5 PT UNMANAGED NETWORK SWITCH - DIN RAIL MOUNT - IP30 RATED, 2 YR
This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.
Conquer the tough demands of industrial environments
Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.
Get up and running in no time
This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
Reduce your energy costs with Energy-Efficient Ethernet
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch
- Wide-range 12-48V DC terminal block input
- Easy installation with an integrated DIN rail bracket
Key features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
- 10G support: No
- Full duplex: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Store-and-forward: Yes
- Jumbo frames support: No
- Rack mounting: Yes
- Product colour: Black
- Housing material: Plastic
- LED indicators: Activity, Link, Power
- International Protection (IP) code: IP30
- Regulatory Approvals: EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea
- Maximum cable length: 100 m
- Buffer size: 56 KB
- Maximum data transfer rate: 200 Mbit/s
- Mean time between failures (MTBF): 1179133 h
- Input voltage: 12 - 48 V
- Power consumption (max): 2.12 W
- Operating temperature (T-T): -10 - 60 °C
- Storage temperature (T-T): -25 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 25 mm
- Depth: 70 mm
- Height: 110 mm
- Weight: 148 g
+ 8 more — see the Specifications tab.
