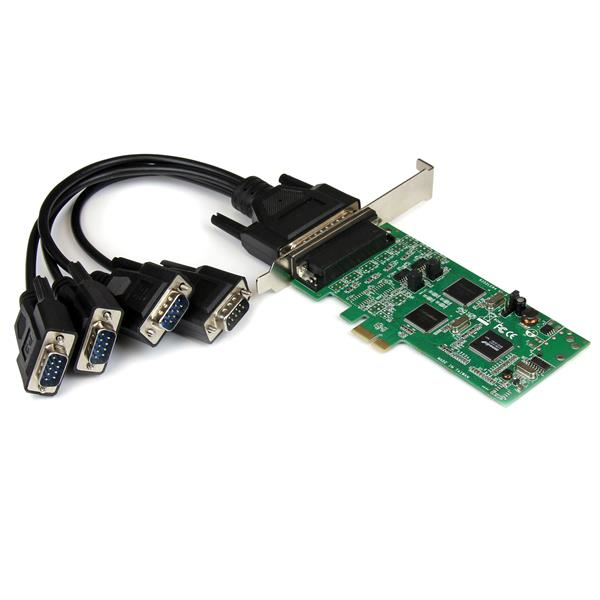

StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485, PCIe, Serial, RS-232/422/485, SystemBase SB16C1052PCI, 256 B, 0 - 100 °C
Click or hover over image to enlarge
Part #: PEX4S232485
Internal
Yes
Chipset
SystemBase SB16C1052PCI
FIFO (First In, First Out)
256 B
Harmonized System (HS) code
84733020
Data transfer rate
0.4608 Mbit/s
Connectivity technology
Wired
User guide
Yes
Package width
146 mm
Comsys Price
Save $66.57 off RRP
Out of Stock
Contact us for ETA or alternatives
Four payments of $81.94 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

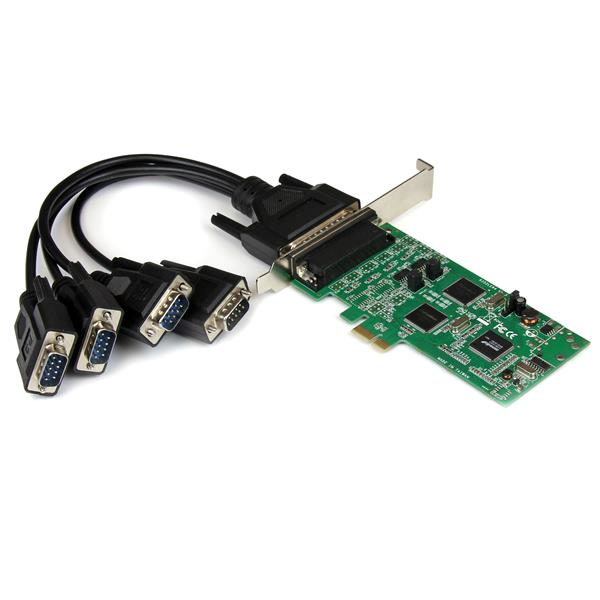

STARTECH.COM 4PORT DUAL PROFILE PCI EXPRESS RS232 RS422 RS485 SERIAL CARD, LTW
The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.
A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- This single PCI Express combo card is compatible with any serial device protocol (RS232, RS422, and RS485), allowing for communication with multiple devices over mixed protocols
- Includes both low profile/half-height and full profile brackets to ensure fitment into a broad range of system form factors
- The included breakout cable saves expense as an all-in-one solution, and allows the addition of multiple serial ports through a single PCI Express slot
Key features
- Host interface: PCIe
- Output interface: Serial
- Serial ports quantity: 4
- Serial interface type: RS-232/422/485
- Internal: Yes
- Chipset: SystemBase SB16C1052PCI
- FIFO (First In, First Out): 256 B
- Operating temperature (T-T): 0 - 100 °C
- Storage temperature (T-T): 0 - 150 °C
- Operating relative humidity (H-H): 20 - 80%
- Windows operating systems supported: Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Linux operating systems supported: Yes
- Compliance certificates: RoHS
- Width: 125 mm
- Depth: 70 mm
- Height: 20 mm
- Weight: 67.4 g
- User guide: Yes
- Package width: 146 mm
- Package depth: 210 mm
- Package height: 41 mm
- Package weight: 390 g
- Harmonized System (HS) code: 84733020
- Data transfer rate: 0.4608 Mbit/s
- Connectivity technology: Wired
