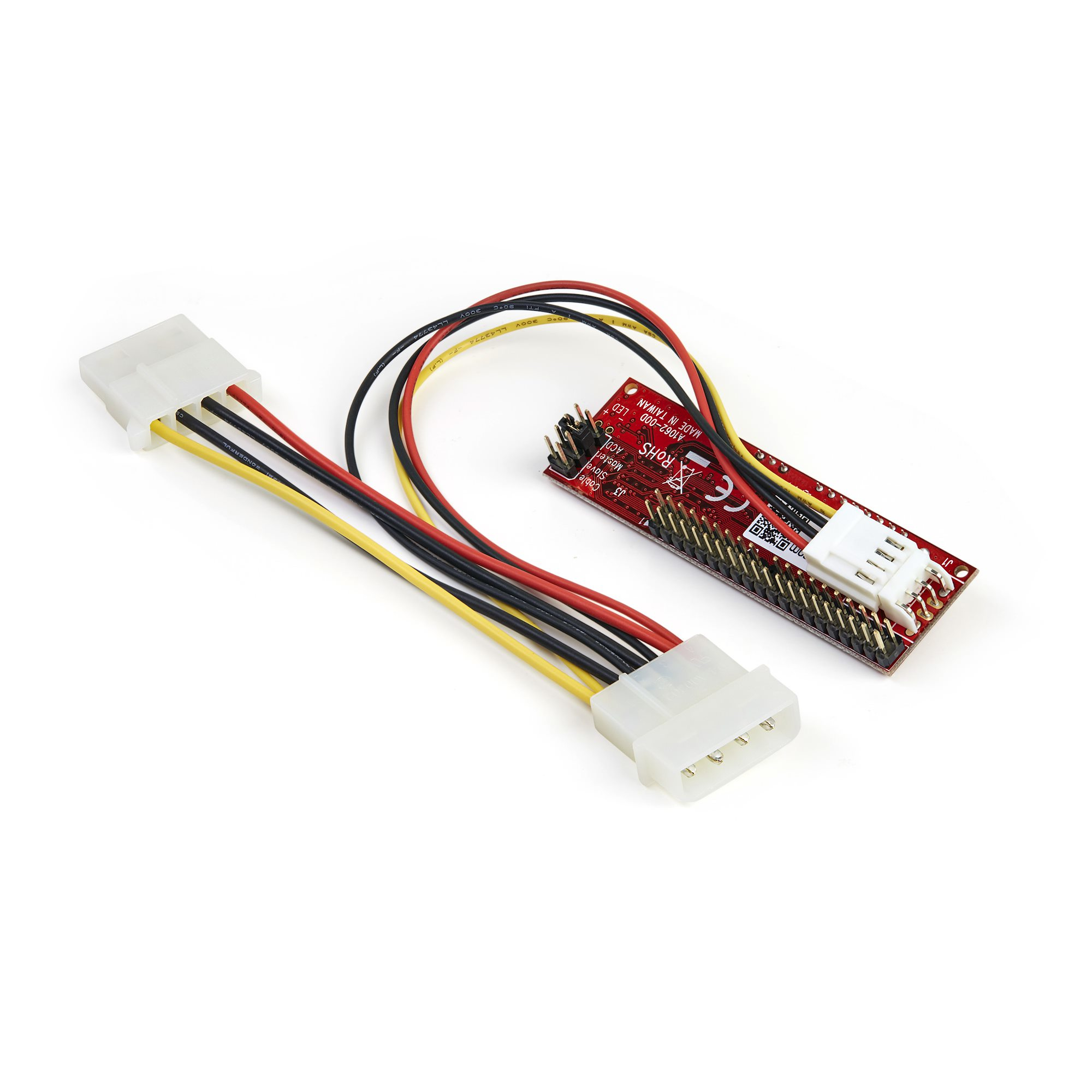

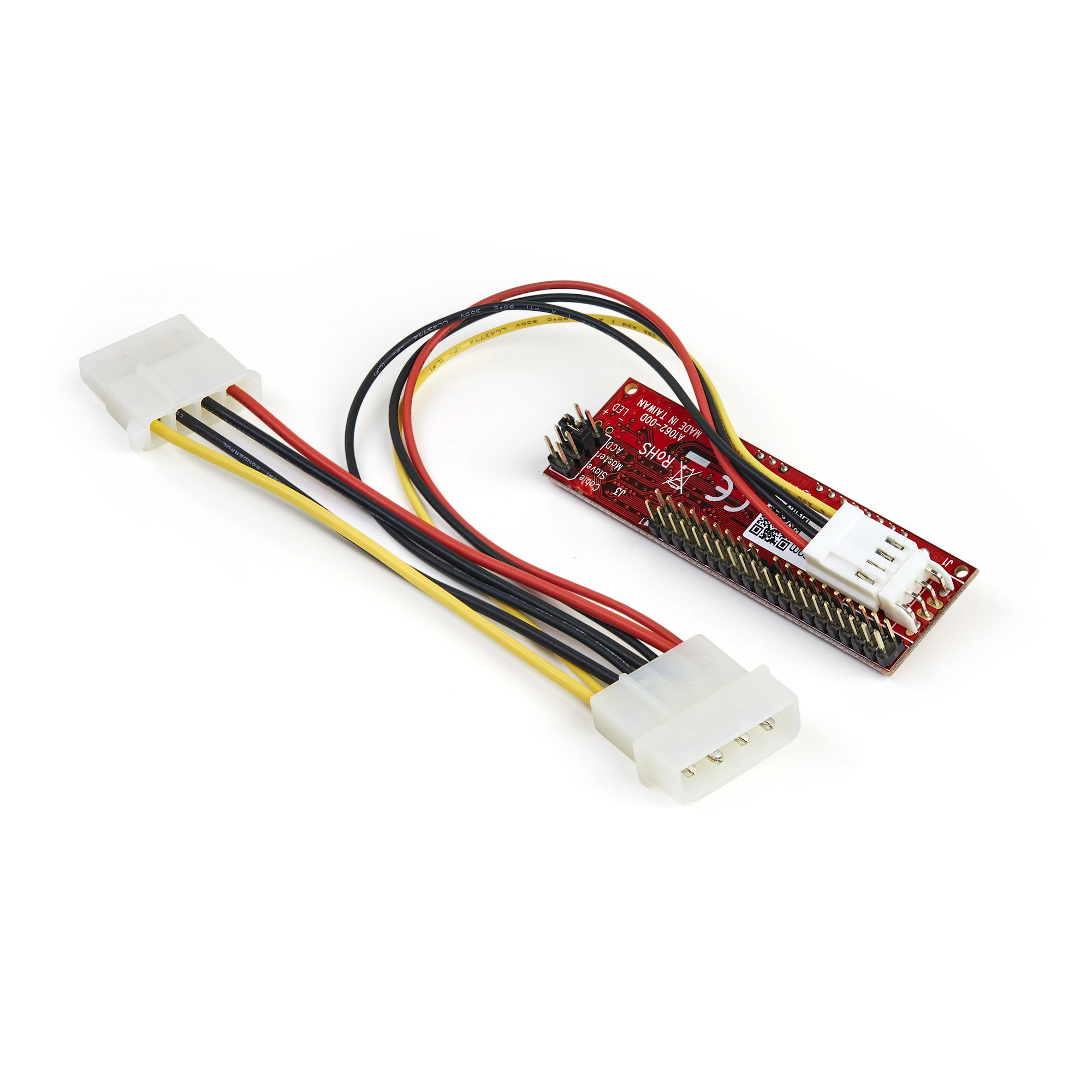

StarTech.com 40-Pin IDE to SATA Adapter Converter
40-Pin IDE PATA to SATA Adapter Converter - IDE to 2.5/3.5/5.25 SATA drive adapter with support for solid state drives (SSD) hard drives (HDD) and optical drives (ODD)
- Brand: StarTech.com
- Category: Cables & Connectivity
- SKU: 2475266
- MPN: IDE2SAT2
StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter -…
StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter - 40-Pin PATA to 2.5" SATA HDD/SSD/ODD Converter, IDE, SATA, 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin), Red, FCC, CE, TAA, REACH, Marvell - 88SA8052
Click or hover over image to enlarge
Internal
Yes
Product colour
Red
Certification
FCC, CE, TAA, REACH
Chipset
Marvell - 88SA8052
Data transfer rate (max)
0.133 Gbit/s
Logical block addressing (LBA) support
48 bit
Harmonized System (HS) code
84733020
Products per master (outer) case
60 pc(s)
Comsys Price
In Stock
4 payments of $10.64Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com 40-Pin IDE to SATA Adapter Converter
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Host interface: IDE
- Output interface: SATA
- Connector(s): 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin)
- Internal: Yes
- Product colour: Red
- Certification: FCC, CE, TAA, REACH
- Chipset: Marvell - 88SA8052
- Data transfer rate (max): 0.133 Gbit/s
- Logical block addressing (LBA) support: 48 bit
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -25 - 80 °C
- Operating relative humidity (H-H): 15 - 90%
- Compliance certificates: RoHS
- Width: 20 mm
- Depth: 75.5 mm
- Height: 23 mm
- Weight: 29 g
- Manual: Yes
- Package width: 175 mm
- Package depth: 145 mm
- Package height: 33 mm
- Package weight: 89 g
- Harmonized System (HS) code: 84733020
- Products per master (outer) case: 60 pc(s)
- Master (outer) case width: 380 mm
- Master (outer) case length: 496 mm
- Master (outer) case height: 321 mm
- Material: Plastic, Steel
