StarTech.com 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI…

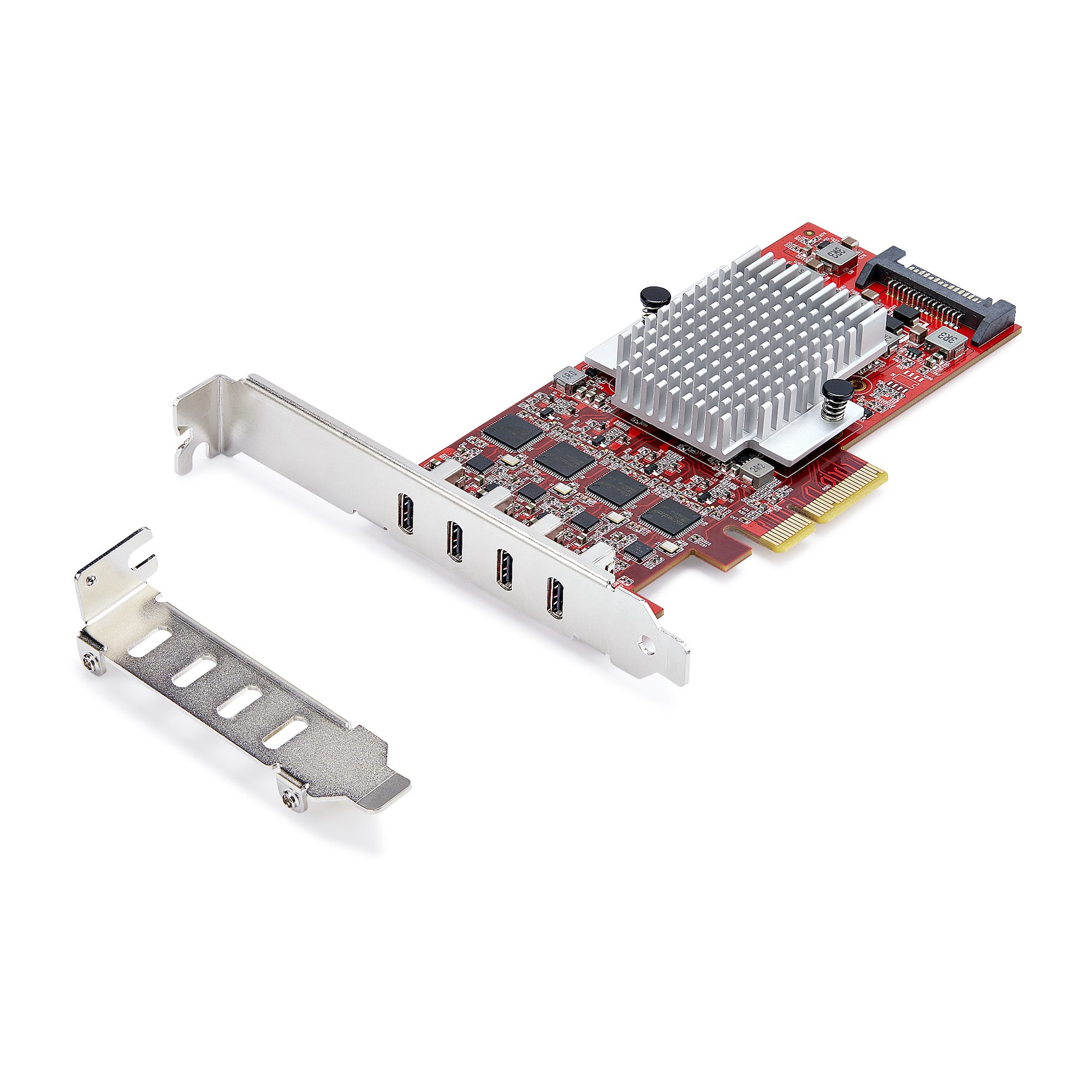

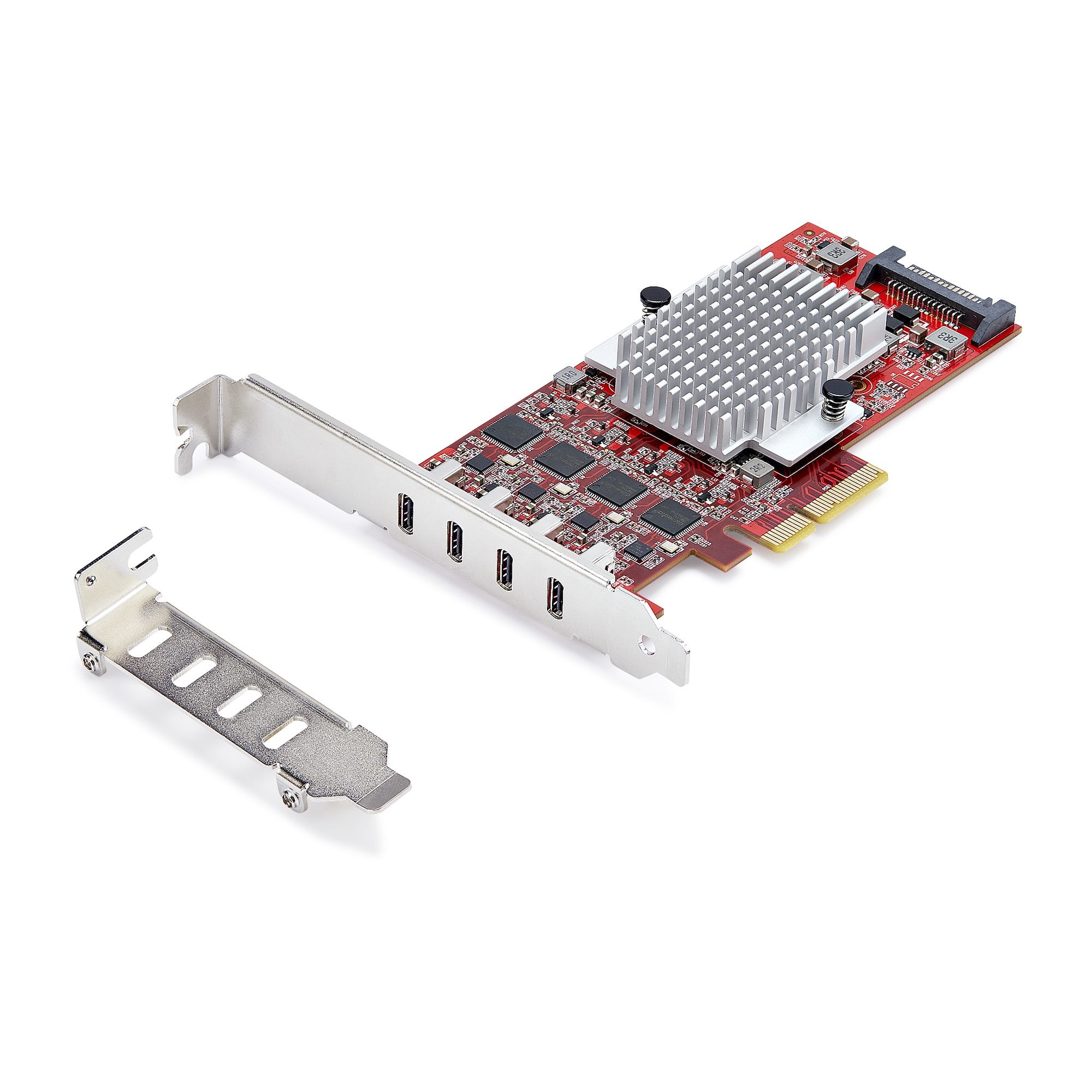

StarTech.com 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Expansion Card, 4x Independent USB Controllers, Windows/Linux/macOS, TAA-Compliant, PCIe, USB Type-C, PCI 3.0, Red, ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X, 10 Gbit/s
Click or hover over image to enlarge
Part #: P10Q4C-USB-CARD
Internal
Yes
Product colour
Red
Chipset
ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X
Data transfer rate (max)
10 Gbit/s
Products per master (outer) case
60 pc(s)
Master (outer) case width
380 mm
Master (outer) case length
310 mm
Master (outer) case height
500 mm
Comsys Price
Save $117.40 off RRP
Out of Stock
Contact us for ETA or alternatives
Four payments of $147.77 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM 4-PORT USB TYPE-C PCIE CARD, USB-C 10GB, 4X CONTROLLERS, TAA, 2 YR
Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.
Dedicated USB Controllers
Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance
The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.
Charge and Sync USB Devices
This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.
Compatibility
The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed standard profile bracket and includes a low-profile bracket for maximum compatibility.
The StarTech.com Advantage
Key features
- Host interface: PCIe
- Output interface: USB Type-C
- Expansion card standard: PCI 3.0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 4
- Internal SATA ports quantity: 1
- Internal: Yes
- Product colour: Red
- Chipset: ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X
- Data transfer rate (max): 10 Gbit/s
- Operating temperature (T-T): 0 - 85 °C
- Storage temperature (T-T): -25 - 85 °C
- Operating relative humidity (H-H): 20 - 80%
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2019, Windows Server 2022
- Width: 56.2 mm
- Depth: 140 mm
- Height: 119.9 mm
- Weight: 120 g
- Mounting brackets included: Yes
- Quick installation guide: Yes
- Package width: 142 mm
- Package depth: 170 mm
- Package height: 30 mm
- Package weight: 160 g
- Products per master (outer) case: 60 pc(s)
- Master (outer) case width: 380 mm
- Master (outer) case length: 310 mm
- Master (outer) case height: 500 mm
Inc GST
$591.09
