StarTech.com 4-Port USB PCIe Card, USB 3.2 5Gbps, PCI Express…

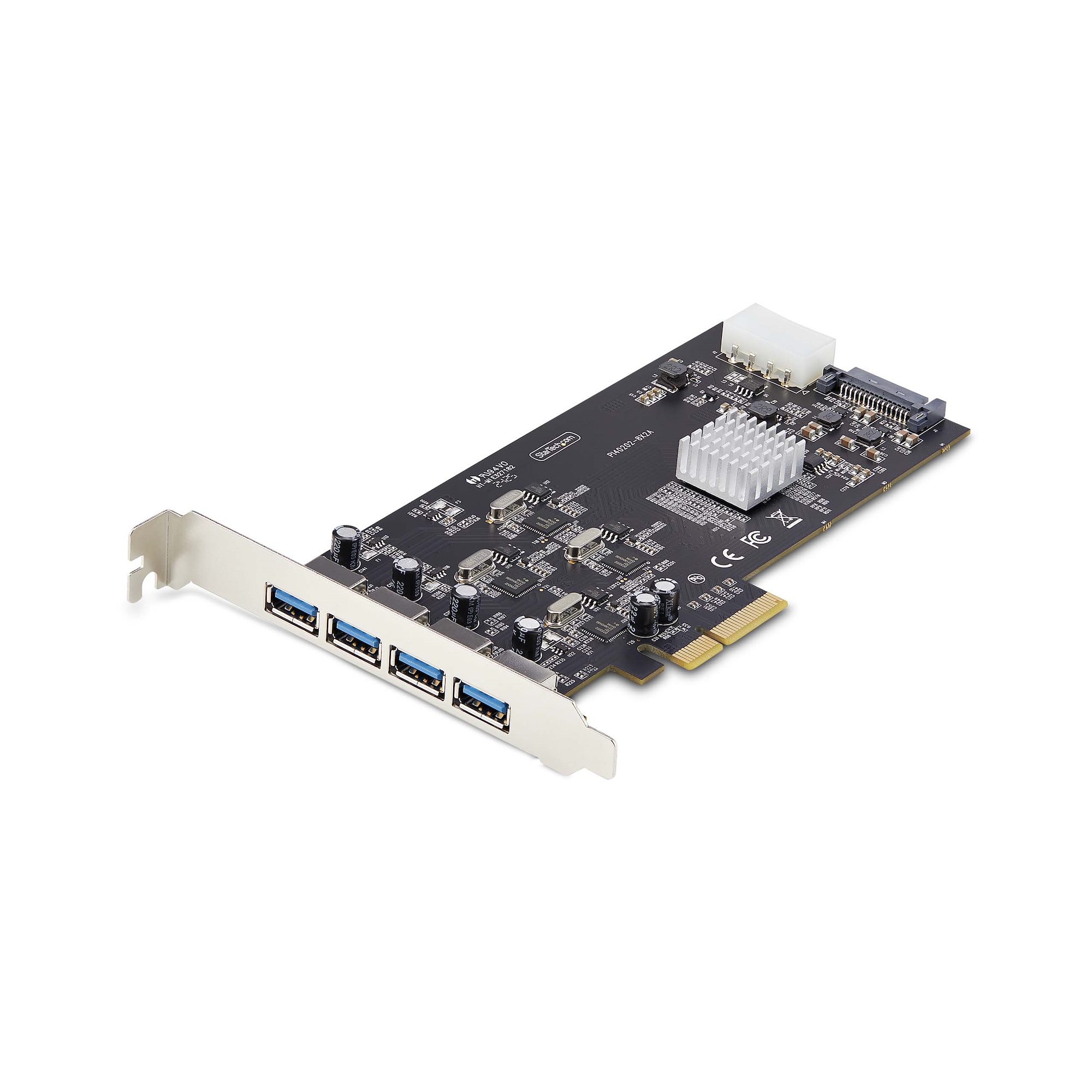

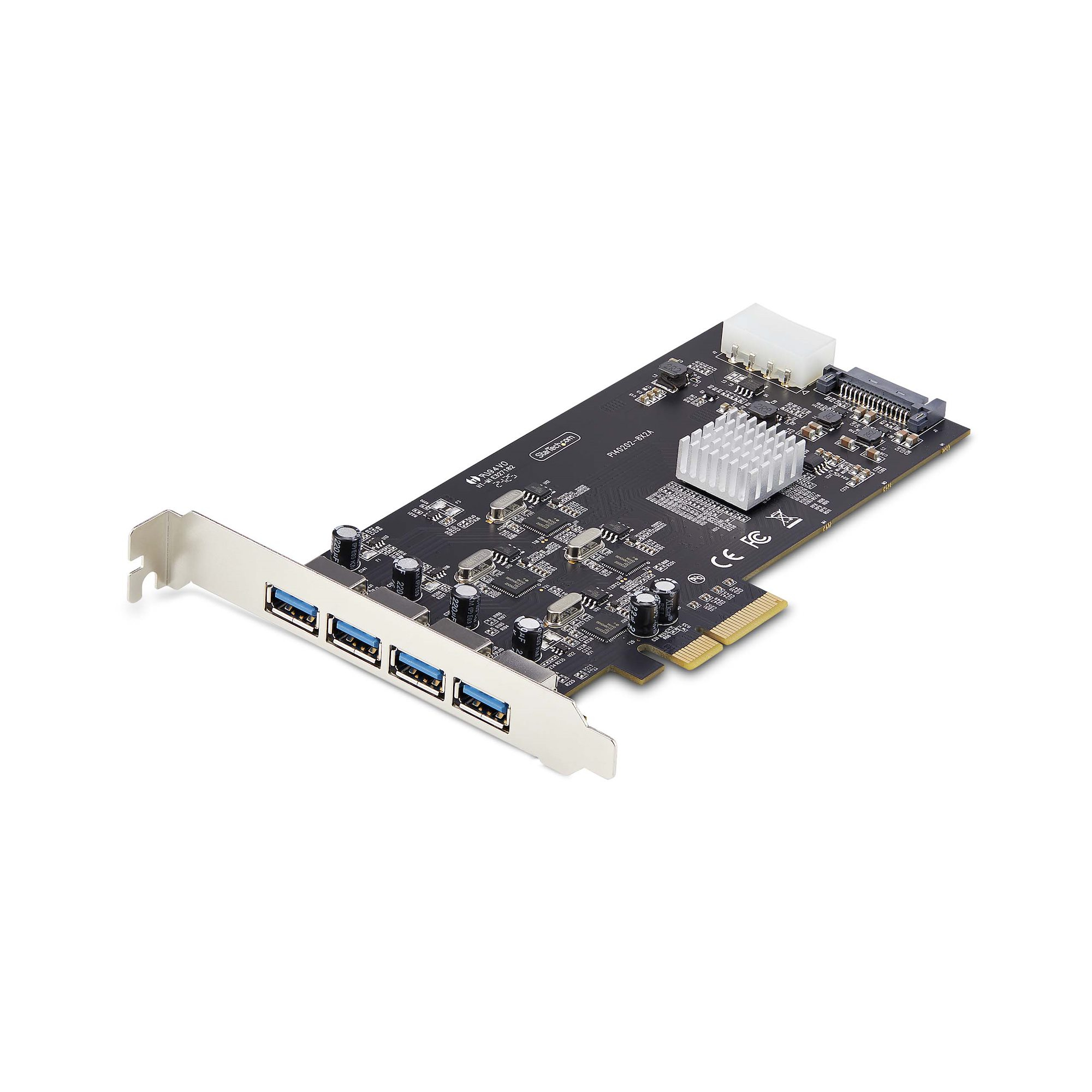

StarTech.com 4-Port USB PCIe Card, USB 3.2 5Gbps, PCI Express Expansion Card with 4x Independent USB Controllers, 4x USB-A Ports, Windows/macOS/Linux, PCIe, USB 3.2 Gen 1 (3.1 Gen 1), Full-height / Low-profile, PCI 2.0, SATA 15-pin, Black
Click or hover over image to enlarge
Part #: P5Q4A-USB-CARD
Internal
Yes
Product colour
Black
Chipset
Renesas - UPD720202 x4, Diodes Incorporated - PI7C9X2G608
Data transfer rate (max)
5 Gbit/s
UASP support
Yes
Products per master (outer) case
40 pc(s)
Master (outer) case width
440 mm
Master (outer) case length
420 mm
Comsys Price
Save $41.25 off RRP
Out of Stock
Contact us for ETA or alternatives
Four payments of $61.81 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM 4-PORT USB-A PCIE CARD, USB 3.2 5GBPS, 4X USB CONTROLLERS, 2 YR
Upgrade or expand the USB connectivity of a desktop computer or server by adding four independent USB Type-A 5Gbps ports over a single PCI Express 2.0 x4 connection.
Dedicated USB 5Gbps Per Port
When multiple devices are connected, traditional single-bus USB 3.2 Gen 1 cards share the maximum bandwidth across all ports. By employing four host controller chipsets, each port operates on its own independent channel, providing up to 5Gbps to each USB port, reducing performance bottlenecks and effectively quadrupling the total available bandwidth to 20Gbps.
Charge USB Devices
This USB PCIe expansion card can receive supplemental power through SATA or LP4 connectors. It supports the Battery Charging 1.2 (5V 1.5A) specification and provides up to 5V 2A (10W) on the USB Type-A ports when the bus power from the motherboard is insufficient.
Compatibility
The PCI Express USB card drivers auto-install in most major operating systems, including Windows 8 and later, macOS, and Linux. The expansion card supports hardware platforms such as Intel, AMD, and Apple Silicon and fits in PCI Express x4, x8, and x16 slots. Horizontal USB ports enhance compatibility with different computer cases, reduce the risk of port clearance issues, and accommodate a wider range of USB devices and cables.
The StarTech.com Advantage
Key features
- Host interface: PCIe
- Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
- Expansion card form factor: Full-height / Low-profile
- Expansion card standard: PCI 2.0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- SATA power connector type: SATA 15-pin
- Internal: Yes
- Product colour: Black
- Chipset: Renesas - UPD720202 x4, Diodes Incorporated - PI7C9X2G608
- Data transfer rate (max): 5 Gbit/s
- UASP support: Yes
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Width: 120 mm
- Depth: 169 mm
- Height: 19 mm
- Weight: 100 g
- Quick installation guide: Yes
- Package width: 144 mm
- Package depth: 207 mm
- Package height: 38 mm
- Package weight: 110 g
- Products per master (outer) case: 40 pc(s)
- Master (outer) case width: 440 mm
- Master (outer) case length: 420 mm
- Master (outer) case height: 320 mm
Inc GST
$247.24
