StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to…

StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Bracket Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection, PCIe, Serial, RS-232/422/485, Black, Activity, ASIX - AX99100

STARTECH.COM 4-PORT SERIAL PCIE CARD FOR RS232/RS422/RS485, 16C1050 UART, 2 YR

Click or hover over image to enlarge

Brand:STARTECH
MPN:PS74ADF-SERIAL-CARD

Part #: PS74ADF-SERIAL-CARD

Internal

Yes

Product colour

Black

LED indicators

Activity

Chipset

ASIX - AX99100

Baud rate

921.6 Kbit/s

FIFO (First In, First Out)

256 B

Data bits

5, 6, 8, 9

Stop bits

1, 1.5, 2

Returns & Warranty

Comsys Price

$410.54

Save $83.75 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $102.64 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

STARTECH.COM 4-PORT SERIAL PCIE CARD FOR RS232/RS422/RS485, 16C1050 UART, 2 YR

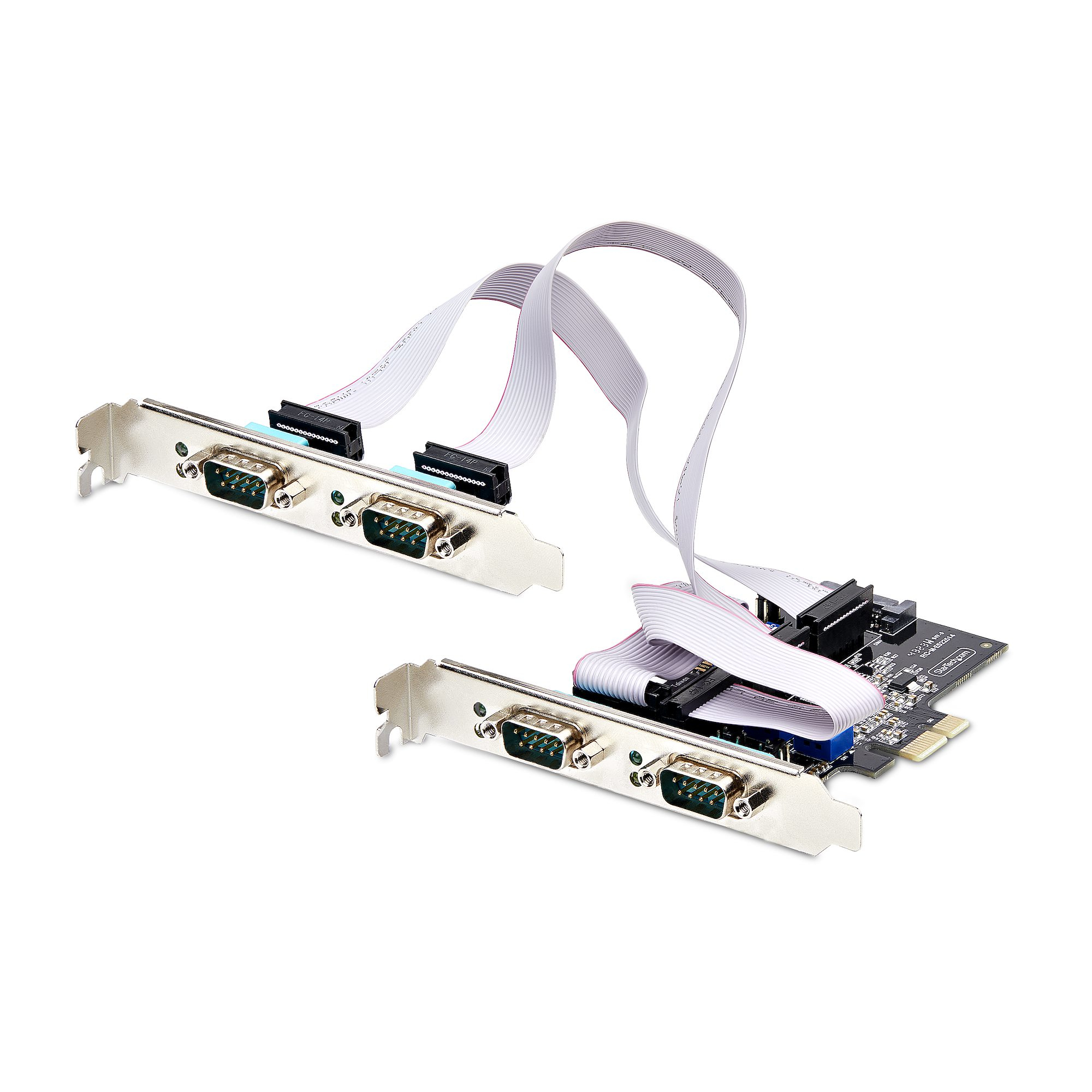

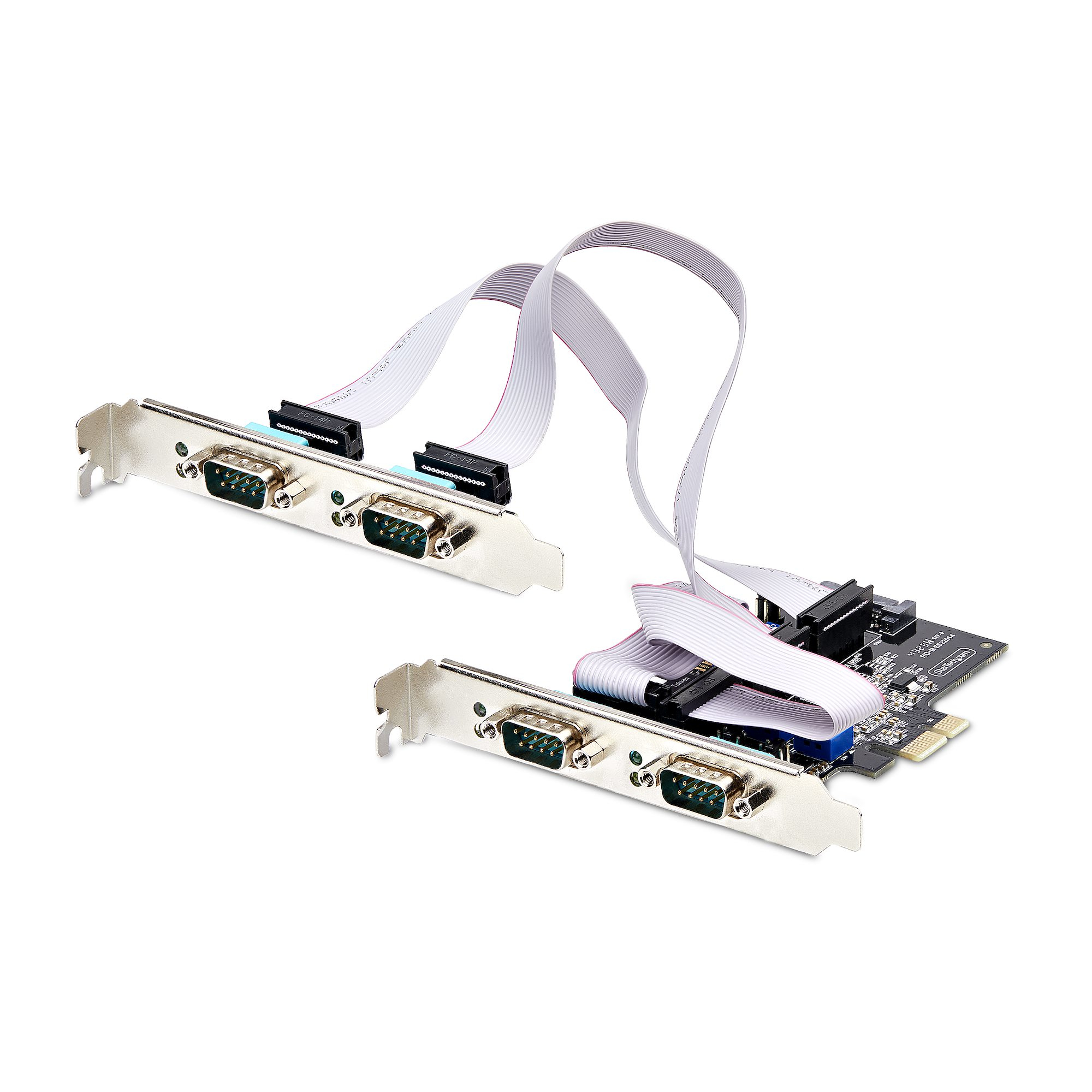

Add four RS-232, RS-422, or RS-485-capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card

Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 4-Port Serial PCI Express Card. The four DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.

Per-Port Serial Configuration

This PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity.

Configurable External SATA Power

The PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9.

Legacy Connectivity

This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 4-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes)

The StarTech.com Advantage

Key features

  • Host interface: PCIe
  • Output interface: Serial
  • Serial ports quantity: 4
  • Serial interface type: RS-232/422/485
  • Internal: Yes
  • Product colour: Black
  • LED indicators: Activity
  • Chipset: ASIX - AX99100
  • Baud rate: 921.6 Kbit/s
  • FIFO (First In, First Out): 256 B
  • Data bits: 5, 6, 8, 9
  • Stop bits: 1, 1.5, 2
  • Flow control support: Yes
  • Parity bit: Even, Mark, No, Odd, Space
  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): -20 - 80 °C
  • Operating relative humidity (H-H): 20 - 80%
  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
  • Linux operating systems supported: Yes
  • Server operating systems supported: Windows Server 2016, Windows Server 2019, Windows Server 2022
  • Sustainability compliance: Yes
  • Compliance certificates: RoHS, Trade Agreements Act (TAA)
  • Width: 109 mm
  • Depth: 121 mm
  • Height: 16 mm
  • Weight: 60 g
  • Cables included: Ribbon cable
  • Mounting brackets included: Yes
  • User guide: Yes
  • Package width: 144 mm

+ 9 more — see the Specifications tab.

Inc GST

$410.54
