StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART, Mini PCI Express, Serial, RS-232, Green, MosChip MCS9904CV-AA, 256 B
Click or hover over image to enlarge
Part #: 1861255
Internal
Yes
Product colour
Green
Chipset
MosChip MCS9904CV-AA
FIFO (First In, First Out)
256 B
Harmonized System (HS) code
84733020
Data transfer rate
0.921 Mbit/s
Compatible operating systems
Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64)/ CE 6.0 Windows Server 2008 R2/ 2003(32/64)/ 2000 Linux 2.6.x
Compliance industry standards
PCI Express 1.1
Comsys Price
Save $6.00 off RRP
Only 1 left in stock
Order soon to avoid backorder
Four payments of $24.72 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com 4 Port Mini PCIe Serial Card w/ 16650

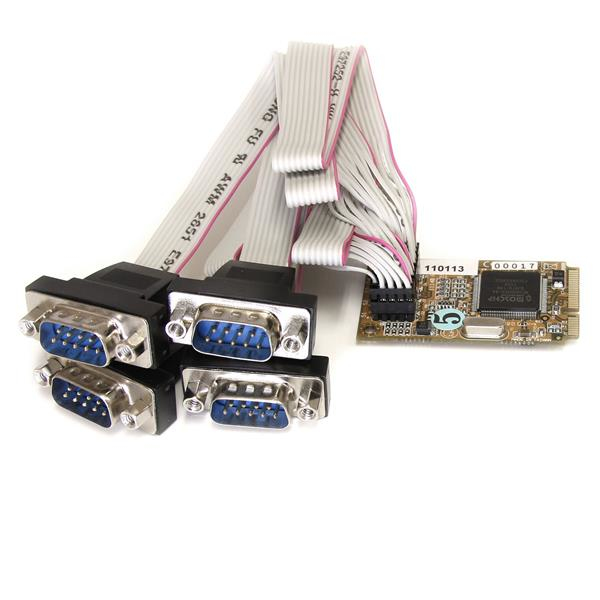

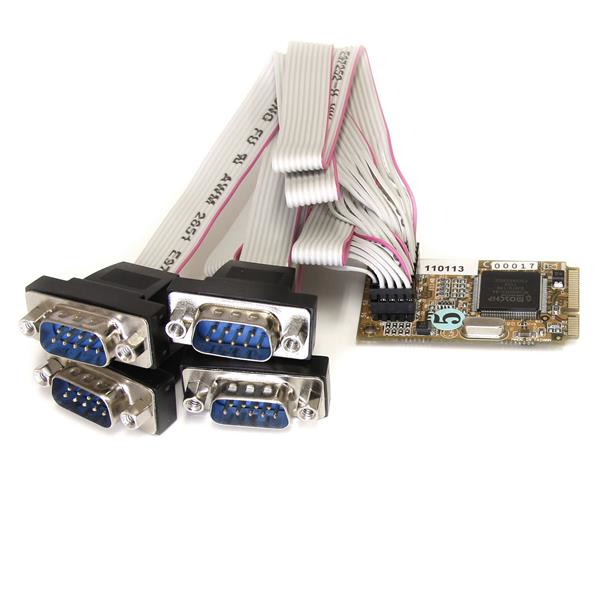

The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality.
A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards .
Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
The StarTech.com Advantage
- The smallest form factor available, for internally adding serial ports to any embedded system
- Native single-chip design means up to 48% less load on your CPU which is critical for small embedded PCs that use low power, low MHz CPUs
Key features
- Host interface: Mini PCI Express
- Output interface: Serial
- Serial ports quantity: 4
- Serial interface type: RS-232
- Internal: Yes
- Product colour: Green
- Chipset: MosChip MCS9904CV-AA
- FIFO (First In, First Out): 256 B
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -20 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Width: 10 mm
- Depth: 51 mm
- Height: 30 mm
- Weight: 150 g
- User guide: Yes
- Package width: 145 mm
- Package depth: 212 mm
- Package height: 40 mm
- Package weight: 200 g
- Harmonized System (HS) code: 84733020
- Data transfer rate: 0.921 Mbit/s
- Compatible operating systems: Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64)/ CE 6.0 Windows Server 2008 R2/ 2003(32/64)/ 2000 Linux 2.6.x
- Compliance industry standards: PCI Express 1.1
- Quantity outer carton: 50 pc(s)
Inc GST
$98.89
