StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device…

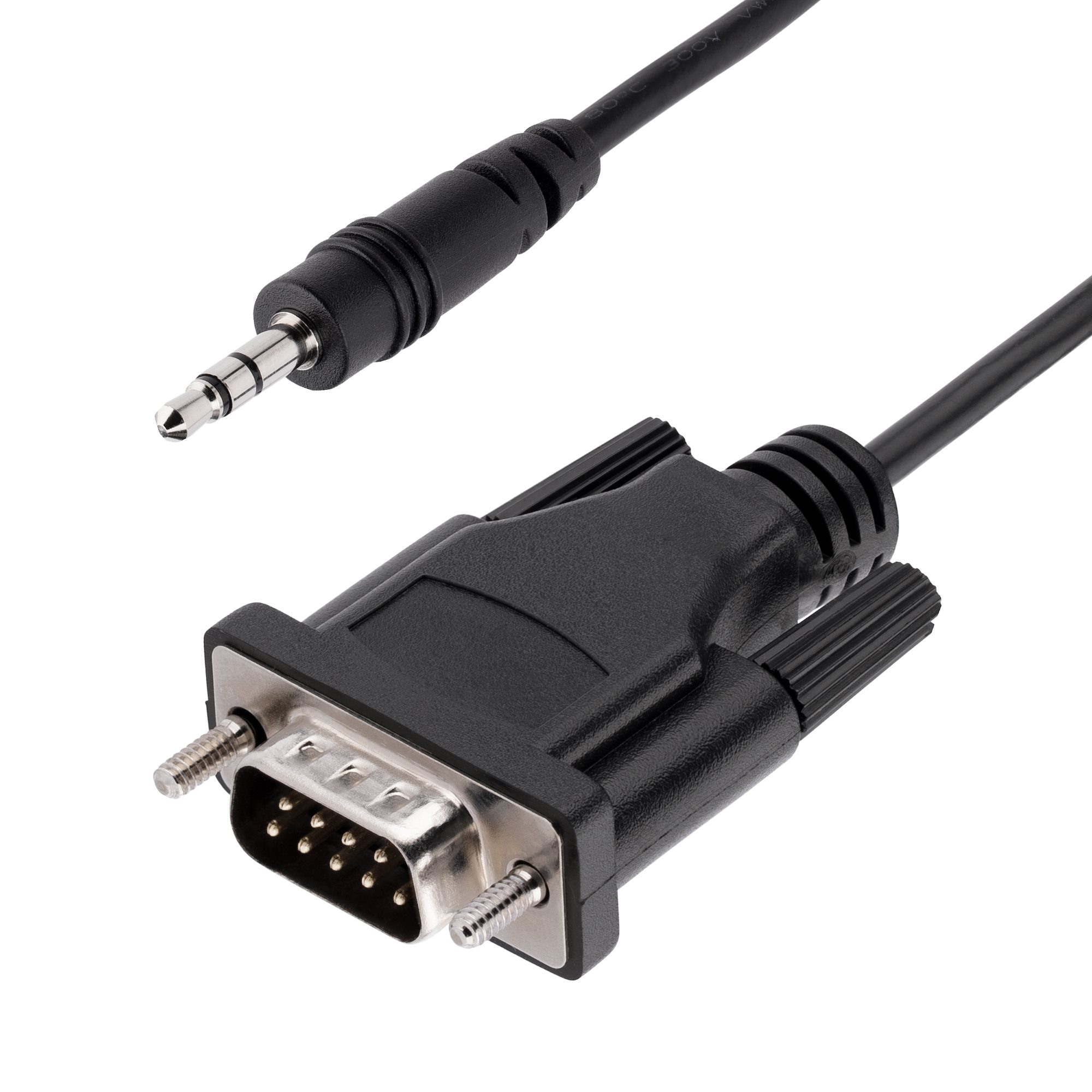

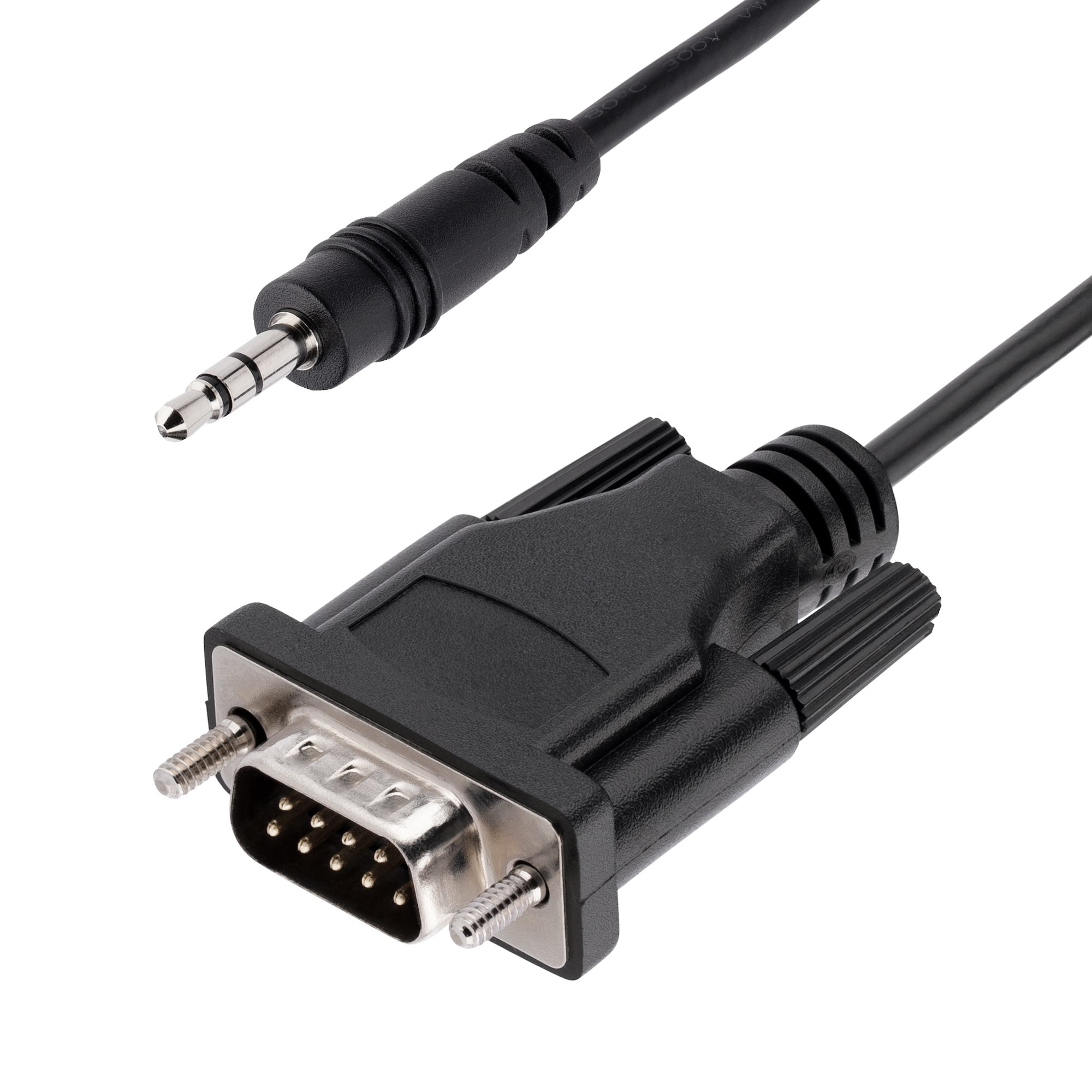

StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack, DB-9, 3.5mm, 1 m, Black
Click or hover over image to enlarge
Part #: 9M351M-RS232-CABLE
Product colour
Black
Cable jacket material
Polyvinyl chloride (PVC)
AWG wire size
28
Compliance certificates
RoHS
Products per master (outer) case
200 pc(s)
Master (outer) case width
388 mm
Master (outer) case length
340 mm
Master (outer) case height
310 mm
Comsys Price
Save $1.57 off RRP
In Stock
33 units available
Four payments of $6.32 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM 3FT DB9 TO 3.5MM SERIAL CABLE, RS232 DB9 MALE TO AUDIO JACK LTW
This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Key features
- Connector 1: DB-9
- Connector 2: 3.5mm
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Cable length: 1 m
- Product colour: Black
- Cable jacket material: Polyvinyl chloride (PVC)
- AWG wire size: 28
- Operating temperature (T-T): -20 - 60 °C
- Storage temperature (T-T): -20 - 60 °C
- Relative humidity: 30 - 75%
- Compliance certificates: RoHS
- Sustainability compliance: Yes
- Package width: 128 mm
- Package depth: 220 mm
- Package height: 10 mm
- Package weight: 23 g
- Cable diameter: 3.5 mm
- Products per master (outer) case: 200 pc(s)
- Master (outer) case width: 388 mm
- Master (outer) case length: 340 mm
- Master (outer) case height: 310 mm
