StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with…
StarTech.com 2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART, PCIe, Serial, PCIe 1.0a, RS-232, Green, Stainless steel, ASIX - MCS9901CV-CC
Click or hover over image to enlarge
Brand:STARTECH
MPN:PEX2S5531P
Part #: PEX2S5531P
Internal
Yes
Product colour
Green, Stainless steel
Chipset
ASIX - MCS9901CV-CC
Baud rate
460.8 Kbit/s
FIFO (First In, First Out)
128 B
Flow Control type
DTR/DSR, RTS/CTS, XON/XOFF
Supported protocols
EPP, ECP, SPP, PS/2
Harmonized System (HS) code
84733020
Comsys Price
$97.74
Save $11.35 off RRP
In Stock
5 units available
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $24.44 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM 2S1P NATIVE PCI EXPRESS PARALLEL SERIAL COMBO CARD WITH 16550 2 YR
Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profile computer through a PCI Express expansion slot

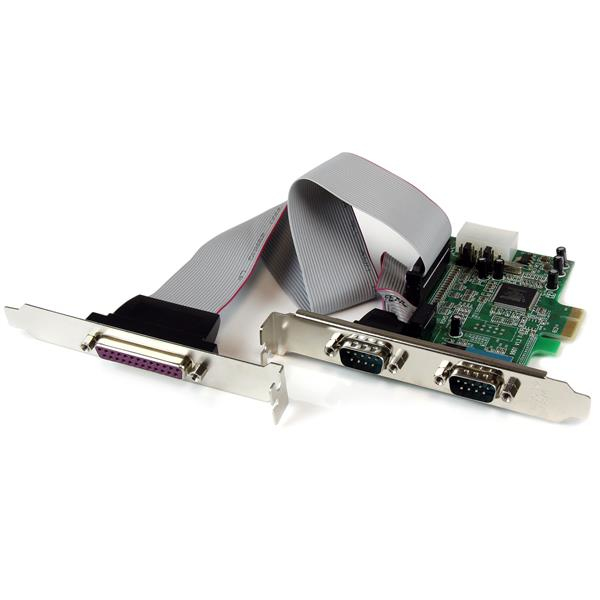

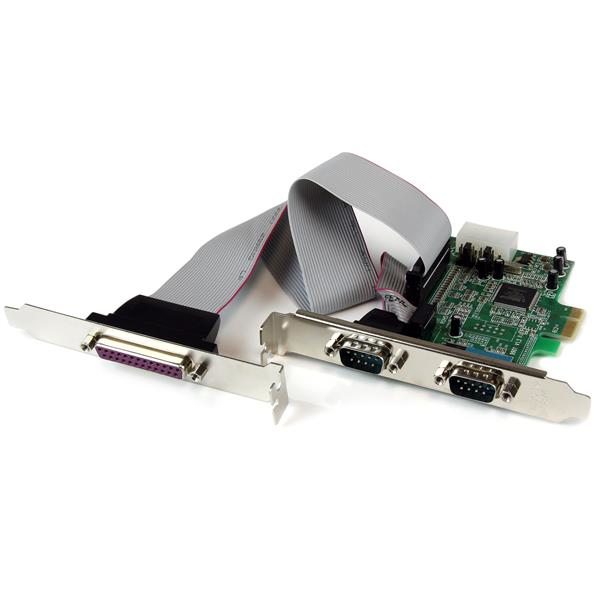

The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.
Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.
This product is a replacement for our PEX2S5521P card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.
Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.
This product is a replacement for our PEX2S5521P card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Host interface: PCIe
- Output interface: Serial
- Expansion card standard: PCIe 1.0a
- Serial ports quantity: 2
- Serial interface type: RS-232
- Parallel ports quantity: 1
- Internal: Yes
- Product colour: Green, Stainless steel
- Chipset: ASIX - MCS9901CV-CC
- Baud rate: 460.8 Kbit/s
- FIFO (First In, First Out): 128 B
- Flow Control type: DTR/DSR, RTS/CTS, XON/XOFF
- Supported protocols: EPP, ECP, SPP, PS/2
- Operating temperature (T-T): -10 - 80 °C
- Storage temperature (T-T): -20 - 100 °C
- Operating relative humidity (H-H): 5 - 85%
- Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows CE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Mac operating systems supported: Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Other operating systems supported: Windows Embedded POSReady 2009, Windows Embedded Standard 2009
- Compliance certificates: CE, RoHS
- Width: 120 mm
- Depth: 105 mm
- Height: 20 mm
- Weight: 112 g
- Drivers included: Yes
- Manual: Yes
- Package width: 145 mm
- Package depth: 174 mm
+ 7 more — see the Specifications tab.
