StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card -…
StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext, PCIe, SATA, CE, FCC, REACH, ASMedia - ASM1061, 48 bit, 0 - 50 °C
Click or hover over image to enlarge
Part #: PEXESAT322I
Internal
Yes
Certification
CE, FCC, REACH
Chipset
ASMedia - ASM1061
Logical block addressing (LBA) support
48 bit
Native Command Queuing (NCQ)
Yes
Harmonized System (HS) code
84733020
Products per master (outer) case
80 pc(s)
Master (outer) case width
307 mm
Comsys Price
Save $15.17 off RRP
In Stock
10 units available
Four payments of $21.27 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM 2 PORT PCIE / PCI EXPRESS SATA III 6GBPS ESATA CONTROLLER CARD 2 YR

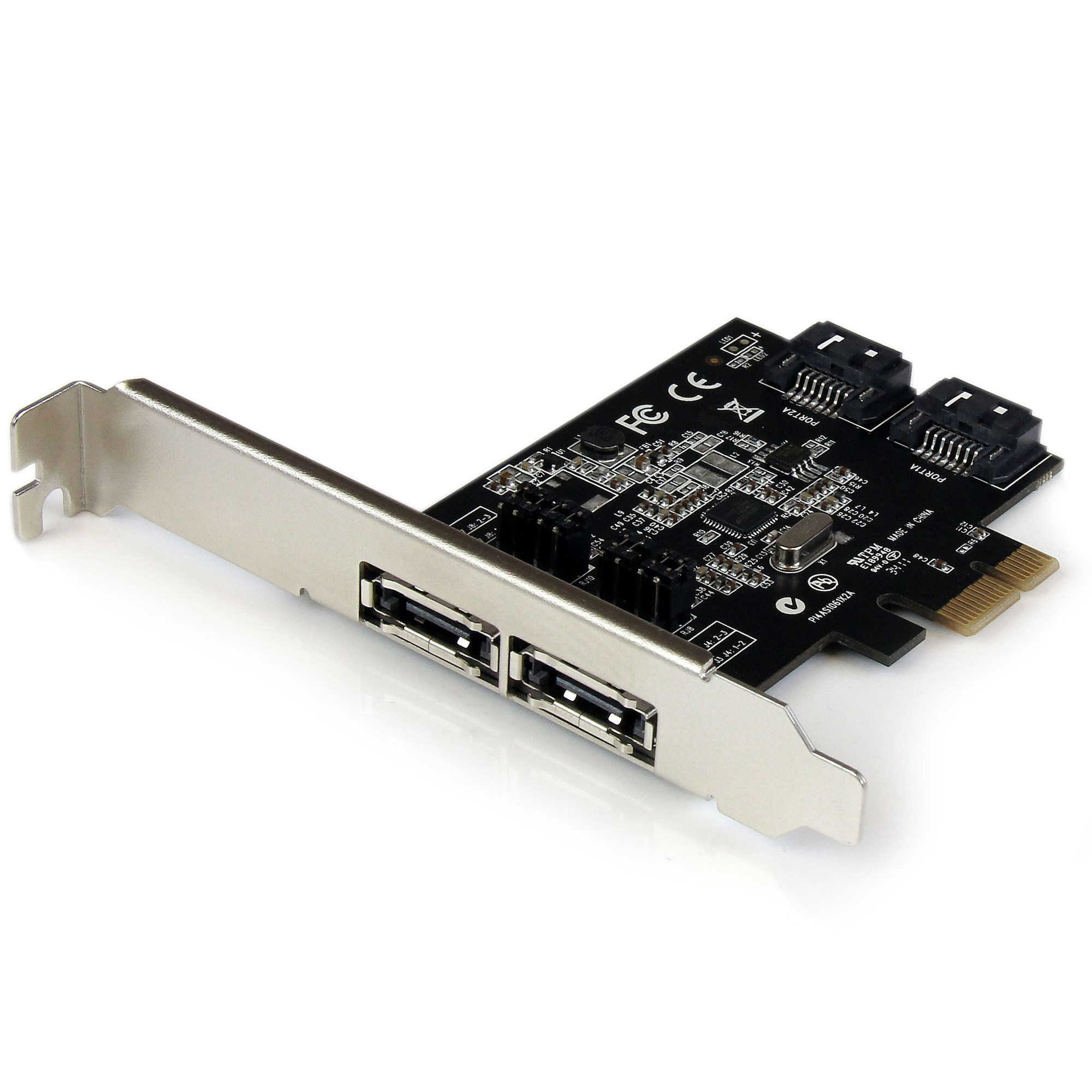

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Host interface: PCIe
- Output interface: SATA
- SATA revision: 3.0
- eSATA ports quantity: 2
- Internal SATA ports quantity: 2
- Port multiplier: Yes
- Internal: Yes
- Certification: CE, FCC, REACH
- Chipset: ASMedia - ASM1061
- Logical block addressing (LBA) support: 48 bit
- Native Command Queuing (NCQ): Yes
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 5 - 85%
- Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Compliance certificates: RoHS
- Width: 92 mm
- Depth: 121 mm
- Height: 20 mm
- Weight: 48 g
- Quantity: 1
- Cables included: SATA
- Mounting brackets included: Yes
- Drivers included: Yes
- Manual: Yes
- Package width: 173 mm
- Package depth: 144 mm
- Package height: 30 mm
- Package weight: 152 g
+ 5 more — see the Specifications tab.
