StarTech.com 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack…
StarTech.com 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane, 8.89 cm (3.5"), Bezel panel, Black, 2.5", Serial ATA, Serial ATA II, Serial ATA III, Aluminium
Click or hover over image to enlarge
Part #: HSB220SAT25B
Size (imperial)
8.89 cm (3.5")
Type
Bezel panel
Product colour
Black
Number of HDDs supported
2
HDD size
2.5"
HDD interface
Serial ATA, Serial ATA II, Serial ATA III
Material
Aluminium
Supported storage drive heights
9.5 mm
Comsys Price
Save $21.20 off RRP
Out of Stock
Contact us for ETA or alternatives

Four payments of $31.62 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
STARTECH.COM 2 DRIVE 2.5IN TRAYLESS HOT SWAP SATA MOBILE RACK BACKPLANE 2 YR

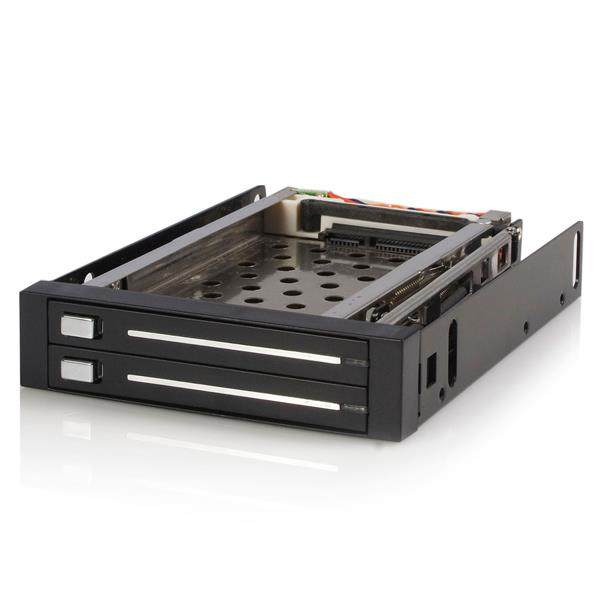

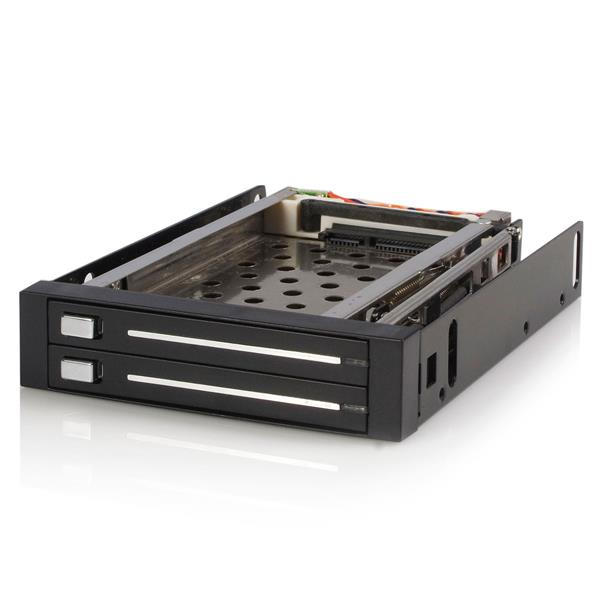

This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay.
Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.
With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
The StarTech.com Advantage
Key features
- Size (imperial): 8.89 cm (3.5")
- Type: Bezel panel
- Product colour: Black
- Number of HDDs supported: 2
- HDD size: 2.5"
- HDD interface: Serial ATA, Serial ATA II, Serial ATA III
- Material: Aluminium
- Supported storage drive heights: 9.5 mm
- LED indicators: Activity, Power
- Certification: CE, FCC, REACH
- Width: 102 mm
- Depth: 134 mm
- Height: 24 mm
- Weight: 286 g
- Package width: 126 mm
- Package depth: 171 mm
- Package height: 54 mm
- Package weight: 481 g
- Cables included: SATA
- Screws included: Yes
- Manual: Yes
- Compliance certificates: RoHS
- Harmonized System (HS) code: 84733080
Inc GST
$126.49
