StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with…

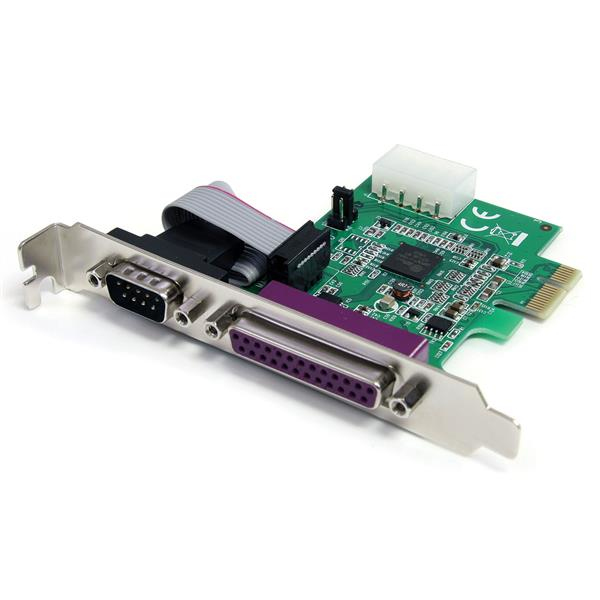

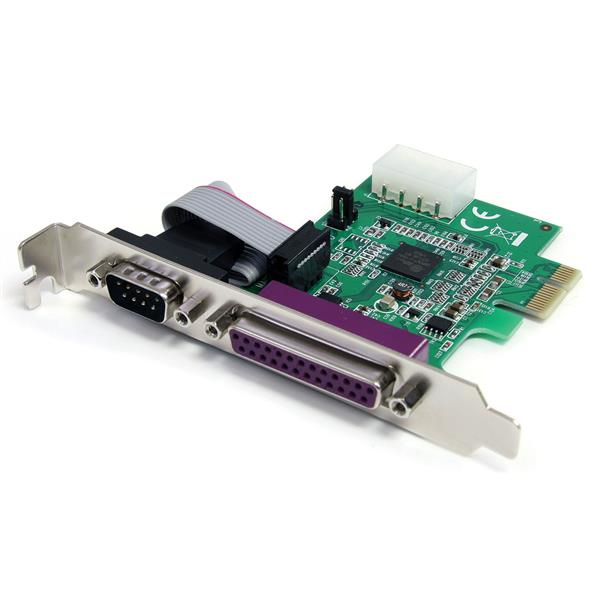

StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART, PCIe, Parallel, Serial, PCIe 1.1, RS-232, Green, 87600 h
Click or hover over image to enlarge
Brand:StarTech.com
MPN:1721933
Part #: 1721933
Power consumption (typical)
0.2 W
Internal
Yes
Product colour
Green
Mean time between failures (MTBF)
87600 h
Certification
CE, FCC, TAA
Chipset
PLX/Oxford - OXPCIe952
FIFO (First In, First Out)
128 B
Data bits
5, 6, 7, 8
Comsys Price
$88.54
Save $9.09 off RRP
Only 1 left in stock
Order soon to avoid backorder
NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
Four payments of $22.14 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com 1S1P PCIe Parallel Serial Combo Card
Add a parallel and serial port through a standard or low-profile PCI Express slot
The PEX1S1P952 1S1P Native PCI Express Parallel/Serial Combo Card with 16950 UART turns a PCI Express slot into 1 RS232 (DB9) serial, and 1 parallel port.
The combo card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards that use a bridge chip design.
This 1-Port Serial/1-Port Parallel card offers compatibility with a broad range of operating systems including Windows (32/64-bit) and Linux, for easy integration into mixed environments. The card also features an optional low profile/half-height bracket that enables you to install the card in virtually any computer case, regardless of form factor.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Native single-chip, single lane PCI Express chipset delivers true PCIe performance, reducing load on the CPU by up to 48%
- Standard and low profile/half-height bracket included to ensure fitment in any system
- Selectable power output on pin 9 allows for compatibility with more serial devices and industrial applications
The PEX1S1P952 1S1P Native PCI Express Parallel/Serial Combo Card with 16950 UART turns a PCI Express slot into 1 RS232 (DB9) serial, and 1 parallel port.
The combo card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards that use a bridge chip design.
This 1-Port Serial/1-Port Parallel card offers compatibility with a broad range of operating systems including Windows (32/64-bit) and Linux, for easy integration into mixed environments. The card also features an optional low profile/half-height bracket that enables you to install the card in virtually any computer case, regardless of form factor.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Native single-chip, single lane PCI Express chipset delivers true PCIe performance, reducing load on the CPU by up to 48%
- Standard and low profile/half-height bracket included to ensure fitment in any system
- Selectable power output on pin 9 allows for compatibility with more serial devices and industrial applications
Key features
- Host interface: PCIe
- Output interface: Parallel, Serial
- Expansion card standard: PCIe 1.1
- Serial ports quantity: 1
- Serial interface type: RS-232
- Parallel ports quantity: 1
- Internal: Yes
- Product colour: Green
- Mean time between failures (MTBF): 87600 h
- Certification: CE, FCC, TAA
- Chipset: PLX/Oxford - OXPCIe952
- FIFO (First In, First Out): 128 B
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Supports EPP and ECP: Yes
- Flow control support: Yes
- Parity bit: Even, Mark, No, Odd, Space
- Flow Control type: XON/XOFF
- Power consumption (typical): 0.2 W
- Operating temperature (T-T): -10 - 80 °C
- Storage temperature (T-T): -20 - 100 °C
- Operating relative humidity (H-H): 5 - 85%
- Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows CE, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Other operating systems supported: Windows XP Embedded
- Compliance certificates: RoHS
- Width: 12 mm
- Depth: 80 mm
- Height: 65 mm
+ 13 more — see the Specifications tab.
