StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe…
StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16550 UART - Low Profile Expansion Card - Windows & Linux, PCIe, Serial, PCI 1.1, RS-232, Green, ASIX - MCS9922CV-AA
Click or hover over image to enlarge
Part #: 1618034
Internal
Yes
Product colour
Green
Chipset
ASIX - MCS9922CV-AA
Baud rate
460.8 Kbit/s
FIFO (First In, First Out)
128 B
Harmonized System (HS) code
84733020
Products per master (outer) case
75 pc(s)
Master (outer) case width
365 mm
Comsys Price
Save $16.52 off RRP
In Stock
5 units available
Four payments of $25.01 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
StarTech.com 1 Port PCI Express Serial Card LP

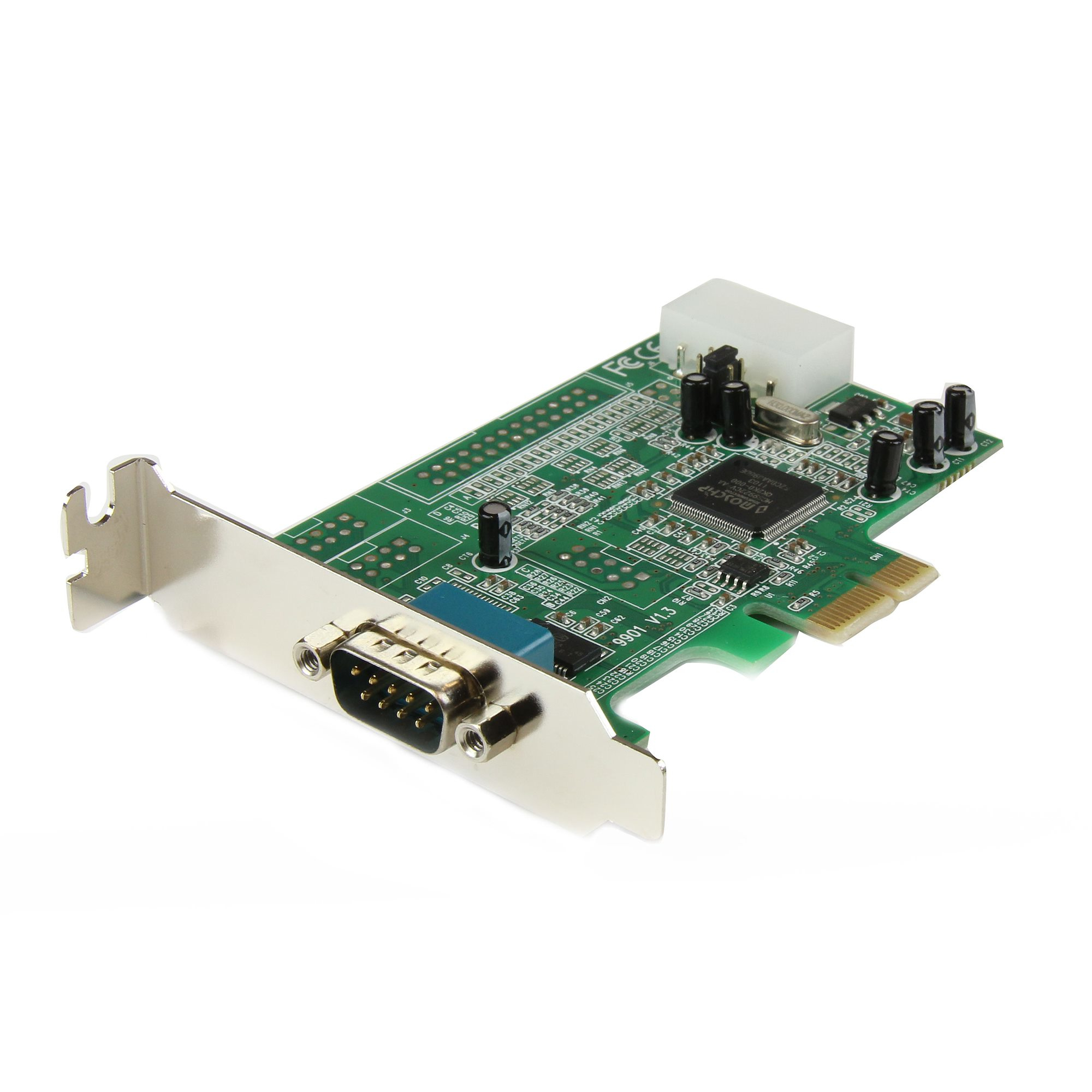

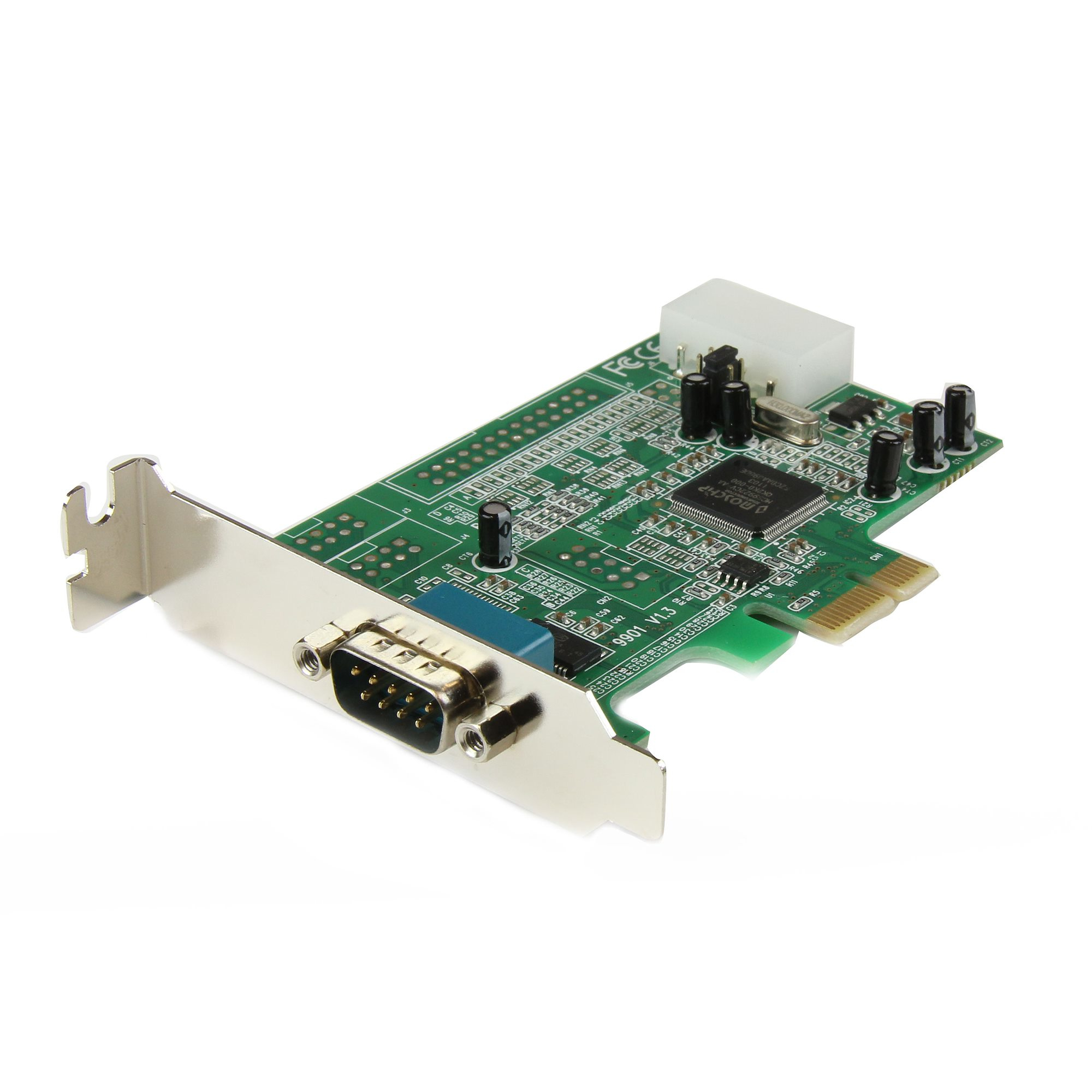

The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX1S552LP card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Host interface: PCIe
- Output interface: Serial
- Expansion card standard: PCI 1.1
- Serial ports quantity: 1
- Serial interface type: RS-232
- Peripheral (Molex) power connectors (4-pin): 1
- Internal: Yes
- Product colour: Green
- Chipset: ASIX - MCS9922CV-AA
- Baud rate: 460.8 Kbit/s
- FIFO (First In, First Out): 128 B
- Operating temperature (T-T): -10 - 80 °C
- Storage temperature (T-T): -20 - 100 °C
- Operating relative humidity (H-H): 5 - 85%
- Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Other operating systems supported: DOS, Windows XP Embedded
- Compliance certificates: CE, RoHS
- Width: 80 mm
- Depth: 105 mm
- Height: 20 mm
- Weight: 44 g
- Drivers included: Yes
- Manual: Yes
- Package width: 143 mm
- Package depth: 174 mm
- Package height: 32 mm
- Package weight: 130 g
+ 6 more — see the Specifications tab.
