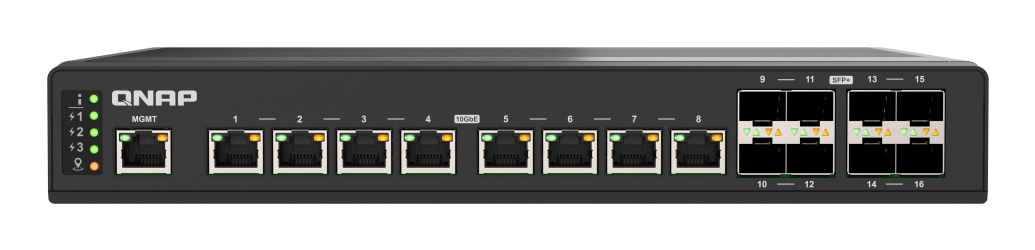

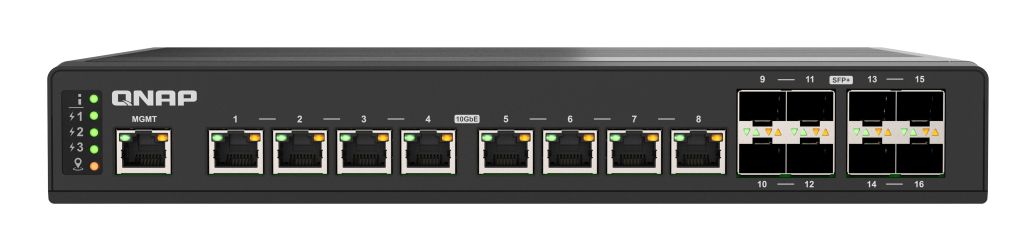

QNAP QSW-IM3216-8S8T network switch Managed L2 10G Ethernet…
QNAP QSW-IM3216-8S8T, Managed, L2, 10G Ethernet (100/1000/10000), Rack mounting
Click or hover over image to enlarge
Brand:QNAP
MPN:NS130
Part #: NS130
Power source
DC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
48.632 W
Rack mounting
Yes
Product colour
Black
Reset button
Yes
Comsys Price
$2,587.49
Clearance
Save $320.00 off RRP
Deal ends in
06Days
19Hrs
24Min
26Sec
Out of Stock
Contact us for ETA or alternatives
NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
Four payments of $646.87 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty: 2 Days
This product includes 2 Days warranty coverage.
QNAPQSW-IM3216-8S8T fan less industrial design, 8 ports 10GbE RJ45, 8 ports 10GbE SFP+, rack mount/wall mount web managed switch
Designed for harsh industrial environments, the QSW-IM3216-8S8T high-speed switch features a fanless IP20-rated enclosure with a redundant DC 9-54V power supply. It provides sixteen 10GbE ports, practical L2 management functions, and can be mounted in a rack, placed on a desktop, or wall mounted. This range of installation options makes it an economical and efficient high-speed networking solution for factory automation, AI smart manufacturing, smart cities, automotive industry, traffic monitoring, and other applications. The QSW-IM3216-8S8T was designed and manufactured in Taiwan, offering high-quality and reliable networking solutions.
Key features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- System event log: Yes
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- 10G Ethernet (copper) ports quantity: 8
- SFP+ module slots quantity: 8
- Console port: RJ-45
- Power connector: Terminal block (6-pin)
- Networking standards: IEEE 802.11w, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: Yes
- Port mirroring: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Switching capacity: 320 Gbit/s
- Throughput: 160 Gbit/s
- MAC address table: 16000 entries
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- DHCP features: DHCP server
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Loop protection: Yes
- Rack mounting: Yes
- Product colour: Black
- Reset button: Yes
- LED indicators: Yes
+ 24 more — see the Specifications tab.
