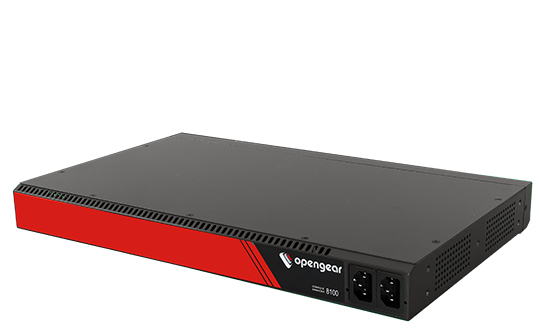

Opengear CM8100 RS-232
Opengear CM8100, TACACS+, RADIUS, Active Directory/OpenLDAP, IPSec, SNMP, SSH, RS-232, C14 coupler, 440 x 235 x 44 mm, 4.5 kg
Click or hover over image to enlarge
Part #: CM8148-AU
Power source type
AC
AC input voltage
100 - 240 V
Power consumption (typical)
15 W
Number of power supply units
2
Internal memory
2000 MB
Flash memory
32000 MB
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported
Cat5
Comsys Price
Save $1,708.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
Opengear CM8148-AU 48 serial straight pinout 2x 1GbE ARM 1.6GHz 2-core 2GB mem 32GB flash TPM 2.0 Docker support Dual AC Global Power Supply
The CM8100 is Opengear’s newest console manager for data centers and enterprise networks. Building on 18 years of Opengear product innovation and leadership, the CM8100 Console Manager provides up to 48 serial ports, enterprise-grade security using TPM 2.0 module, and independent monitoring using dual power supplies.
Connect 16, 32, or 48 serial console ports with simple straight-through cabling to Cisco®-style serial consoles reliably regardless of the state of your production network.
Host containerized applications to run across any platform or NetOps tools providing more agility and efficiency. Maximize your connectivity and keep data free from slowdowns with Dual Ethernet ports. Manage at scale through Opengear’s Lighthouse Management Software.
Designed and purpose-built energy efficient without compromising performance, the CM8100 requires less power and cooling for a lower total cost of ownership and high reliability.
Key features
- Rack mounting: Yes
- Supported programming languages: Perl, Python
- MIB support: Yes
- Zero Touch Provisioning (ZTP): Yes
- Web-based management: Yes
- Temperature sensor: Yes
- Product colour: Black, Red
- Compliance certificates: CE, RoHS
- Authentication method: TACACS+, RADIUS, Active Directory/OpenLDAP
- Security algorithms: IPSec, SNMP, SSH
- IP address filtering: Yes
- Console port: RS-232
- Serial ports quantity: 48
- Ethernet LAN (RJ-45) ports: 2
- AC outlet types: C14 coupler
- Dimensions (WxDxH): 440 x 235 x 44 mm
- Weight: 4.5 kg
- Power source type: AC
- AC input voltage: 100 - 240 V
- Power consumption (typical): 15 W
- Number of power supply units: 2
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -30 - 60 °C
- Operating relative humidity (H-H): 5 - 90%
- Internal memory: 2000 MB
- Flash memory: 32000 MB
- Processor family: Marvel
- Processor model: 88F6820
- Processor architecture: ARM Cortex-A9
- Processor cores: 2
+ 3 more — see the Specifications tab.
Inc GST
$10,310.89
