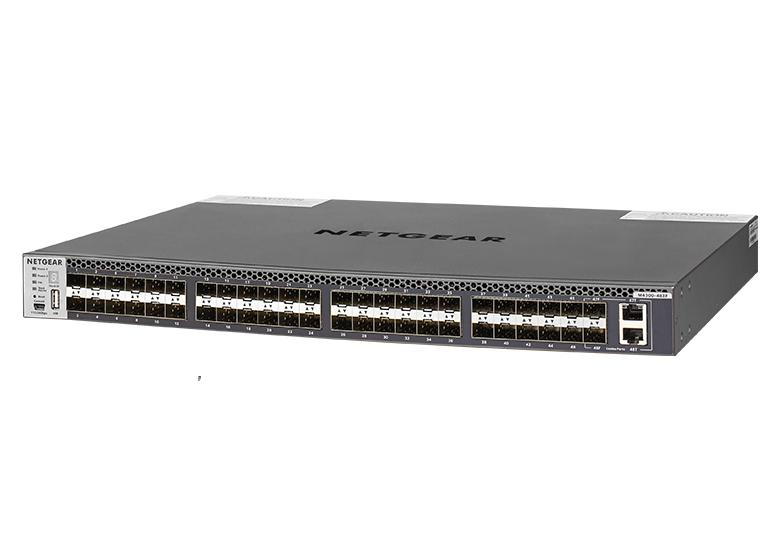

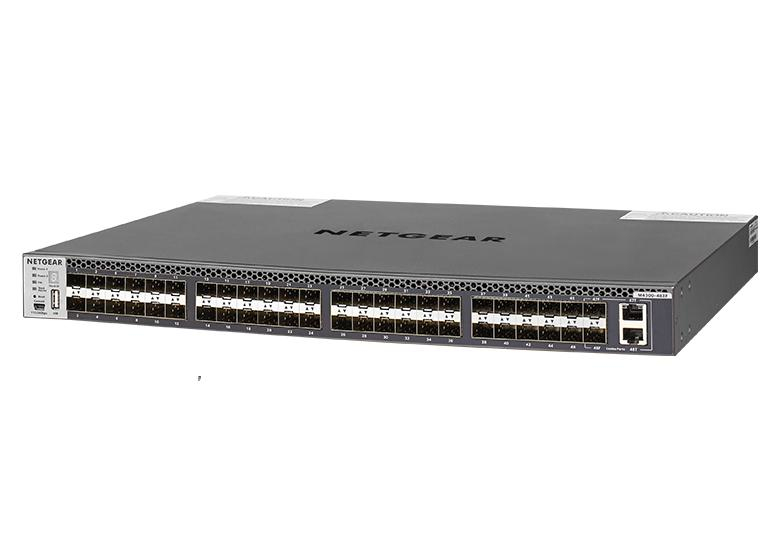

NETGEAR XSM4348FS 48XF 48-PORT MNGD SWITCH
NETGEAR M4300-48XF 48-PORT STACKABLE LAYER 3 FULLY MANAGED SWITCH WITH 48 X SFP+ 2 X 10GBASE-T PORTS PROSAFE LIFETIME WARRANTY XSM4348FS
- Brand: NETGEAR
- Category: Switches
- SKU: 4632212
- MPN: XSM4348FS-100AJS
NETGEAR M4300-48XF Managed L3 1U Black
NETGEAR M4300-48XF, Managed, L3, Rack mounting, 1U
Click or hover over image to enlarge
Power source
AC
Power supply included
Yes
Number of power supply units
1
Power consumption (max)
152.4 W
Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Black
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available to Order
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
NETGEAR XSM4348FS 48XF 48-PORT MNGD SWITCH
Full-width switches offer dual redundant, modular power supplies (select m4300 models)
High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Flexible Speeds
48 Copper ports have 100M/1G/10G speeds 48x10GBASE-T + 4X SFP+ Ports
Key features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- SFP+ module slots quantity: 48
- Console port: RJ-45/Mini-USB
- USB 2.0 ports quantity: 1
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3bz, IEEE 802.3u
- 10G support: Yes
- Port mirroring: Yes
- IP routing: Yes
- Link aggregation: Yes
- Auto-sensing: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN, Tagged VLAN, Voice VLAN
- Number of VLANs: 4093
- Switching capacity: 960 Gbit/s
- Throughput: 714 Mpps
- MAC address table: 128000 entries
- Store-and-forward: Yes
- Number of queues: 8
- Number of static routes: 64
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Packet buffer memory: 56 MB
- DHCP features: DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- BPDU filtering/protection: Yes
- Authentication: Guest VLAN, MAC-based authentication
- Multicast support: Yes
+ 25 more — see the Specifications tab.
Price on Application
