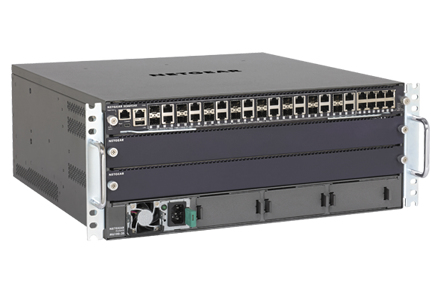

NETGEAR M6100-24X3 Managed L3 Gigabit Ethernet (10/100/1000) 4U…
NETGEAR M6100-24X3, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 4U
Click or hover over image to enlarge
Brand:NETGEAR
MPN:XCM8903SX-10000S
Part #: XCM8903SX-10000S
Rack mounting
Yes
Stackable
Yes
Form factor
4U
Product colour
Black, Grey
Housing material
Metal
Number of fans
3 fan(s)
Safety
CE, CSA, UL 1950 /cUL IEC 950/EN 60950
Networking standards
IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Comsys Price
$11,048.04
Save $1,830.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

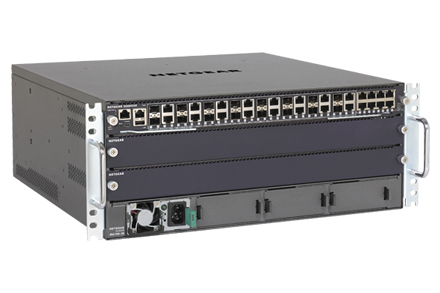

NETGEAR XCM8903SX-10000S M6100-24X3 Chassis Switch Starter Kit (XCM8903 APS1000W AFT603 XCM8924X)
M6100-24X3 Starter Kit bundle including M6100-3S base chassis, XCM8924X blade, AFT603 fan tray, APS1000W power supply
M6100: The Latest Advances in Hardware and Software Engineering for Higher Flexibility, Lower Complexity and Stronger Investment Protection, at a High-Value Price Point.
The NETGEAR® Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability - including passive backplane, hitless failover, redundant fabric and redundant management - without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class.
World-class availability
- Dependable continuity of operations with non-stop switching, non-stop routing and hitless failover supported for both fabric and management
- N+1 redundancy for power supplies and loop-free, disruption-free multi-chassis link aggregation (MLAG)
High speed performance
- 1.4 Tbps total routing / switching capacity and up to 1,071 Mpps intra-blade throughput
- 480 Gbps distributed fabric inter-module with each slot providing 2 x 40G access to the passive backplane (80G half-duplex; 160G full-duplex)
Lower complexity
- Entire feature set including datacenter (DCBX, PFC, ETS, FIP Snooping) and advanced IPv6 L3 routing (OSPF, PBR, BGP) is available without license
- Innovative slot-1 supervisory and slot-2 backup supervisory design simplifies the entire chassis installation and ongoing maintenance tasks
Investment protection
- Multi-role versatile platform engineered for cost-effective Gigabit edge, flexible Gigabit / 10 Gigabit distribution and scalable 10 Gigabit core applications
- Any Gigabit copper blade can be upgraded with PoE+ 30W or UPOE 60W daughter card and downgraded later if the application has changed
Industry standard management
- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support
Industry leading warranty
- NETGEAR M6100 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty*
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
M6100: The Latest Advances in Hardware and Software Engineering for Higher Flexibility, Lower Complexity and Stronger Investment Protection, at a High-Value Price Point.
The NETGEAR® Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability - including passive backplane, hitless failover, redundant fabric and redundant management - without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class.
World-class availability
- Dependable continuity of operations with non-stop switching, non-stop routing and hitless failover supported for both fabric and management
- N+1 redundancy for power supplies and loop-free, disruption-free multi-chassis link aggregation (MLAG)
High speed performance
- 1.4 Tbps total routing / switching capacity and up to 1,071 Mpps intra-blade throughput
- 480 Gbps distributed fabric inter-module with each slot providing 2 x 40G access to the passive backplane (80G half-duplex; 160G full-duplex)
Lower complexity
- Entire feature set including datacenter (DCBX, PFC, ETS, FIP Snooping) and advanced IPv6 L3 routing (OSPF, PBR, BGP) is available without license
- Innovative slot-1 supervisory and slot-2 backup supervisory design simplifies the entire chassis installation and ongoing maintenance tasks
Investment protection
- Multi-role versatile platform engineered for cost-effective Gigabit edge, flexible Gigabit / 10 Gigabit distribution and scalable 10 Gigabit core applications
- Any Gigabit copper blade can be upgraded with PoE+ 30W or UPOE 60W daughter card and downgraded later if the application has changed
Industry standard management
- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support
Industry leading warranty
- NETGEAR M6100 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty*
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Key features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 16
- Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- 10G support: Yes
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- VLAN support: Yes
- Number of VLANs: 4000
- MAC address table: 32000 entries
- Number of queues: 7
- Jumbo frames support: Yes
- DHCP features: DHCP server, DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS, HTTPS, SSH, SSL/TLS
- MAC address filtering: Yes
- Static port security: Yes
- SSH/SSL support: Yes
- Multicast support: Yes
- Management protocols: SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN
- Supported network protocols: iPv4/iPv6
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 4U
+ 15 more — see the Specifications tab.
