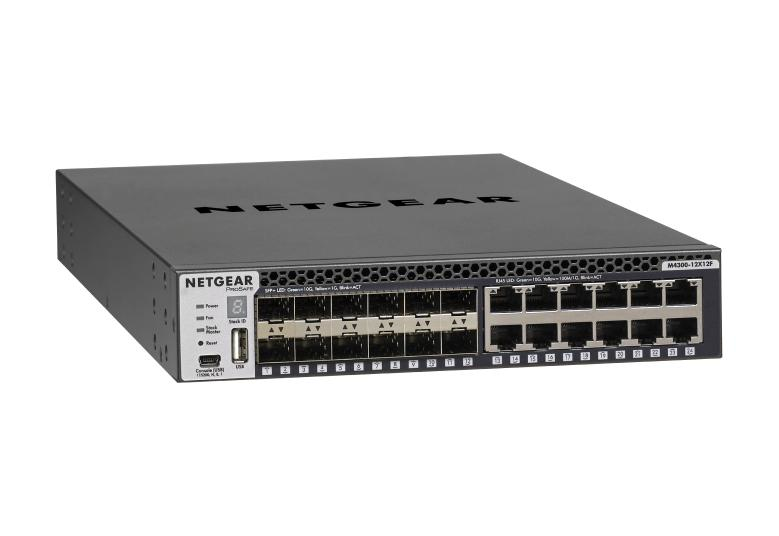

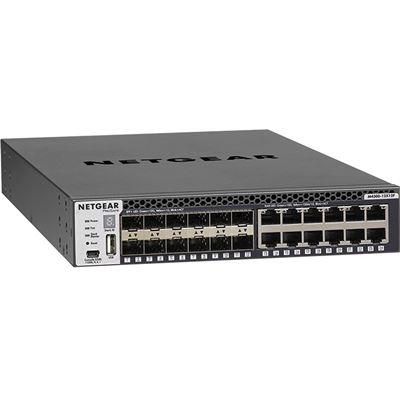

NETGEAR M4300-12X12F FULLYMGD STCK LYR3 24X10G
NETGEAR M4300-12X12F 24-PORT FULLY MANAGED STACKABLE LAYER 3 SWITCH (24 X 10G PORTS: 12 X 10GBASE-T & 12 X SFP+)
- Brand: NETGEAR
- Category: Switches
- SKU: 3244065
- MPN: XSM4324S-100AJS
NETGEAR M4300-12X12F Managed L2/L3 10G Ethernet (100/1000/10000) 1U…
NETGEAR M4300-12X12F, Managed, L2/L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U
Click or hover over image to enlarge
Power source
AC
Power supply included
Yes
Number of power supply units
1
Power consumption (max)
97 W
Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Black
Price on Application
Contact us for pricing
Sales will confirm current pricing and availability before order.
Available to Order
Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 25 Falcon Road, Manukau City Centre, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
NETGEAR M4300-12X12F FULLYMGD STCK LYR3 24X10G
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Key features
- Switch type: Managed
- Switch layer: L2/L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- Basic switching RJ-45 Ethernet ports quantity: 12
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- SFP+ module slots quantity: 12
- Fiber optic connector: SFP+
- Console port: RJ-45/Mini-USB
- USB 2.0 ports quantity: 1
- Networking standards: IEEE 802.3ad, IEEE 802.3az
- 10G support: Yes
- Port mirroring: Yes
- IP routing: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Rate limiting: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- Auto-sensing: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN
- Number of VLANs: 4000
- Fiber ethernet cabling technology: 10GBASE-LR, 10GBASE-LRM, 10GBASE-SR
- Switching capacity: 480 Gbit/s
- Forwarding rate: 357 Mpps
- MAC address table: 16000 entries
- Store-and-forward: Yes
+ 43 more — see the Specifications tab.
