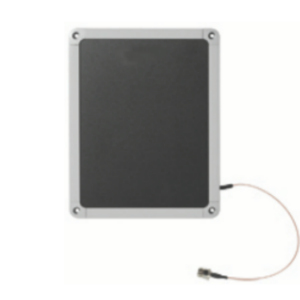

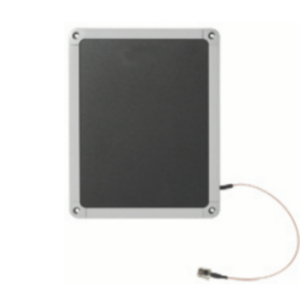

Zebra AN610 network antenna Omni-directional antenna N-type 1 dBi
Zebra AN610, 1 dBi, 0.864 - 0.868 GHz, Omni-directional antenna, N-type, Female, Circular polarization
Click or hover over image to enlarge
Brand:MOTOROLA
MPN:2448219
Part #: 2448219
Power consumption (max)
6 W
Antenna type
Omni-directional antenna
Antenna connector type
N-type
Connector gender
Female
Polarization
Circular polarization
Voltage Standing Wave Ratio (VSWR)
1.4:1
Product colour
Black
Mounting
Ceiling/wall
Comsys Price
$550.84
Save $23.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $137.71 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
MOTOROLA ANTENNA:SLIM RFID 10.8 X 8.4 EU
The AN610 is space-saving and stylish. The outer housing is designed to be sleek and discreet enough to be at home in any business setting but rugged enough for indoor industrial environments.
Easy to Mount
The AN610 features a simple, integrated mounting system. It stands just under one-half inch (12mm) from horizontal or vertical mounting surfaces.
Stylish Space Saver
The outer shell is sleek and discreet for any business setting but rugged enough for indoor industrial areas.
Suited For All Areas
The AN610 antenna is suited for use in wall mount, doorways, under counter, above counter as an RFID pad, on shelves, POS or end-cap displays like jewelry counter applications.
Easy to Mount
The AN610 features a simple, integrated mounting system. It stands just under one-half inch (12mm) from horizontal or vertical mounting surfaces.
Stylish Space Saver
The outer shell is sleek and discreet for any business setting but rugged enough for indoor industrial areas.
Suited For All Areas
The AN610 antenna is suited for use in wall mount, doorways, under counter, above counter as an RFID pad, on shelves, POS or end-cap displays like jewelry counter applications.
Key features
- Frequency band: 0.864 - 0.868 GHz
- Antenna gain level (max): 1 dBi
- Antenna type: Omni-directional antenna
- Antenna connector type: N-type
- Connector gender: Female
- Polarization: Circular polarization
- Voltage Standing Wave Ratio (VSWR): 1.4:1
- Product colour: Black
- Mounting: Ceiling/wall
- Purpose: Indoor & outdoor
- Front to back ratio: 18 dB
- Isolation: 38 dB
- Power consumption (max): 6 W
- Operating temperature (T-T): -30 - 65 °C
- Storage temperature (T-T): -40 - 70 °C
- Width: 214 mm
- Depth: 12 mm
- Height: 275 mm
- Weight: 600 g
- Quantity per pack: 1 pc(s)
- Harmonized System (HS) code: 85177100
