Motorola AN620-SCL71130EU network antenna N-type 4 dBi
Motorola AN620-SCL71130EU, 4 dBi, 0.902 - 0.928 GHz, 75°, 48°, N-type, Female
Click or hover over image to enlarge
Brand:MOTOROLA
MPN:2426255
Part #: 2426255
Antenna connector type
N-type
Connector gender
Female
Polarization
Circular polarization
Voltage Standing Wave Ratio (VSWR)
1.4:1
Product colour
Black, Silver
Mounting
Wall
Purpose
Indoor
Frequency band
0.902 - 0.928 GHz
Comsys Price
$608.34
Save $47.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $152.09 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

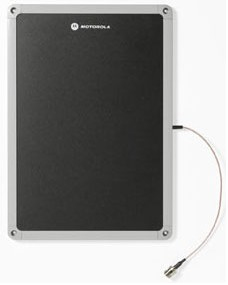

MOTOROLA ANTENNA SLIM RFID
Sleek, rectangular circularly polarized antenna.
Suitable for use in Indoor environments: wall mount, doorways, under counter, above counter as an RFID pad, on shelves, on end-cap displays, POS etc.
- Integrated Mounting Holes.
- Comes with mounting hardware for flat panel mounting.
- Comes with 1ft of pigtail cable, compatible to Motorola standard antenna cables for extension.
Suitable for use in Indoor environments: wall mount, doorways, under counter, above counter as an RFID pad, on shelves, on end-cap displays, POS etc.
- Integrated Mounting Holes.
- Comes with mounting hardware for flat panel mounting.
- Comes with 1ft of pigtail cable, compatible to Motorola standard antenna cables for extension.
Key features
- Frequency band: 0.902 - 0.928 GHz
- Horizontal beam width: 75°
- Vertical beam width: 48°
- Antenna gain level (max): 4 dBi
- Antenna connector type: N-type
- Connector gender: Female
- Polarization: Circular polarization
- Voltage Standing Wave Ratio (VSWR): 1.4:1
- Product colour: Black, Silver
- Mounting: Wall
- Purpose: Indoor
- Certification: TBD
- Operating temperature (T-T): -20 - 55 °C
- Storage temperature (T-T): -30 - 65 °C
- Width: 275 mm
- Depth: 391 mm
- Height: 12 mm
- Weight: 1 kg
- Harmonized System (HS) code: 85177100
