Lenovo ThinkSystem RAID 940-16i RAID controller PCI Express x8 4.0…

Lenovo ThinkSystem RAID 940-16i, SAS, PCI Express x8, 0, 1, 5, 6, 10, 50, 60, JBOD, 12 Gbit/s, 8000 MB, USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS 13438) Japan...

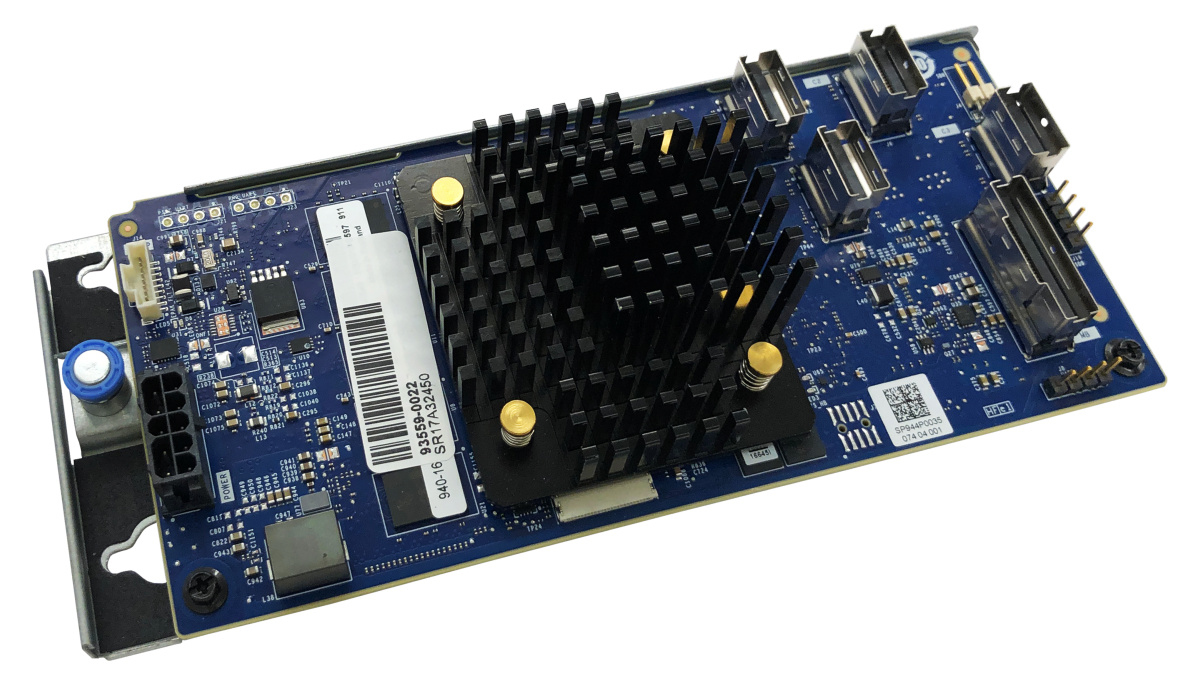

LENOVO THINKSYSTEM RAID 940-16I 8GB FLASH PCIE GEN4 12GB INTERNAL ADAPTER

Click or hover over image to enlarge

Brand:LENOVO
MPN:4Y37A09735

Part #: 4Y37A09735

RAID levels

0, 1, 5, 6, 10, 50, 60, JBOD

RAID Level Migration

Yes

Data transfer rate

12 Gbit/s

SSD support

Yes

Internal memory

8000 MB

Number of devices supported

16

Hot-swap

Yes

Certification

USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS 13438) Japan (VCCI V-3) Australia/New Zealand (AS/NZS CISPR 22) Korea (RRA no 2013-24 & 25) Europe (EN55022/EN55024) Safety: EN/ IEC/ UL 60950 RoHS WEEE

Returns & Warranty

Comsys Price

$5,633.84

Save $464.01 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

LENOVO THINKSYSTEM RAID 940-16I 8GB FLASH PCIE GEN4 12GB INTERNAL ADAPTER

The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.

The RAID 940 Series adapters all have a PCIe 4.0 host interface which doubles the bandwidth between the server and the adapter, compared to the previous generation RAID 930 adapters. This improves overall performance of the storage subsystem by supporting up to 3 million IOPS (JBOD mode) and up to 3 million IOPS in RAID (random reads).

RAID on Chip-based controllers such as the RAID 940 adapters have a dedicated processor that offloads all RAID functions from the server's CPU. With hardware acceleration for RAID 5 and 6 operations plus up to 8 GB dedicated memory for caching, the 940-8i, 16i and 32i offer the ultimate performance for ThinkSystem servers.

Key features

  • Supported storage drive interfaces: SAS
  • Host interface: PCI Express x8
  • PCI Express slots version: 4.0
  • RAID levels: 0, 1, 5, 6, 10, 50, 60, JBOD
  • RAID Level Migration: Yes
  • Data transfer rate: 12 Gbit/s
  • SSD support: Yes
  • Internal memory: 8000 MB
  • Number of devices supported: 16
  • Hot-swap: Yes
  • Certification: USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS 13438) Japan (VCCI V-3) Australia/New Zealand (AS/NZS CISPR 22) Korea (RRA no 2013-24 & 25) Europe (EN55022/EN55024) Safety: EN/ IEC/ UL 60950 RoHS WEEE
  • Compatible products: SR665 (7D2W/7D2V), SR645 (7D2Y/7D2X)
  • Compatible operating systems: Microsoft Windows Server 2016 Microsoft Windows Server 2019 Red Hat Enterprise Linux 8.1 SUSE Linux Enterprise Server 12 SP5 SUSE Linux Enterprise Server 12 SP5 with Xen SUSE Linux Enterprise Server 15 SP1 SUSE Linux Enterprise Server 15 SP1 with Xen VMware vSphere Hypervisor (ESXi) 6.7 U3 VMware vSphere Hypervisor (ESXi) 7.0
  • Operating temperature (T-T): 10 - 55 °C
  • Operating relative humidity (H-H): 20 - 80%
  • Storage relative humidity (H-H): 5 - 95%
  • Harmonized System (HS) code: 84733080
