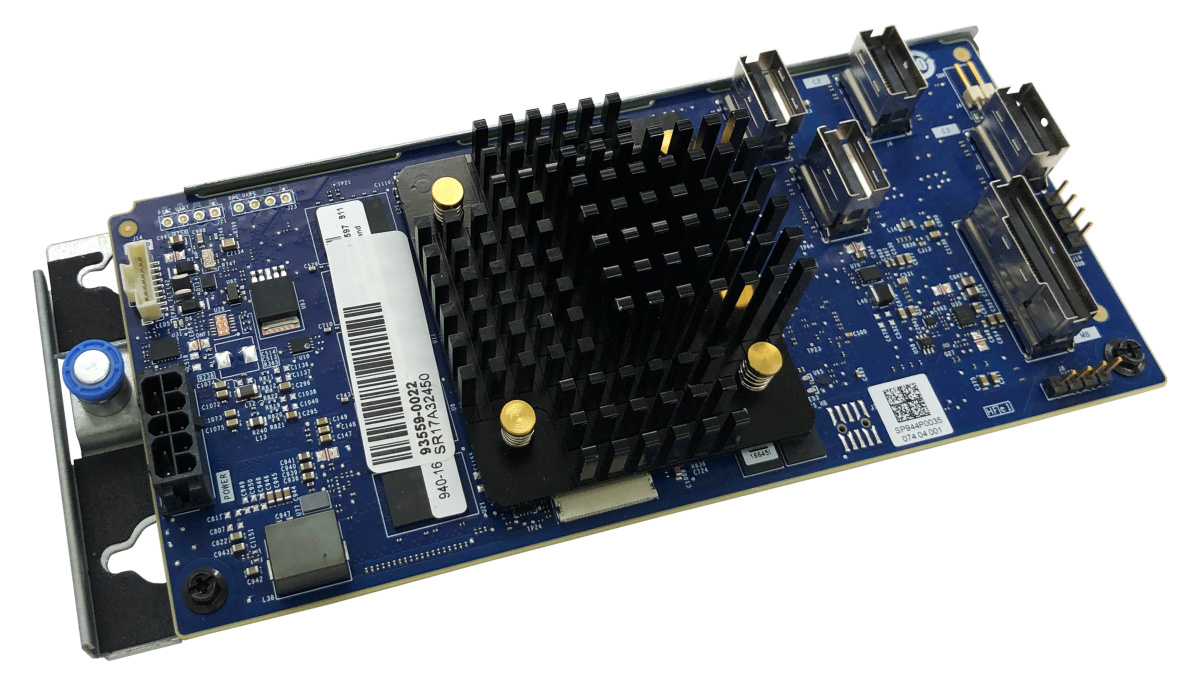

Lenovo 4Y37A09730 RAID controller PCI Express x8 4.0 12 Gbit/s
Lenovo 4Y37A09730, SAS, Serial ATA, PCI Express x8, 0, 1, 5, 6, 10, 50, 60, 12 Gbit/s, Low Profile PCIe, 8000 MB
Click or hover over image to enlarge
Brand:LENOVO
MPN:4Y37A09730
Part #: 4Y37A09730
RAID levels
0, 1, 5, 6, 10, 50, 60
Data transfer rate
12 Gbit/s
Form factor
Low Profile PCIe
SSD support
Yes
Internal memory
8000 MB
Chipset
Broadcom SAS3916
JBOD function
Yes
S.M.A.R.T. support
Yes
Comsys Price
$5,640.74
Save $464.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

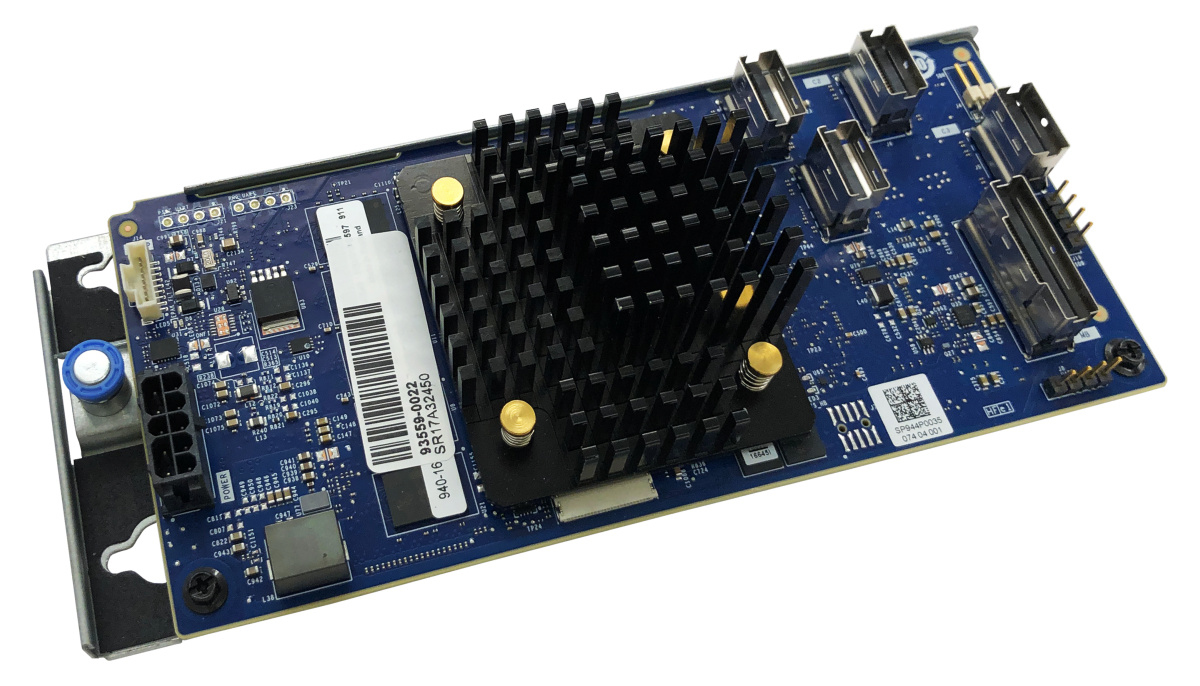

LENOVO THINKSYSTEM RAID 940-16I 8GB FLASH PCIE GEN4 12GB ADAPTER
The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the ThinkSystem RAID 940-8i, 16i and 32i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Change History
Changes in the March 9, 2021 update:
- The adapters now support Tri-Mode, which allows U.3 NVMe drives to be connected - Features section
- The server support tables are now automatically updated (change history may not be updated) - Server support section
Introduction
The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) server adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the ThinkSystem RAID 940-8i, 16i and 32i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Change History
Changes in the March 9, 2021 update:
- The adapters now support Tri-Mode, which allows U.3 NVMe drives to be connected - Features section
- The server support tables are now automatically updated (change history may not be updated) - Server support section
Introduction
The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) server adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
Key features
- Supported storage drive interfaces: SAS, Serial ATA
- Host interface: PCI Express x8
- PCI Express slots version: 4.0
- Internal SAS ports: 16
- RAID levels: 0, 1, 5, 6, 10, 50, 60
- Data transfer rate: 12 Gbit/s
- Form factor: Low Profile PCIe
- SSD support: Yes
- Internal memory: 8000 MB
- Chipset: Broadcom SAS3916
- JBOD function: Yes
- S.M.A.R.T. support: Yes
- Number of devices supported: 16
- Linux operating systems supported: Yes
- Harmonized System (HS) code: 84733080
