Lenovo Broadcom 5719 Internal Ethernet 1000 Mbit/s
Lenovo Broadcom 5719, Internal, Wired, PCI Express, Ethernet, 1000 Mbit/s, Green, Stainless steel
Click or hover over image to enlarge
Part #: 4XC7A08235
Component for
Server
Product colour
Green, Stainless steel
Internal
Yes
Certification
EN55022, EN55024, EN60950 / CE, EN 61000-3-2, EN 61000-3-3, ICES-003, Issue-004, IEC 950 CB Scheme, FCC 47 CFR Part 15 Class A, UL 1950, CSA C22.2 950-95, VCCI, AS/NZSCISPR 22 / C-tick, RRL for KC, BSMI, UL 94-/V
Compatible products
R635 (7Y98 / 7Y99), R655 (7Y00 / 7Z01)
Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Ethernet LAN
Yes
Comsys Price
Save $27.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Four payments of $79.06 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

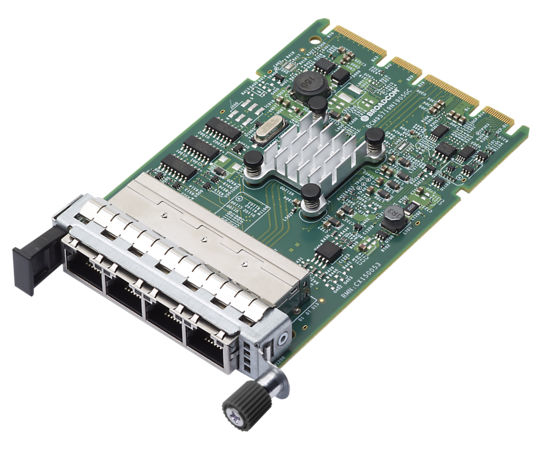

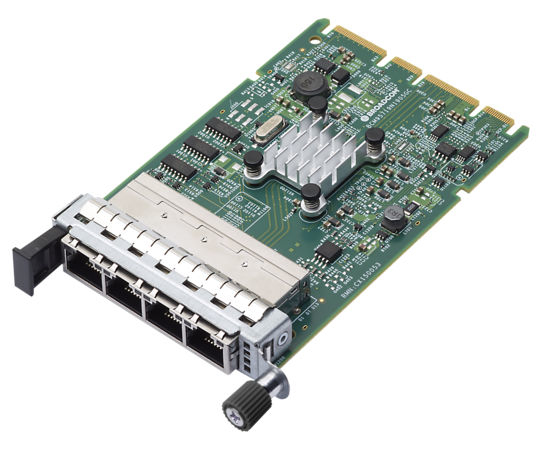

LENOVO THINKSYSTEM BROADCOM 5719 1GBE RJ45 4-PORT OCP ETHERNET ADAPTER
This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Key features
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 4
- PCI version: 2.0
- Maximum data transfer rate: 1000 Mbit/s
- Networking standards: IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Wake-on-LAN ready: Yes
- LAN controller: Broadcom BCM5719
- Component for: Server
- Product colour: Green, Stainless steel
- Internal: Yes
- Certification: EN55022, EN55024, EN60950 / CE, EN 61000-3-2, EN 61000-3-3, ICES-003, Issue-004, IEC 950 CB Scheme, FCC 47 CFR Part 15 Class A, UL 1950, CSA C22.2 950-95, VCCI, AS/NZSCISPR 22 / C-tick, RRL for KC, BSMI, UL 94-/V
- Compatible products: R635 (7Y98 / 7Y99), R655 (7Y00 / 7Z01)
- Compatible operating systems: Microsoft Windows Server version 1709, Microsoft Windows Server version 1803, Red Hat Enterprise Linux 6.10, Red Hat Enterprise Linux 6.9, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 7.4, Red Hat Enterprise Linux 7.5, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 8.0, SUSE Linux Enterprise Server 12 SP2, SUSE Linux Enterprise Server 12 SP2 with Xen, SUSE Linux Enterprise Server 12 SP3, SUSE Linux Enterprise Server 12 SP3 with Xen, SUSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 15, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP1 with Xen, SUSE Linux Enterprise Server 15 with Xen, VMware vSphere Hypervisor (ESXi) 6.0 U3, VMware vSphere Hypervisor (ESXi) 6.5, VMware vSphere Hypervisor (ESXi) 6.5 U1, VMware vSphere Hypervisor (ESXi) 6.5 U2, VMware vSphere Hypervisor (ESXi) 6.5 U3, VMware vSphere Hypervisor (ESXi) 6.7, VMware vSphere Hypervisor (ESXi) 6.7 U1, VMware vSphere Hypervisor (ESXi) 6.7 U2, VMware vSphere Hypervisor (ESXi) 6.7 U3
- Server operating systems supported: SUSE Linux Enterprise Server 12, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Operating temperature (T-T): 10 - 35 °C
- Operating relative humidity (H-H): 20 - 80%
- Width: 69 mm
- Depth: 132 mm
- Height: 19 mm
- Compliance certificates: RoHS
- Harmonized System (HS) code: 85176990
- Minimum operating temperature: 10 °C
- Maximum operating temperature: 35 °C
- Flow control support: Yes
