Kingston Technology KSM56R46BD4PMI-96MBI memory module 96 GB 1 x 96…

Kingston Technology KSM56R46BD4PMI-96MBI, 96 GB, 1 x 96 GB, DDR5, 288-pin DIMM

KINGSTON 96GB DDR5-5600MT/s ECC Reg CL46 DIMM 2Rx

Click or hover over image to enlarge

Brand:KINGSTON
MPN:6074092

Part #: 6074092

On-Die ECC

Yes

CAS latency

46

Internal memory

96 GB

Memory layout (modules x size)

1 x 96 GB

Internal memory type

DDR5

Memory data transfer rate

5600 MT/s

Component for

PC/Server

Memory form factor

288-pin DIMM

Returns & Warranty

Comsys Price

$7,363.44

Save $960.00 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

KINGSTON 96GB DDR5-5600MT/s ECC Reg CL46 DIMM 2Rx

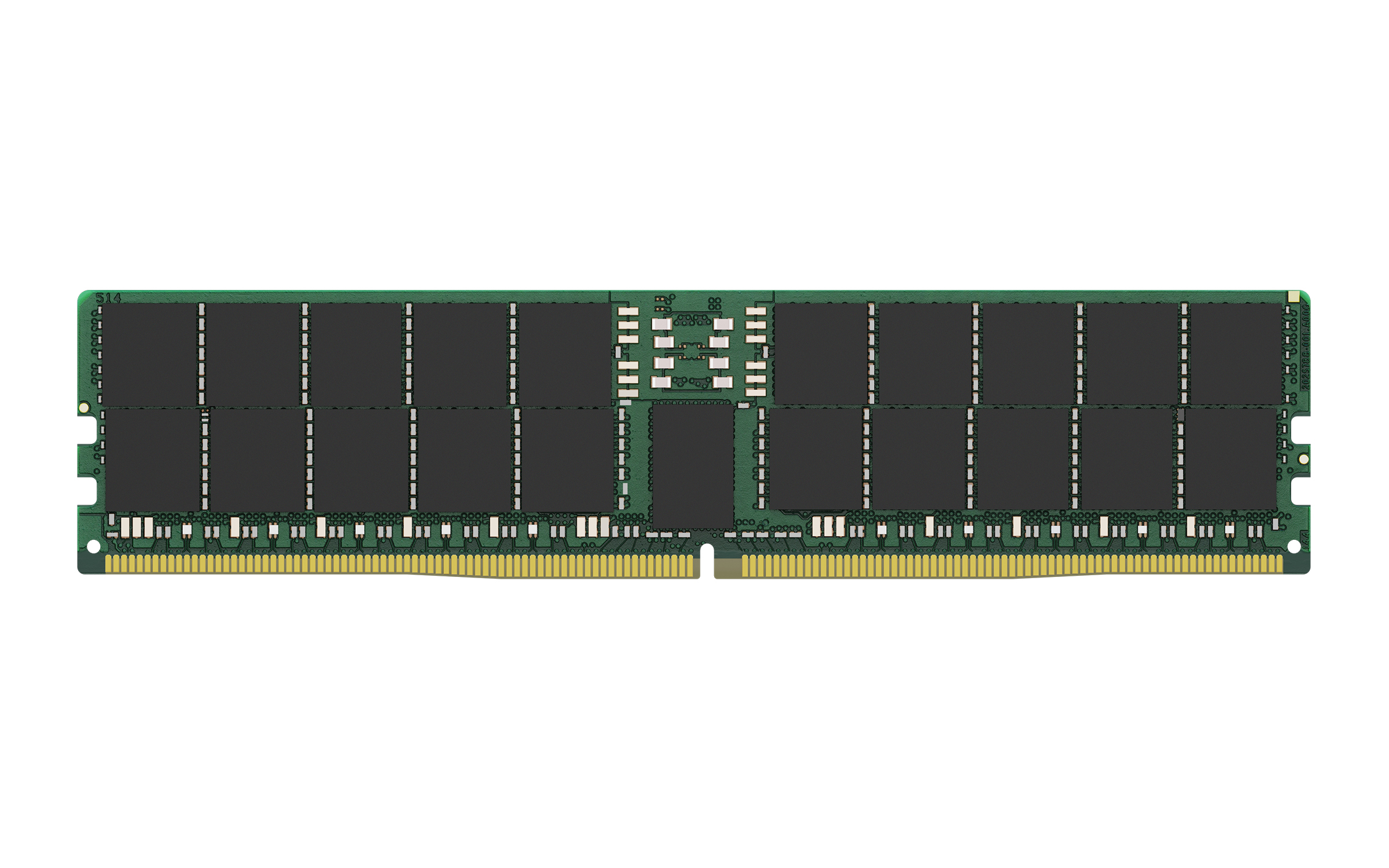

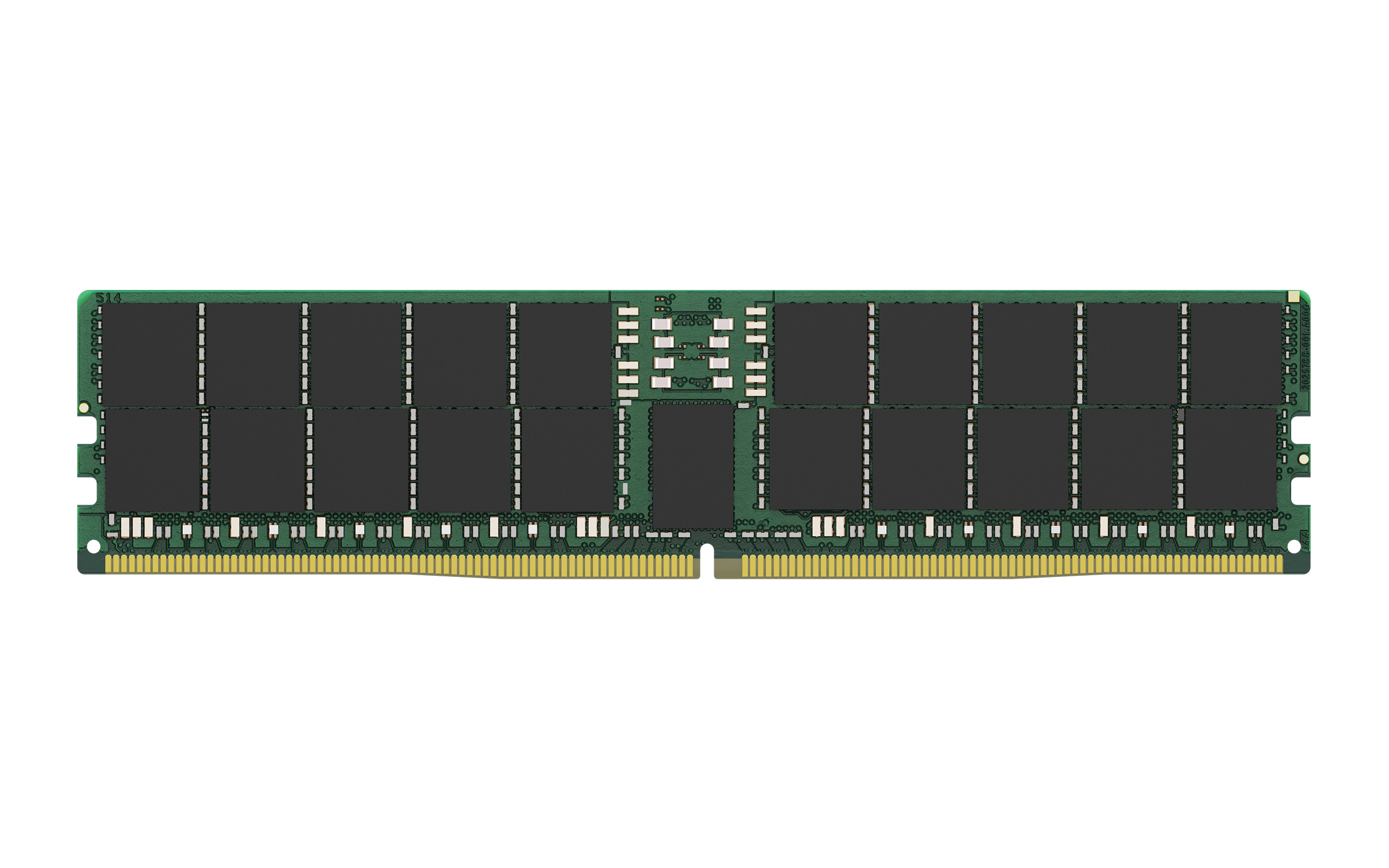

Kingston's KSM56R46BD4PMI-96MBI is a 12G x 80-bit (96GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Key features

  • On-Die ECC: Yes
  • CAS latency: 46
  • Internal memory: 96 GB
  • Memory layout (modules x size): 1 x 96 GB
  • Internal memory type: DDR5
  • Memory data transfer rate: 5600 MT/s
  • Component for: PC/Server
  • Memory form factor: 288-pin DIMM
  • ECC: Yes
  • Buffered memory type: Registered (buffered)
  • Memory ranking: 2
  • Memory voltage: 1.1 V
  • Module configuration: 12288M x 80
  • Row cycle time: 48 ns
  • Refresh row cycle time: 295 ns
  • Row active time: 32 ns
  • SPD profile: Yes
  • Programming power voltage (VPP): 1.8 V
  • Lead plating: Gold
  • Backlight: No
  • JEDEC standard: Yes
  • Operating temperature (T-T): 0 - 95 °C
  • Storage temperature (T-T): -55 - 100 °C
  • Sustainability compliance: Yes
  • Compliance certificates: RoHS
  • Width: 133.3 mm
  • Height: 31.2 mm
  • Doesn't contain: Halogen
