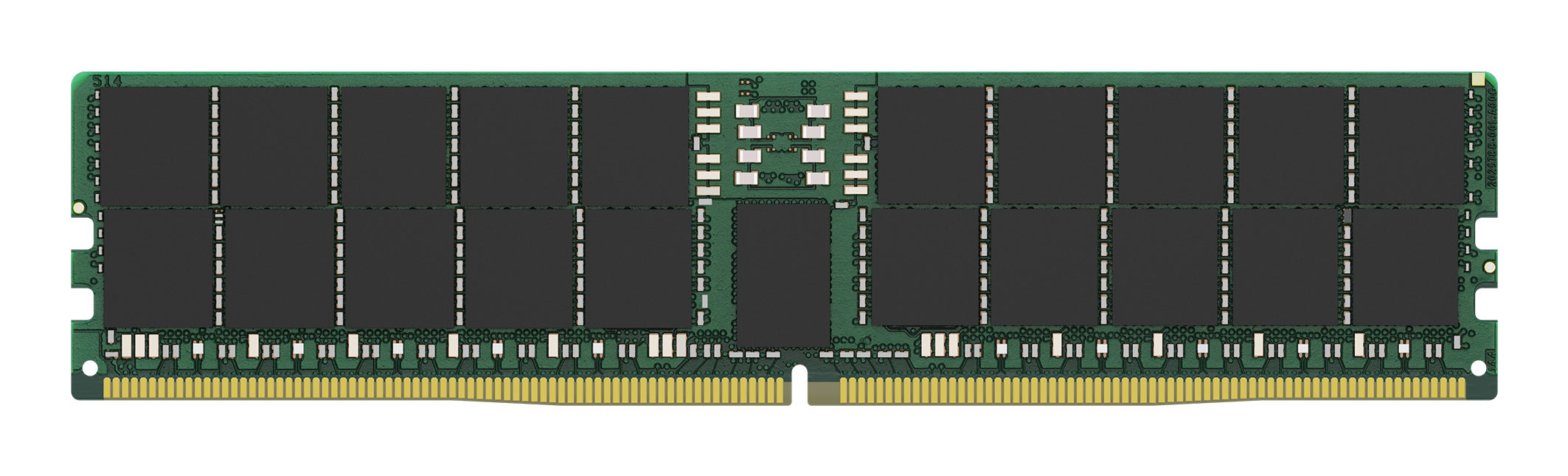

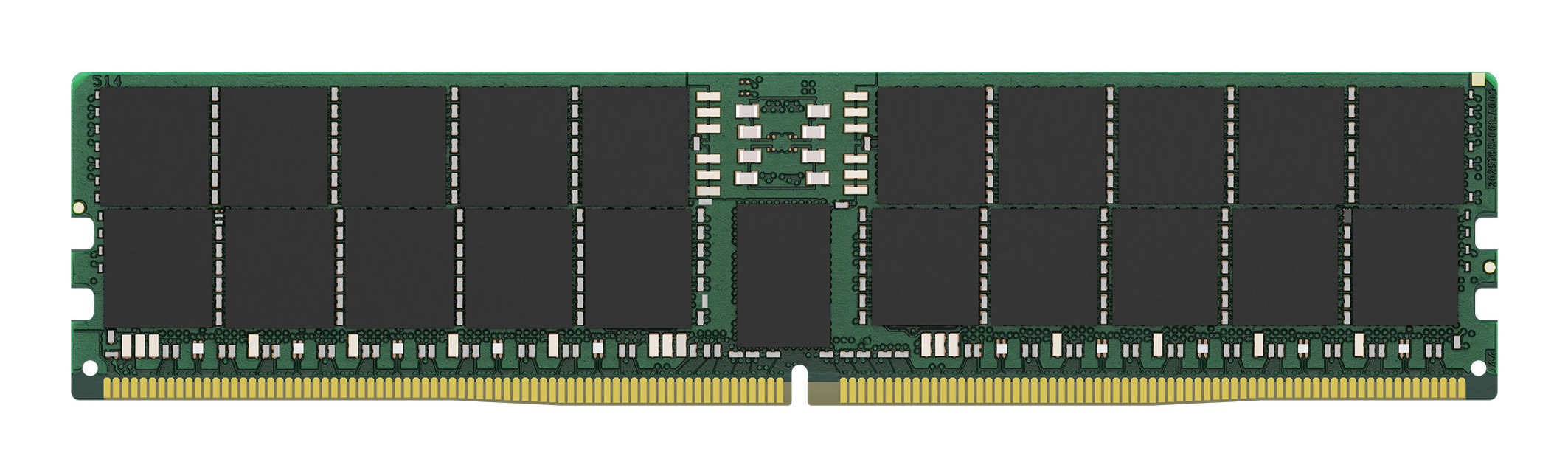

Kingston Technology 64GB DDR5 6400MT/s ECC Registered DIMM
Kingston Technology 64GB DDR5 6400MT/s ECC Registered DIMM, 16 GB, 1 x 16 GB, DDR5, 288-pin DIMM
Click or hover over image to enlarge
Brand:KINGSTON
MPN:6684912
Part #: 6684912
On-Die ECC
No
CAS latency
52
Internal memory
16 GB
Memory layout (modules x size)
1 x 16 GB
Internal memory type
DDR5
Memory data transfer rate
6400 MT/s
Component for
Server
Memory form factor
288-pin DIMM
Comsys Price
$4,694.29
Save $367.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
KINGSTON 64GB 6400MT/s DDR5 ECC Reg CL52 DIMM 2Rx
Kingston's KSM64R52BD4-64MD is a 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Key features
- On-Die ECC: No
- CAS latency: 52
- Internal memory: 16 GB
- Memory layout (modules x size): 1 x 16 GB
- Internal memory type: DDR5
- Memory data transfer rate: 6400 MT/s
- Component for: Server
- Memory form factor: 288-pin DIMM
- ECC: Yes
- Buffered memory type: Registered (buffered)
- Memory ranking: 1
- Memory voltage: 1.1 V
- Row cycle time: 48 ns
- Refresh row cycle time: 295 ns
- Row active time: 32 ns
- Row Precharge Time (TRP): 16
- SPD profile: Yes
- Programming power voltage (VPP): 1.8 V
- Lead plating: Gold
- JEDEC standard: Yes
- Operating temperature (T-T): 0 - 95 °C
- Storage temperature (T-T): -55 - 100 °C
- Compliance certificates: RoHS
- Width: 133.3 mm
- Height: 31.2 mm
- Chips organisation: 1Rx8
- Doesn't contain: Halogen
