Kingston Technology KSM32ED8/32HD memory module 32 GB 1 x 32 GB DDR4…
Kingston Technology KSM32ED8/32HD, 32 GB, 1 x 32 GB, DDR4, 288-pin DIMM
Click or hover over image to enlarge
Brand:KINGSTON
MPN:6509188
Part #: 6509188
CAS latency
22
Internal memory
32 GB
Memory layout (modules x size)
1 x 32 GB
Internal memory type
DDR4
Memory data transfer rate
3200 MT/s
Component for
Server
Memory form factor
288-pin DIMM
ECC
Yes
Comsys Price
$1,146.54
Save $137.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $286.64 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
KINGSTON 32GB 3200MT/s DDR4 ECC CL22 DIMM 2Rx8 Hy

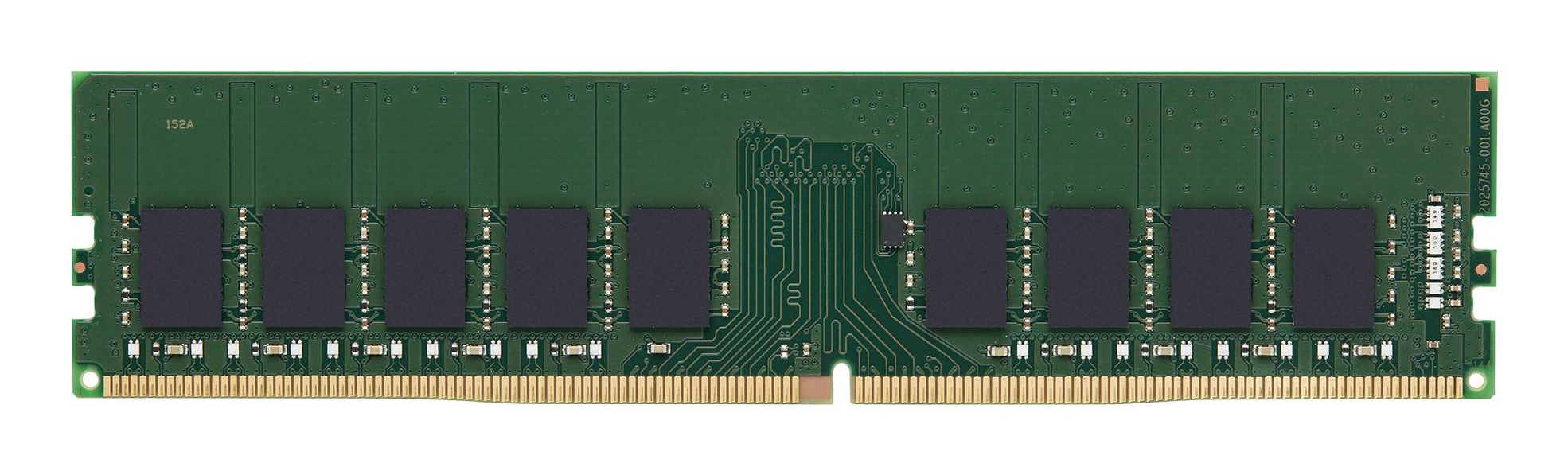

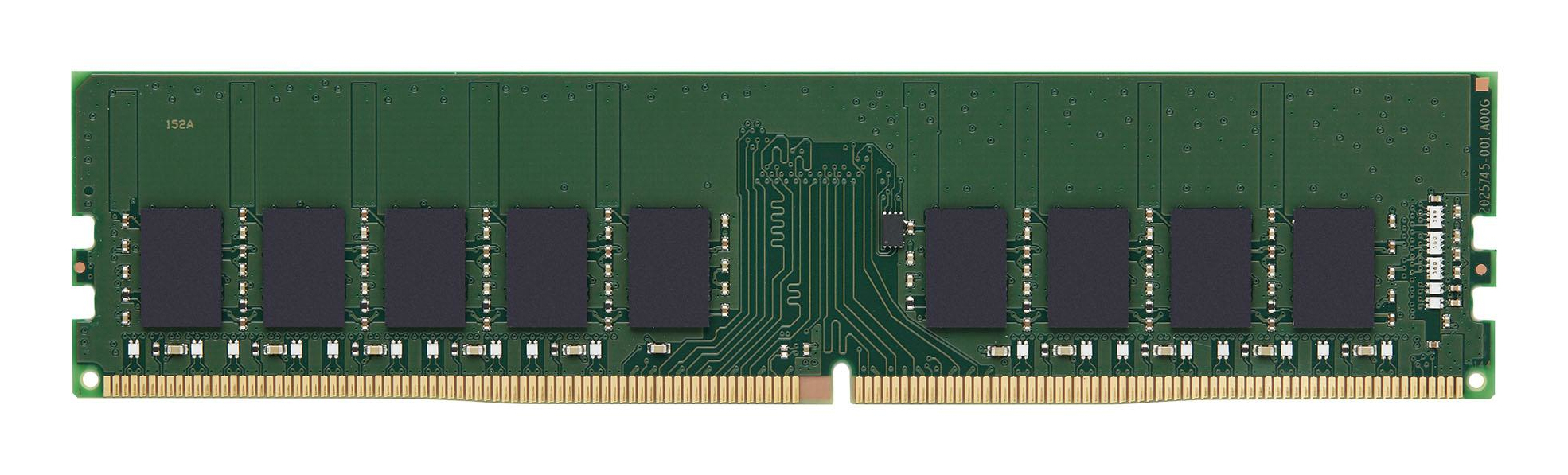

Kingston's KSM32ED8/32HD is a 2G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Key features
- CAS latency: 22
- Internal memory: 32 GB
- Memory layout (modules x size): 1 x 32 GB
- Internal memory type: DDR4
- Memory data transfer rate: 3200 MT/s
- Component for: Server
- Memory form factor: 288-pin DIMM
- ECC: Yes
- Memory channels: Dual-channel
- Buffered memory type: Unregistered (unbuffered)
- Memory ranking: 2
- Memory voltage: 1.2 V
- Module configuration: 2048M x 72
- Row cycle time: 45.75 ns
- Row active time: 32 ns
- SPD profile: Yes
- Programming power voltage (VPP): 2.5 V
- JEDEC standard: Yes
- Operating temperature (T-T): 0 - 85 °C
- Storage temperature (T-T): -55 - 100 °C
- Compliance certificates: RoHS
- Width: 133.3 mm
- Height: 31.2 mm
