Kingston Technology 240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD…

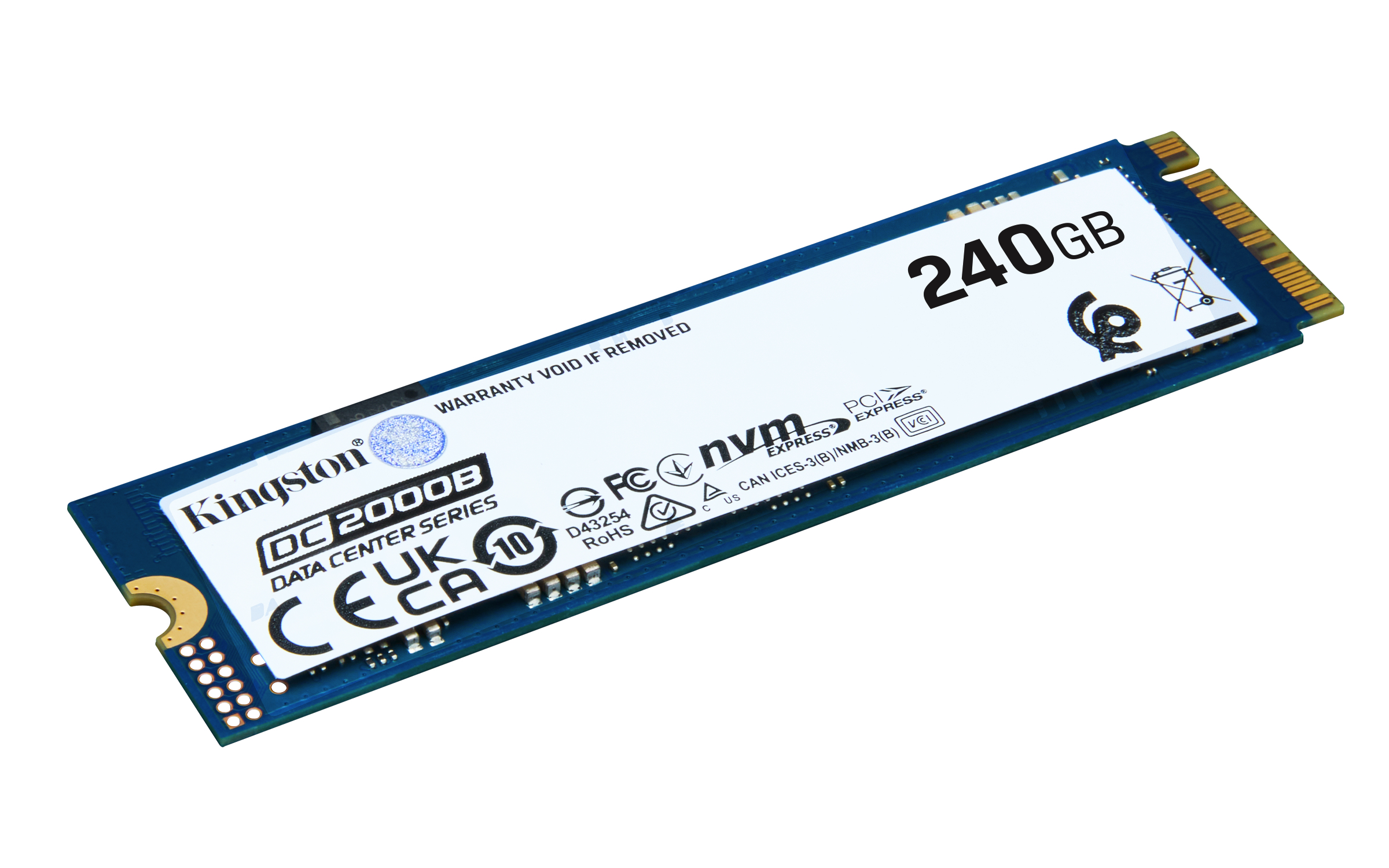

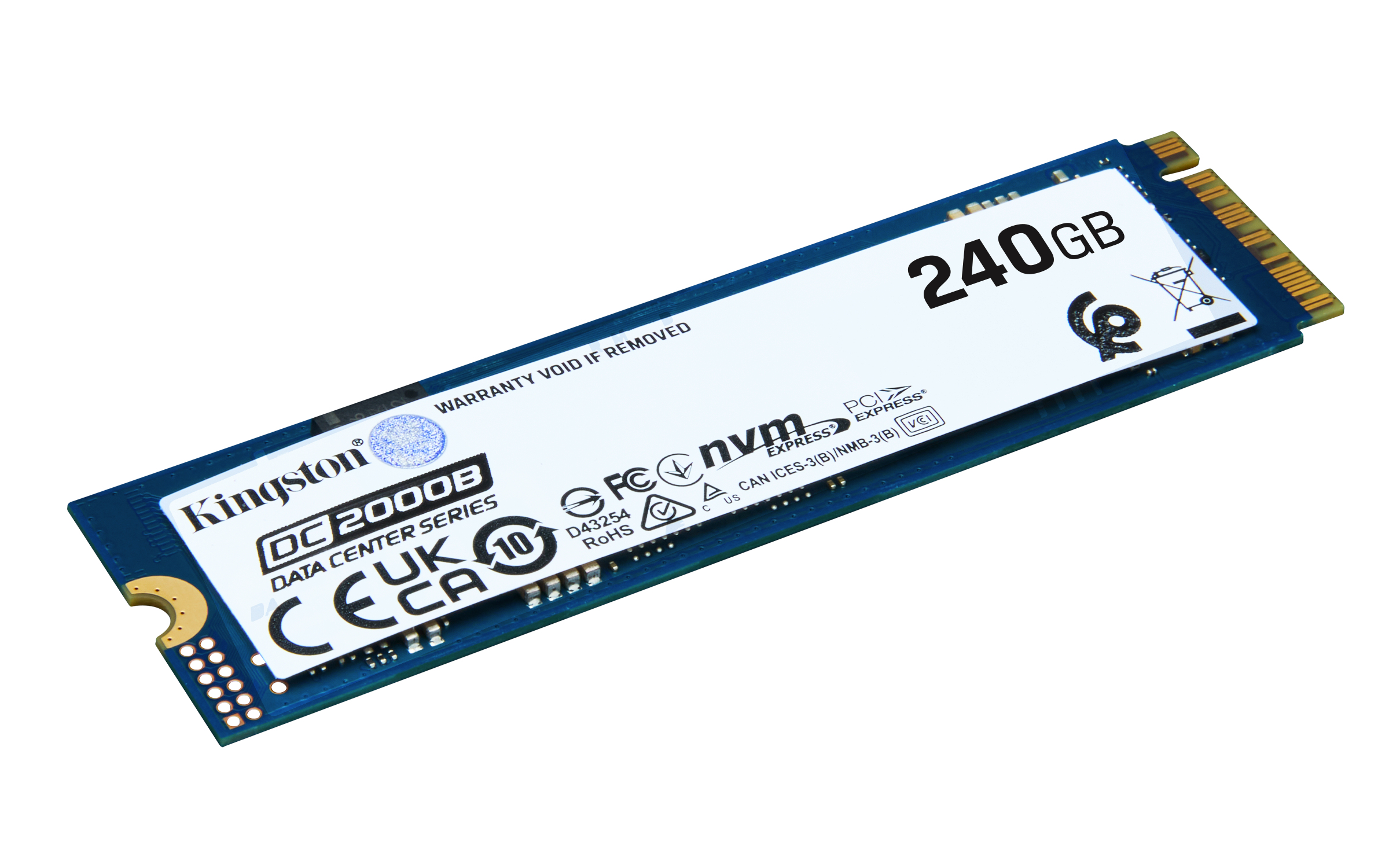

Kingston Technology 240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD (Non-Heatsink), 240 GB, M.2, 4500 MB/s
Click or hover over image to enlarge
Part #: 6606780
Power consumption (read)
3.01 W
Power consumption (write)
4.09 W
Average power consumption (read)
2.97 W
Average power consumption (write)
4.02 W
SSD capacity
240 GB
SSD form factor
M.2
Interface
PCI Express 4.0
NVMe
Yes
Comsys Price
Save $319.01 off RRP
Out of Stock
Contact us for ETA or alternatives
Four payments of $178.25 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
KINGSTON 240G DC2000B PCIE 4.0 M.2 2280 ENT SSD
Kingston’s DC2000B SSD is a high-performance boot drive designed for data centers using the latest Gen 4x4 PCIe interface with 3D TLC NAND. With low latency, IOPS consistency and hardware-based power loss protection, it ensures reliability and efficiency. Available in capacities of up to 960GB, it's ideal for enterprise server boot and caching applications.
Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using a Gen 4x4 PCIe controller and 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a 5-year warranty."
PCIe 4.0 NVMe performance
Utilises PCIe Gen 4x4 lanes for high-performance speeds.
On-board power loss protection (PLP)
Reduce the possibility of data loss and/or corruption due to unexpected power-off.
Low latency and IOPS consistency
Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads.
Designed for data center environments
Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.
Key features
- SSD capacity: 240 GB
- SSD form factor: M.2
- Interface: PCI Express 4.0
- NVMe: Yes
- Memory type: 3D TLC
- Component for: Server
- M.2 SSD size: 2280 (22 x 80 mm)
- Read speed: 4500 MB/s
- Write speed: 400 MB/s
- Random read (4KB): 260000 IOPS
- Random write (4KB): 18000 IOPS
- Read latency: 70 µs
- Write latency: 53 µs
- PCI Express interface data lanes: x4
- S.M.A.R.T. support: Yes
- H/W PLP function: Yes
- Mean time between failures (MTBF): 2000000 h
- Drive writes per day (DWPD): 0.4
- TBW rating: 175
- Power consumption (read): 3.01 W
- Power consumption (write): 4.09 W
- Average power consumption (read): 2.97 W
- Average power consumption (write): 4.02 W
- Width: 22 mm
- Depth: 80 mm
- Height: 3.5 mm
- Weight: 9 g
- Package width: 129.5 mm
- Package depth: 8.38 mm
- Package height: 184.2 mm
+ 10 more — see the Specifications tab.
