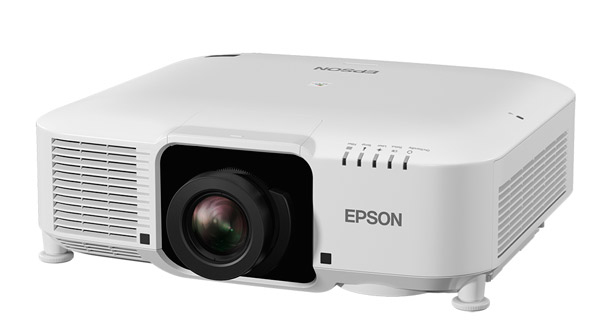

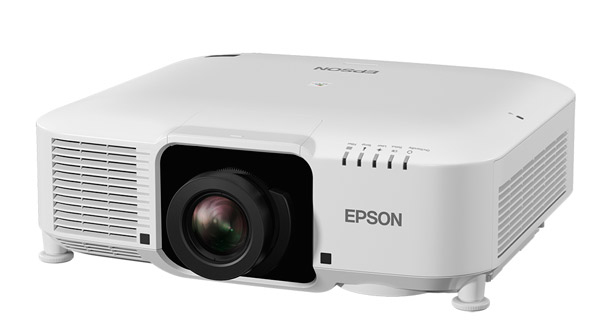

Epson EB-PU1008WNL Projector module 8500 ANSI lumens 3LCD WUXGA…

HIGH IMAGE QUALITY
3LCD Technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.

Up to 3x Brighter Colours with Epson Projectors
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a trade-off between white and colour brightness.

In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.

Laser Light Source
Experience astonishing quality and reliability with Epson’s new laser light source. The newly designed laser light source and advanced electrostatic filter deliver 20,000 hours of maintenance-free use and consistent performance for total peace of mind during important presentations

Up to 8,500 Lumens
Powered by 3LCD technology and Epson’s laser optical engine, the EB-PU1008W is capable of producing White Light and Colour Light Output of up to 8,500 lumens in WUXGA resolution, delivering captivating images in virtually any venue.
The laser light source also lets you take control of brightness with precise adjustment in increments of 1% and a constant brightness mode that maintains brightness at a specified level

4K Enhancement
The EB-PU1008W delivers high-precision images with 4K Enhancement (4KE) technology. Upscale 1080p content with 4KE, which shifts pixels diagonally by 0.5 pixels to double the resolution, for crisp and high-definition images.

Deep Black Contrast
The EB-PU1008W delivers deep black contrast ratios up to 2,500,000:1. With Epson’s innovative laser light source, you get remarkably high contrast levels during full-black scenes. A special optical device is used to adjust polarization and reproduce truly dark shades of black for projection venues that require the most deep black such as theaters.

High Dynamic Range
The EB-PU1008W supports HDR10 and Hybrid Log-Gamma, which expands dynamic range for image output across a broad tonal range and minimises washed-out highlights or excessive shadow in dark areas.

Scene adaptive gamma correction
Gamma level is adjusted automatically according to the content image frame-by-frame, projecting the optimum contrast level. By controlling crushed blacks in dark scenes and clipped whites in bright scenes, images can be displayed in the most natural and life-like manner.

Powerful and Compact
The EB-PU1008W can deliver up to 8,500 lumens of brightness in a compact size*. Approximately 25% smaller and lighter than Epson’s L series projectors, transporting and setup process has become much easier, and loading weight has become much lighter when projectors get shipped to shows and events.

Powered Lens Shift, Zoom and Focus
The motorised lens shift covers a wide range, giving you a great deal of flexibility when installing the projector. A newly adopted stepping motor lets you make highly precise adjustments when employing edge blending, stacking and other techniques. Adjustments can be made via remote control or over a network, enhancing usability even for ceiling-mounted projectors.

Multi-directional Projection
The EB-PU1008W can be rotated 360° in any direction — horizontally, vertically and diagonally — ideal for a wide range of applications, such as ceiling or floor projection.

Lens Position Memory
Up to 10 settings can be stored in the projector memory, including shift positions, focus and projection sizes.

Scaling
Make the most of the image content’s native aspect ratio using a scaling feature built-in to the EB-PU1008W. Without requiring a supercomputer, source content from a splitter output can be recombined automatically using the scaling feature of two projectors.

Incredible HDBaseT and Diverse Connectivity
Connect with virtually any system including HDBaseT, SDI, DVI-D, HDMI, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands up to 100 meters to accommodate large venues. No need for additional cables, signal repeaters or added labour

NFC Technology
Shorten kitting time with Epson Projector Config Tool App* & NFC function. Customisation of settings of the EB-PU1008W projector can be done up to 100 units as a batch. Specifically designed for rental and stage, SI and IT managers, the projector’s inventory data can be easily checked and collected instantaneously by simply tapping with a mobile phone without having to turn on the projector.

Edge Blending
Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.

Point Correction
Make smooth adjustments of distorted projection images by shifting each of the points laid out on the grid pattern.

Arc Correction
Using arc correction, you can adjust each side of a projected image in an arch or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.

Colour Uniformity
Keep images consistent and maintain images that have become uneven over time between multiple projectors with manual colour correction function.

Corner Wall and Curved Surface Projection
Quickly and precisely correct any vertical or horizontal image distortion with Epson’s curved surface and corner wall projection. These features allow for greater flexibility when choosing a projection surface. Enhance your viewers experience by projecting your content in a unique environment with ease.

Content Playback
The EB-PU1008W projector has an in-built content playback feature, allowing you to save videos and photos to USB flash memory and project them instantly without the need for a PC. Epson’s dedicated software for digital signage applications complements the embedded feature for a cost-effective solution.

Epson Projector Professional Tool
Setup multiple projectors straight out of the box with new large venue application software. Epson Professional tool allows you to adjust and control images projected on a network with high-end projector setup features such as colour uniformity calibration, geometry correction, image layout adjustment, lens control and edge blending. Exclusively bundled to Epson laser projectors, large scale presenting has become much easier and flexible with automation.

Epson Projector Professional Tool x ELPEC01 support
Pair an ELPEC01 external camera with an EB-PU1008W projector to enable automation for geometry correction and screen matching. Powered by Epson Projector Professional Tool software, the set up for tiling and stacking of multiple projectors is quicker and easier than ever before.

Epson Projector Config Tool App
Exclusively available with the EB-PU10080W, Epson Projector Config Tool App* can save time on communication. Powered by NFC technology, projector information can be imported, exported for kitting preparation and confirmation. Installers, SI specialist, end customer, service team, repair team and rental & stage operators can now save time and effort, requiring as little as 7 minutes to collect the data out in the field on an iOS or Android device.

Epson Creative Projection App
With Epson Creative Projection app, you can create original, dazzling content to enliven rooms, product displays, and spaces around you, anytime and anywhere. Available on iOS devices, such as iPhone and iPad, content can be previewed while projecting and editing content at the same time. With extensive preloaded templates, freely arrange and combine materials in the app any way you like. From simply uploading photos and movies from a mobile device to making animated visual effects, instantly make your display content come to life without requiring a PC.

Epson Content Management Software
With Epson Content Management software, you can easily create playlists for signage content from a PC or a laptop. The ability to set schedules and register the shape filter settings gives you advanced control such as synchronised playback.


Key features of the software include:

- Creating playlists
- Adding visual effects
- Setting up remote shortcuts
- Applying custom filters
- Scheduling playlists

DICOM Simulation Mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector's DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.


Collaborative Presenting - iProjection Software
Multiple users can connect simultaneously to one projector using Epson iProjection software which allows you to display four individual PC screens simultaneously over the network (wired or wireless), with up to 50 users connected to the same projector. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens.

Simple control – Epson Projector Management Software
Using arc correction, you can adjust each side of a projected image in an arch or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.

Use features such as Epson Projector Management software to monitor and control projectors, with fleet control across a network or on a web browser to keep track of up to 2,000 projectors. The latest models feature a newly designed OSD Control Pad function that shows a representation of lens conditions on a smart device.
