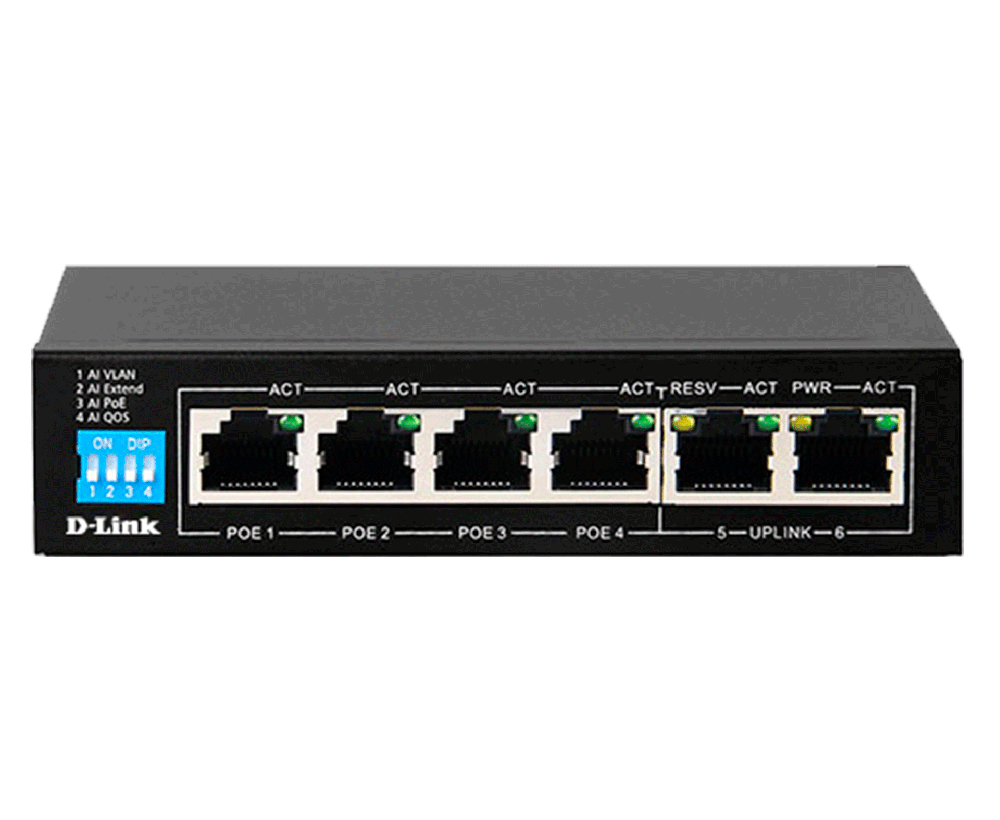

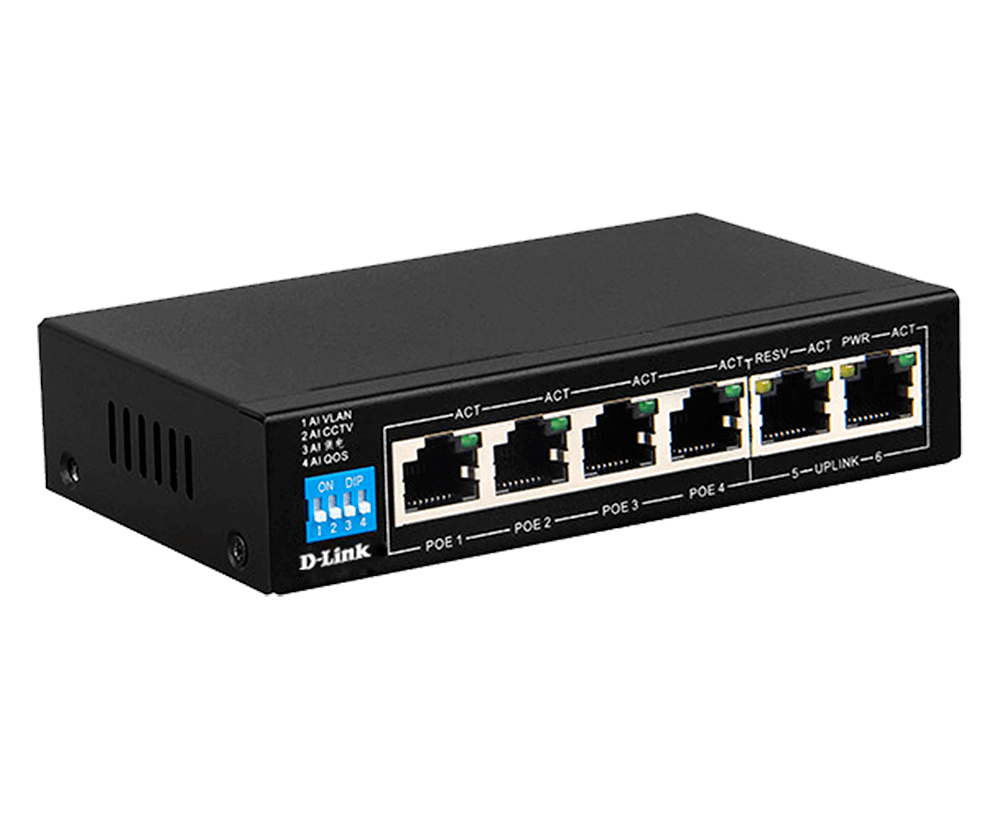

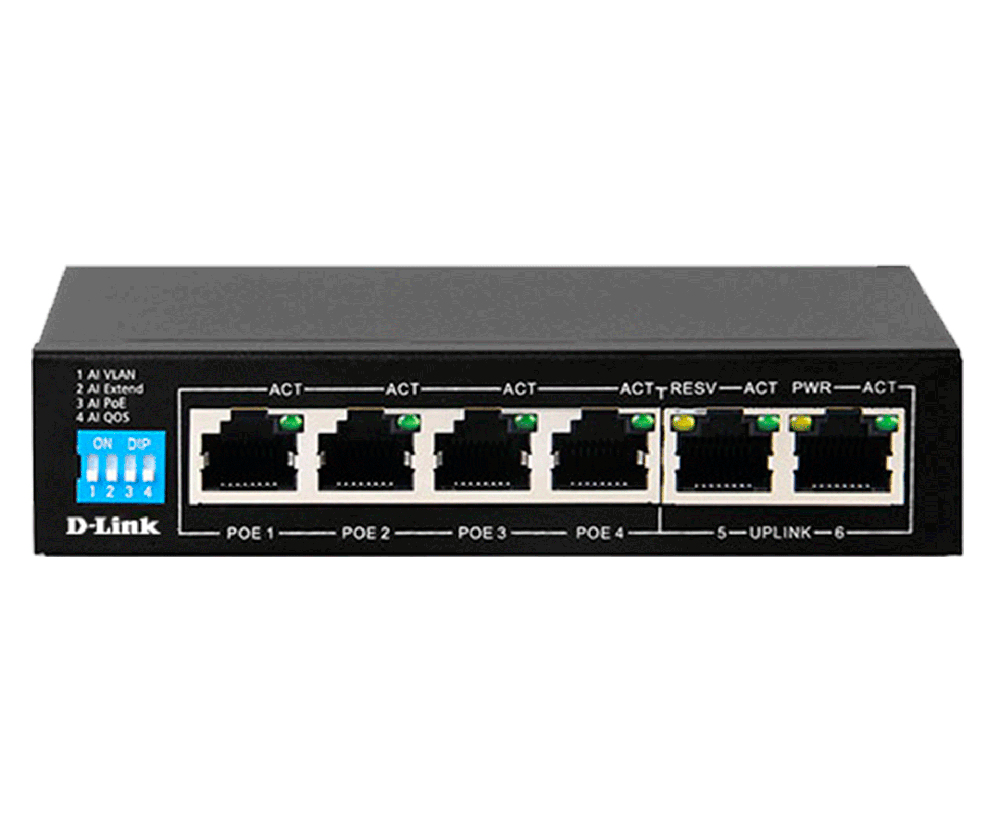

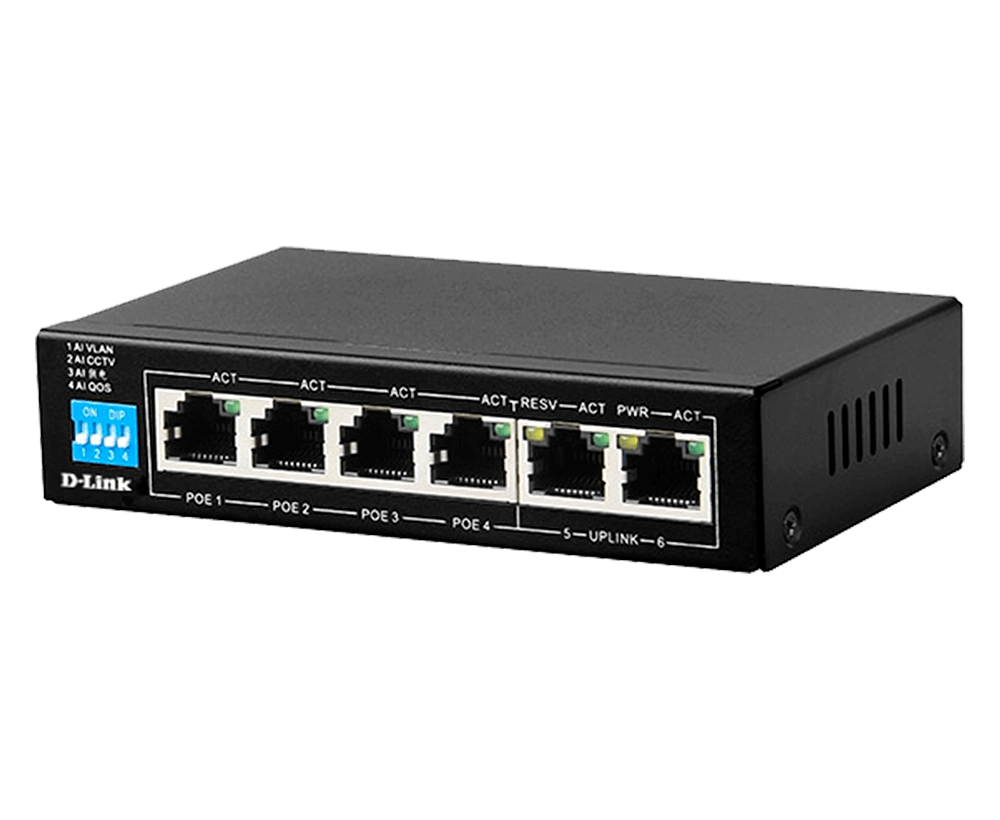

D-LINK DES-F1006P-E PoE Switch
- Brand: D-Link
- Category: Switches
- SKU: DLDESF1006PE
- MPN: DES-F1006P-E
D-Link DES-F1006P-E network switch Unmanaged Fast Ethernet (10/100)…
D-Link DES-F1006P-E, Unmanaged, Fast Ethernet (10/100), Power over Ethernet (PoE)
Click or hover over image to enlarge
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC input voltage
52 V
Rack mounting
No
Product colour
Black
LED indicators
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
No
Comsys Price
Save $24.04 off RRP
Only 2 left in stock
Order soon to avoid backorder
4 payments of $25.59Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 26 Bancroft Crescent, Glendene, Auckland 0602
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
D-LINK DES-F1006P-E PoE Switch
Long-Distance Transmission with Surge Protection
With a connectivity range of 250 meters, the DES-F1006P-E is ideal for surveillance deployments, and compatible with Cat.5e or Cat.6 copper cable, while 6kV surge protection helps this device withstand power fluctuations and lightning strikes.
Easy Deployment and PoE Convenience
The DES-F1006P-E is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. Easily connect multiple computers, share files, music, and video across your SOHO network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving a more reliable connection for all connected devices. The DES-F1006P-E also features four 10/100BASE-TX ports that support the IEEE 802.3af/at Power-over-Ethernet (PoE) protocol, supplying 15W each.
Diverse Operating Modes
The DES-F1006P-E switch has three operating modes. The default mode has a transmission distance of 100 meters. VLAN mode prevents against DHCP deception, broadcast storms, and virus attacks. Extend mode supports an extra-long transmission distance of 250 meters at 10Mbps, and Quality-of-Service (QoS) mode customizes application priorities for uses such as Video.
Key features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
- Basic switching RJ-45 Ethernet ports quantity: 6
- Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
- Fast Ethernet (copper) ports quantity: 6
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Cable types supported: Cat5e, Cat6
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Auto-negotiation: Yes
- VLAN support: Yes
- Forwarding rate: 0.148 Mpps
- Rack mounting: No
- Product colour: Black
- LED indicators: Yes
- Fanless: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- DC input voltage: 52 V
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 4
- Power over Ethernet (PoE) power per port: 15 W
- Total Power over Ethernet (PoE) budget: 60 W
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Width: 125 mm
- Depth: 75 mm
+ 2 more — see the Specifications tab.
