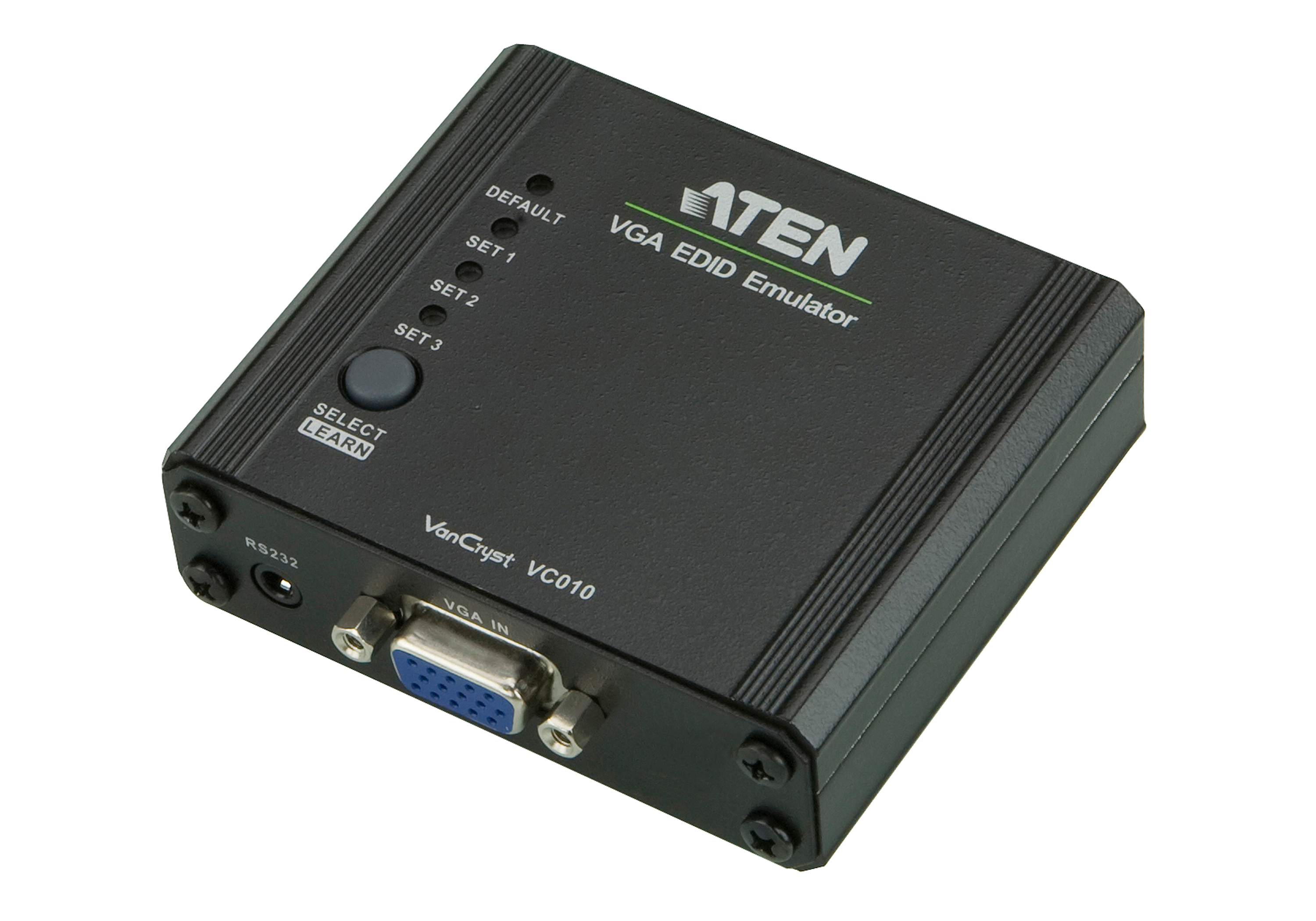

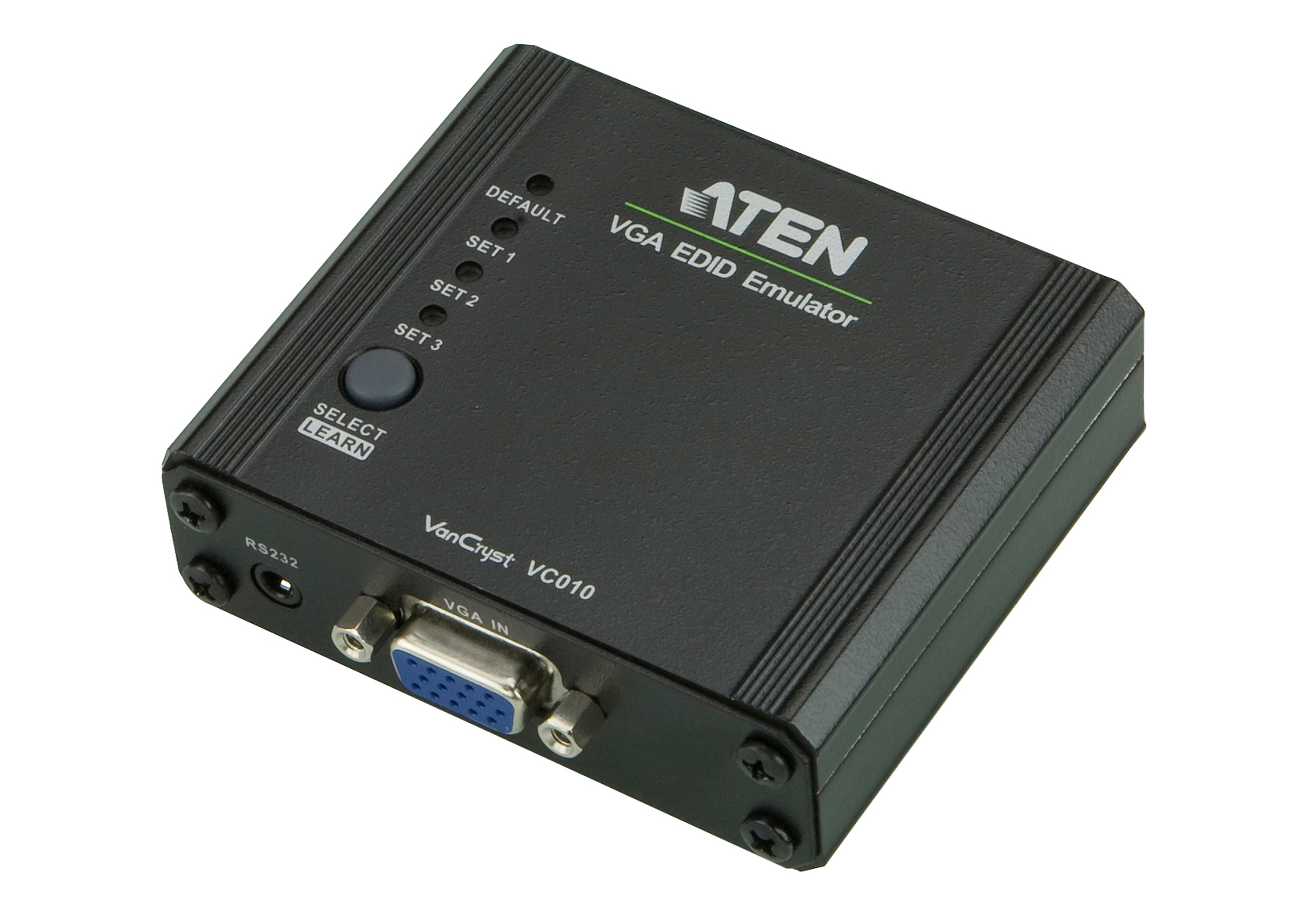

ATEN VGA EDID Emulator 1920 x 1200 pixels
ATEN VGA EDID Emulator, Black, 1920 x 1200 pixels, 1080i, 1080p, 480i, 480p, HDB-15, HDB-15, 0 - 50 °C
Click or hover over image to enlarge
Brand:ATEN
MPN:VC010-AT
Part #: VC010-AT
Maximum video resolution
1920 x 1200 pixels
Supported video modes
1080i, 1080p, 480i, 480p
Product colour
Black
Harmonized System (HS) code
85176990
Host interface
HDB-15
Output interface
HDB-15
Width
79 mm
Depth
77.6 mm
Comsys Price
$124.19
Save $28.86 off RRP
Out of Stock
Contact us for ETA or alternatives
NZ-wide deliveryNZ Post rates·Ships from Auckland, 1–3 days
Four payments of $31.05 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN VGA EDID EMULATOR WITH PROGRAMMER
The ATEN VC010 is a VGA EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a VGA source device to efficiently optimize video resolution.
The ATEN VGA EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.
The ATEN VGA EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.
Key features
- Product colour: Black
- Maximum video resolution: 1920 x 1200 pixels
- Supported video modes: 1080i, 1080p, 480i, 480p
- Host interface: HDB-15
- Output interface: HDB-15
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Width: 79 mm
- Depth: 77.6 mm
- Height: 25.5 mm
- Weight: 150 g
- Harmonized System (HS) code: 85176990
