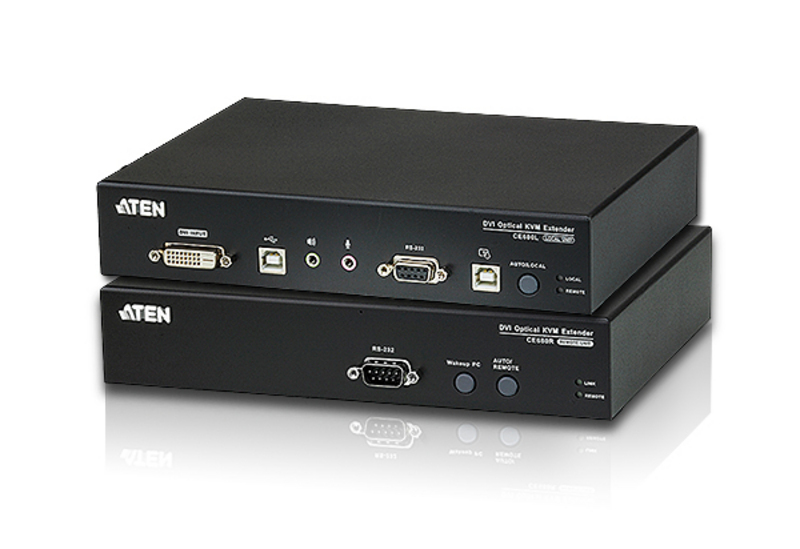

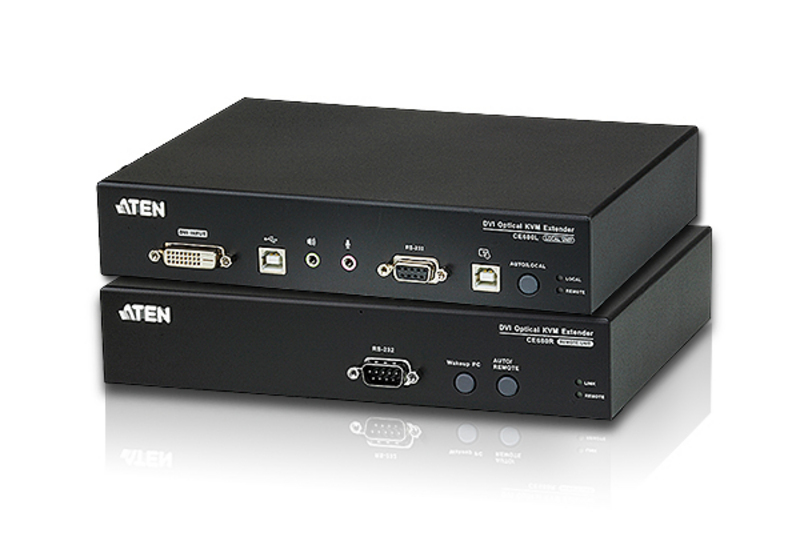

ATEN USB DVI Optical Fiber KVM Extender (20km)

ATEN USB DVI Optical Fiber KVM Extender (20km), Transmitter & receiver, Wired, 20000 m, 1920 x 1200 pixels, 1920 x 1200, Black

ATEN USB DVI OPTICAL KVM EXTENDER 2KM

Click or hover over image to enlarge

Brand:ATEN
MPN:CE690-AT-U

Part #: CE690-AT-U

AC adapter output voltage

5.3 V

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

20000 m

Rack mounting

Yes

Maximum digital resolution

1920 x 1200 pixels

Supported resolutions

1920 x 1200

Product colour

Black

Returns & Warranty

Comsys Price

$4,192.89

Save $473.00 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN USB DVI OPTICAL KVM EXTENDER 2KM

The CE690 is a DVI Optical KVM Extender that overcomes the length restrictions of standard DVI cables by using fiber optics to send high definition audio, video and control signals over long distances. The CE690 can transmit KVM DVI signals extremely long distances- up to 20 km away from the source. The extender takes audio/video streams from the local source and serializes the data to pass it over a single 3.125 Gbps optical link, for resolutions up to 1920 x 1200 @ 60Hz, 24-bits, with picture perfect quality.
1 x CE690L DVI Optical KVM Extender (Local Unit)
1 x CE690R DVI Optical KVM Extender (Remote Unit)
1 x 2L-7D02U Custom KVM Cable Set (1.8m)
1 x LIN6-04U1-V1CG USB Cable (1.8m)
2 x 0AD8-1605-24M1 Power Adapters
1 x Mounting Kit
1 x User Instructions

Key features

  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 20000 m
  • Rack mounting: Yes
  • Maximum digital resolution: 1920 x 1200 pixels
  • Supported resolutions: 1920 x 1200
  • Product colour: Black
  • Material: Metal
  • LED indicators: Link, Power
  • Transmitter video port type: DVI-D
  • Transmitter local keyboard/mouse port type: USB
  • Receiver local video port type: DVI-D
  • Receiver local keyboard/mouse port type: USB
  • AC adapter output voltage: 5.3 V
  • Transmitter width: 21.5 cm
  • Transmitter depth: 16.3 cm
  • Transmitter height: 4.18 cm
  • Transmitter weight: 1.12 kg
  • Receiver width: 21.5 cm
  • Receiver depth: 16.3 cm
  • Receiver height: 4.18 cm
  • Receiver weight: 1.12 kg
  • Package width: 247 mm
  • Package depth: 556 mm
  • Package height: 153 mm
  • Package weight: 3.92 kg
  • Manual: Yes
  • Quick installation guide: Yes
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C

+ 10 more — see the Specifications tab.
