ATEN USB 2.0 DVI Single Link over 1 CAT Cable (100m) KVM Extender…

ATEN USB 2.0 DVI Single Link over 1 CAT Cable (100m) KVM Extender with Full USB2.0 support (up to 480Mbps) / HDBaseT2.0, Transmitter & receiver, Wired, 100 m, Cat5e, Cat6, Cat6a, Black, Metal

ATEN USB DVI HDBASET 2.0 EXTENDER WITH RS232

Click or hover over image to enlarge

Brand:ATEN
MPN:CE620-AT-U

Part #: CE620-AT-U

Power consumption (transmitter) (max)

3 W

Power consumption (receiver) (max)

5.6 W

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

100 m

Cable types supported

Cat5e, Cat6, Cat6a

Product colour

Black

Material

Metal

Returns & Warranty

Comsys Price

$1,287.99

Save $156.00 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $322.00 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

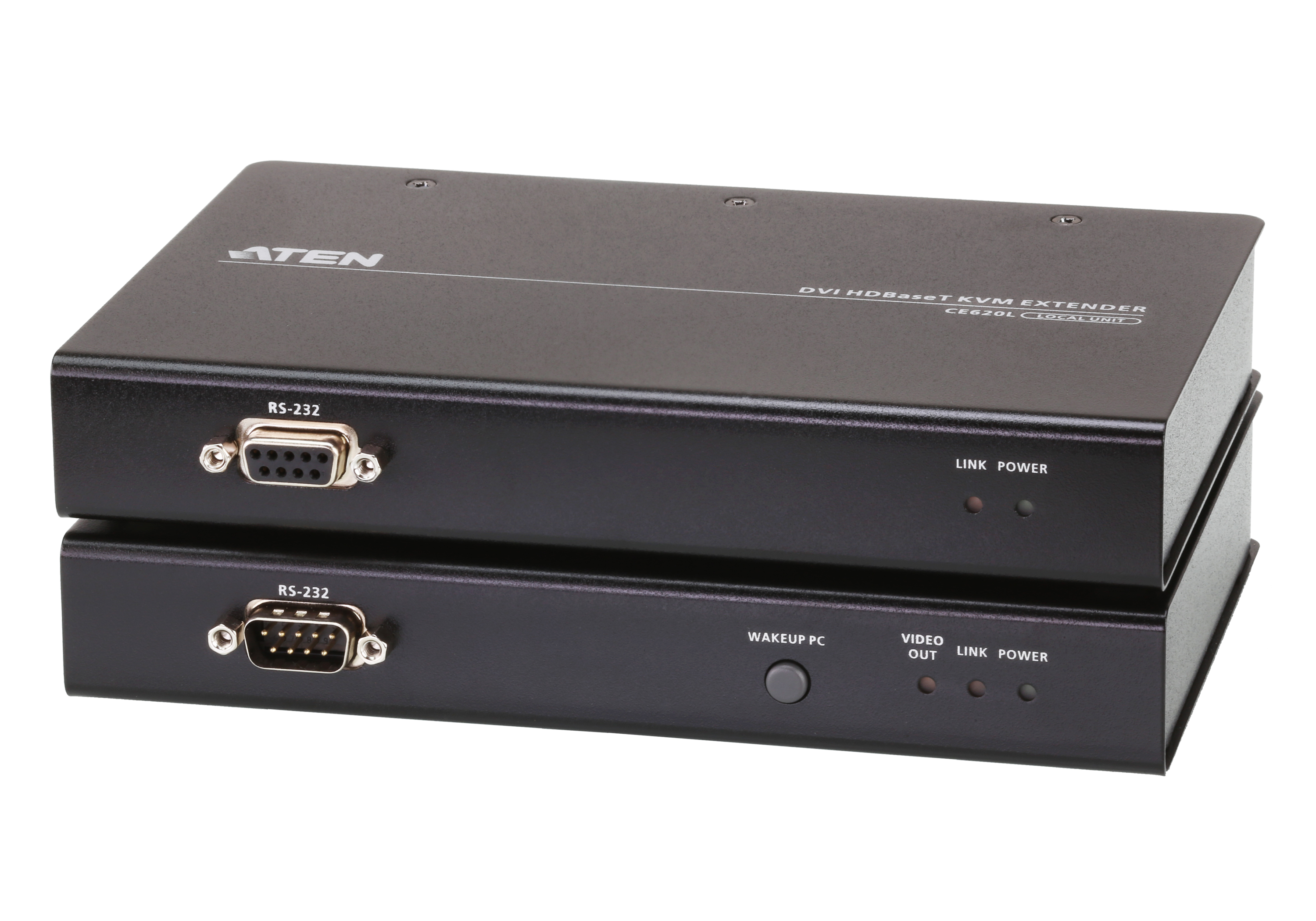

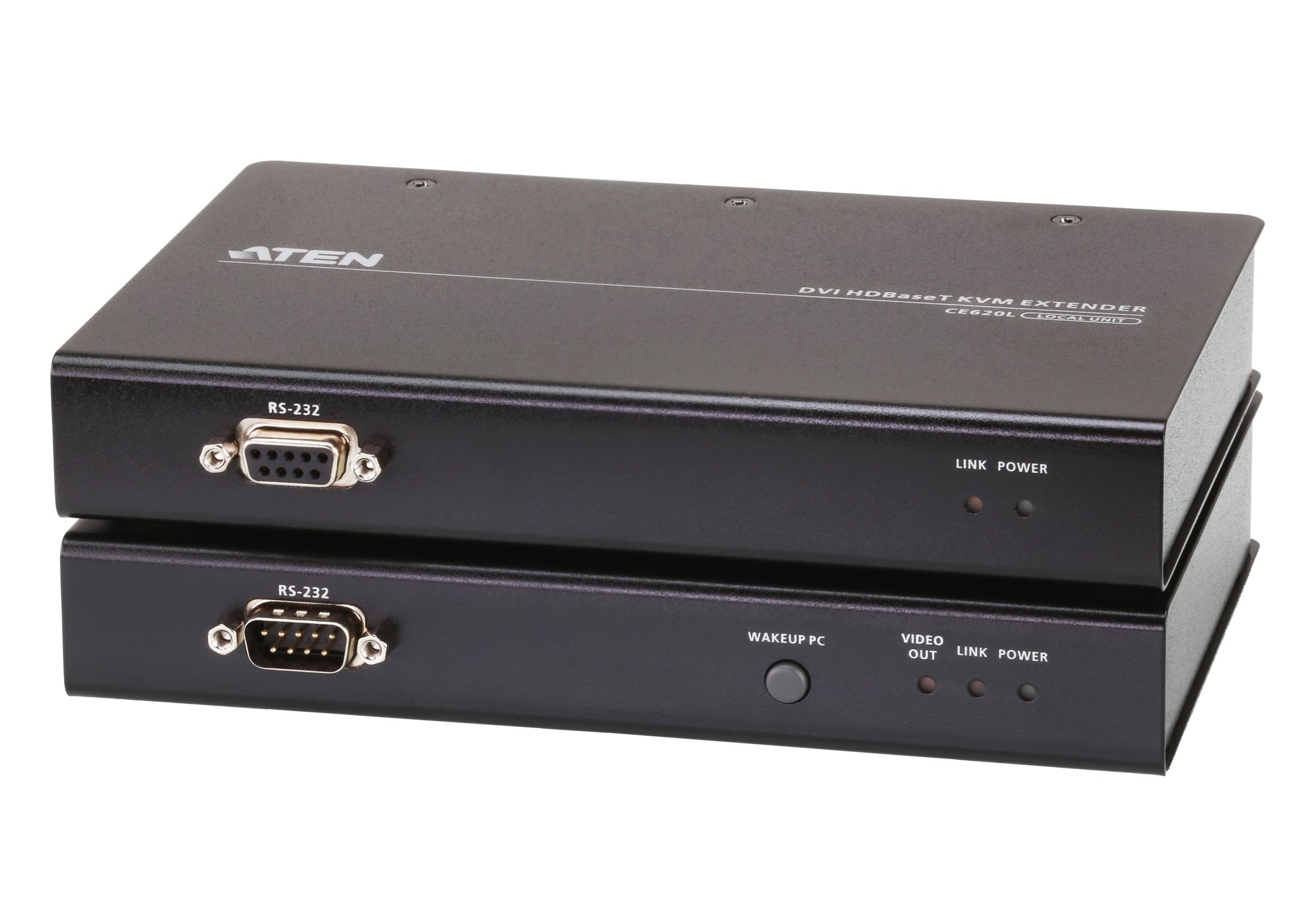

ATEN USB DVI HDBASET 2.0 EXTENDER WITH RS232

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. Featured with a Long Reach mode, the CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0, and RS-232 signals up to 150 meters using a single Cat6/6a/ATEN 2L-2910 Cat 6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

Key features

  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 100 m
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Product colour: Black
  • Material: Metal
  • Transmitter local video port: Yes
  • Transmitter local video port type: DVI-D
  • Receiver local video port type: DVI-D
  • Power consumption (transmitter) (max): 3 W
  • Power consumption (receiver) (max): 5.6 W
  • Transmitter width: 18.2 cm
  • Transmitter depth: 12.3 cm
  • Transmitter height: 2.87 cm
  • Transmitter weight: 630 g
  • Receiver width: 18.2 cm
  • Receiver depth: 12.3 cm
  • Receiver height: 2.87 cm
  • Receiver weight: 640 g
  • AC adapter included: Yes
  • Cables included: DVI
  • Manual: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Firmware upgradeable: Yes

Inc GST

$1,287.99
