ATEN STREAMLIVE HD MULTI-CHANNEL AV MIXER WITH STREAMING SUPPORT
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: UC9020-AT-U
- MPN: UC9020-AT-U

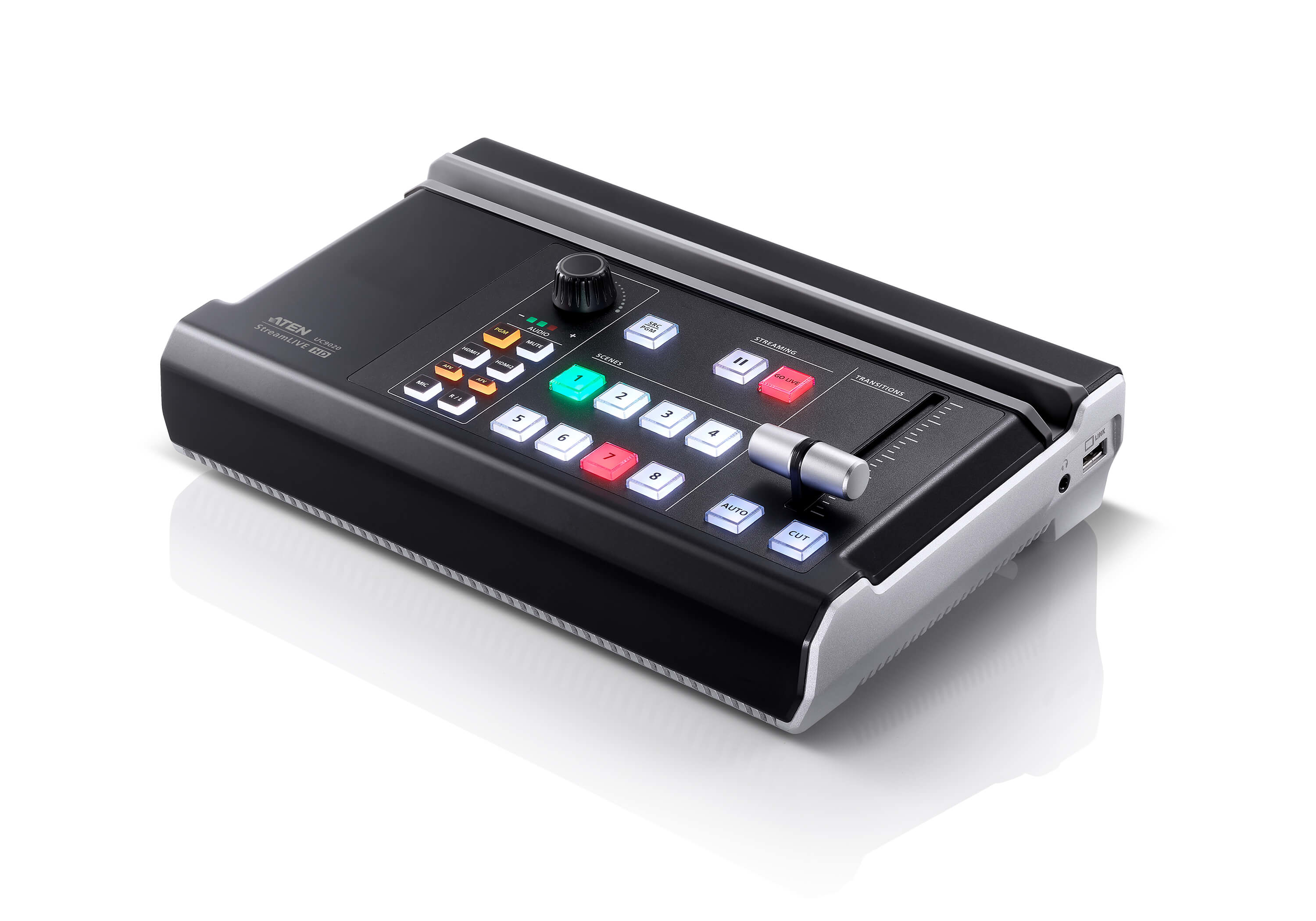

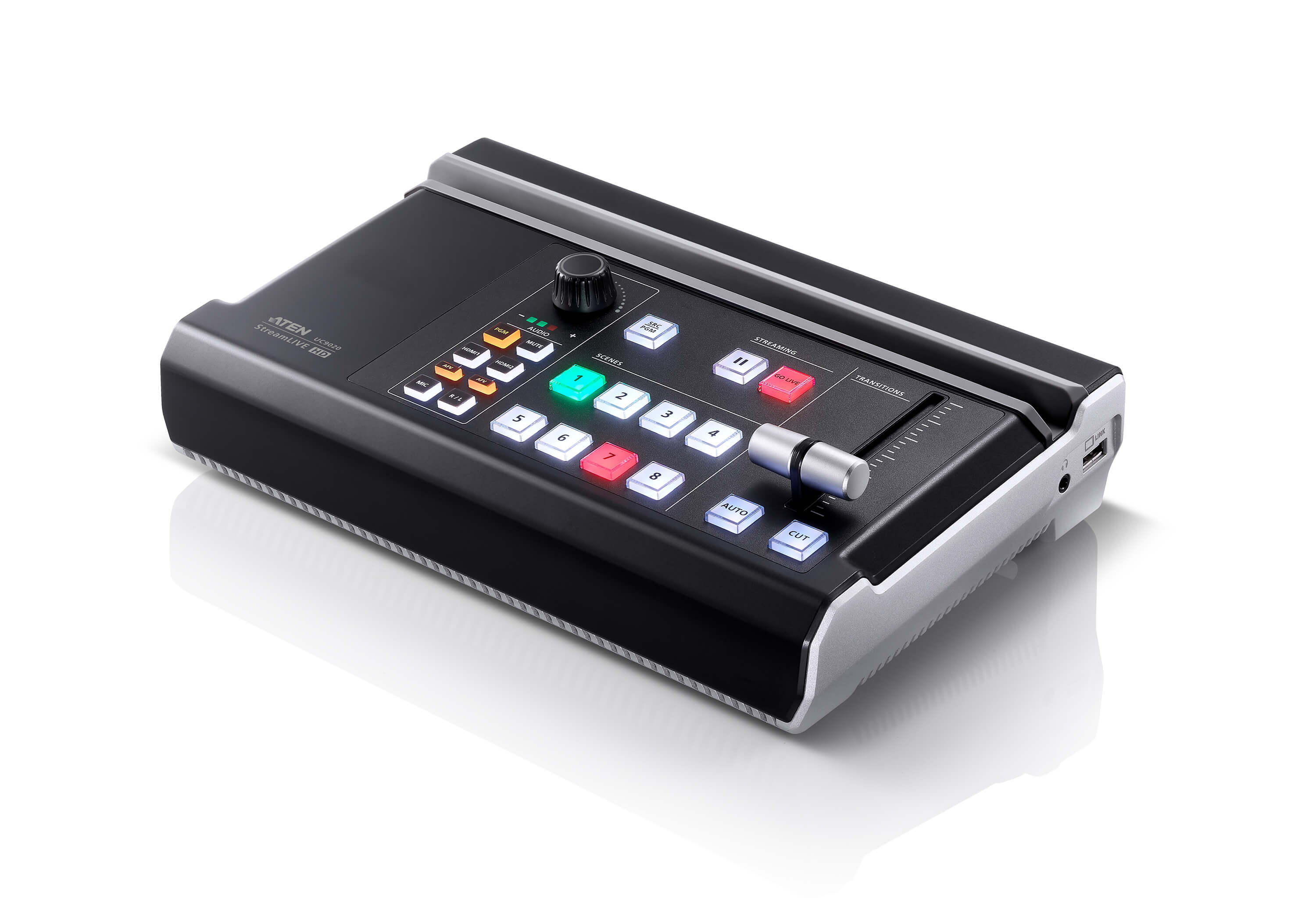

ATEN StreamLIVE HD Multi-Channel AV Mixer
ATEN StreamLIVE HD Multi-Channel AV Mixer, 4K Ultra HD, 640 x 480,800 x 600,1024 x 768,1280 x 1024,1600 x 1200,1680 x 1050, 480p, 720p, 1080p, 2160p, H.264, MP4, AAC, 10,100,1000 Mbit/s
Click or hover over image to enlarge
Power source type
AC
AC input voltage
100-240 V
HD type
4K Ultra HD
Video resolutions
640 x 480,800 x 600,1024 x 768,1280 x 1024,1600 x 1200,1680 x 1050
Supported video modes
480p, 720p, 1080p, 2160p
Rack mounting
No
Product colour
Black
Housing material
Metal
Comsys Price
Save $58.54 off RRP
Available to Order
4 payments of $147.49Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 68 Plunket Avenue, Papatoetoe, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN STREAMLIVE HD MULTI-CHANNEL AV MIXER WITH STREAMING SUPPORT
1x LIN6-09B1-C11G USB-A to USB-C Cable
1x LIN5-04U1-U1HG USB-A to USB-A Cable
1x LIN2-418K-E12G AC Power Cable
1x User Instructions
Key features
- HD type: 4K Ultra HD
- Video resolutions: 640 x 480,800 x 600,1024 x 768,1280 x 1024,1600 x 1200,1680 x 1050
- Supported video modes: 480p, 720p, 1080p, 2160p
- Video formats supported: H.264, MP4
- Audio formats supported: AAC
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Built-in display: No
- HDMI in: 3
- Number of HDMI outputs: 2
- Audio (L/R) in: 1
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 1
- AC (power) in: Yes
- Power source type: AC
- AC input voltage: 100-240 V
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Width: 288.5 mm
- Depth: 189.9 mm
- Height: 96.6 mm
- Weight: 2.26 kg
- Package width: 305 mm
- Package depth: 380 mm
- Package height: 157 mm
+ 9 more — see the Specifications tab.
