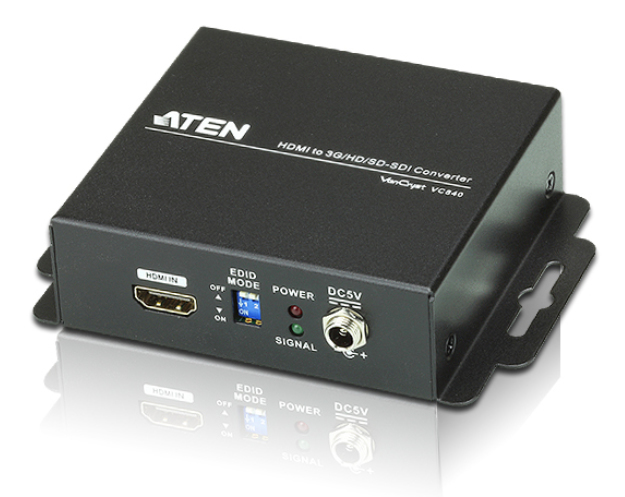

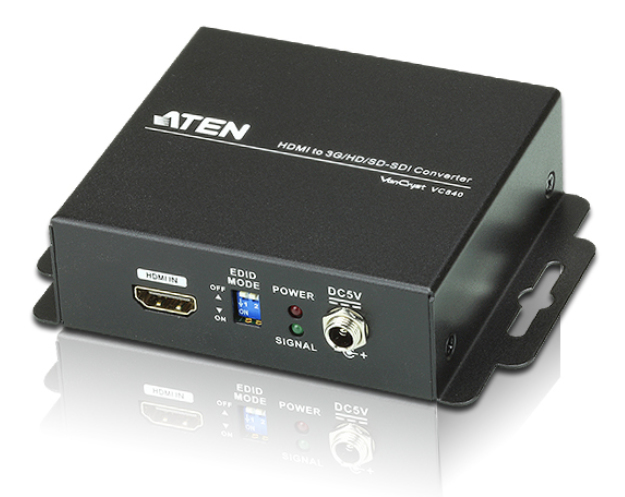

ATEN VC840-AT-U video signal converter
ATEN VC840-AT-U, Black, Metal, 720p, 1080i, 1080p, 2.97 Gbit/s, 148.5 MHz, HDMI
Click or hover over image to enlarge
Brand:ATEN
MPN:VC840-AT-U
Part #: VC840-AT-U
Power consumption (typical)
3.225 W
Supported video modes
720p, 1080i, 1080p
Bandwidth
148.5 MHz
Extended display identification data (EDID)
Yes
Product colour
Black
Housing material
Metal
Host interface
HDMI
Output interface
BNC
Comsys Price
$504.84
Save $100.38 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $126.21 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN HDMI TO 3G/HD/SD-SDI CONVERTER
The VC840 HDMI to 3G/HD/SD SDI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC840 provides 2 low jitter SDI outputs for dual display. The VC840 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.
Key features
- Extended display identification data (EDID): Yes
- Product colour: Black
- Housing material: Metal
- Supported video modes: 720p, 1080i, 1080p
- Bandwidth: 2.97 Gbit/s
- Bandwidth: 148.5 MHz
- Host interface: HDMI
- Output interface: BNC
- Video in: HDMI
- Video out: 2 x BNC
- Audio output: Analog 2 x RCA, Digital 1 x RCA
- DC-in jack: Yes
- Power consumption (typical): 3.225 W
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 90%
- Width: 107 mm
- Depth: 122 mm
- Height: 30.4 mm
- Weight: 290 g
