ATEN VE800A-AT-U AV extender AV transmitter & receiver Black
ATEN VE800A-AT-U, 1920 x 1080 pixels, AV transmitter & receiver, 3 m, Wired, Black, HDCP
Click or hover over image to enlarge
Brand:ATEN
MPN:VE800A-AT-U
Part #: VE800A-AT-U
Power consumption (transmitter) (max)
0.9 W
Power consumption (receiver) (max)
0.61 W
Type
AV transmitter & receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat5, Cat6, Cat6a
Maximum transfer distance
3 m
LED indicators
Yes
Supported video modes
1080p
Comsys Price
$137.99
Save $16.86 off RRP
In Stock
10 units available
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $34.50 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

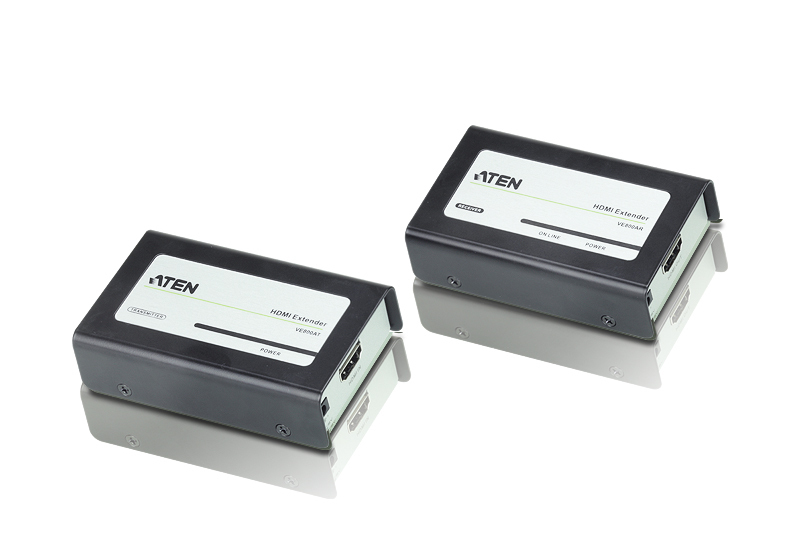

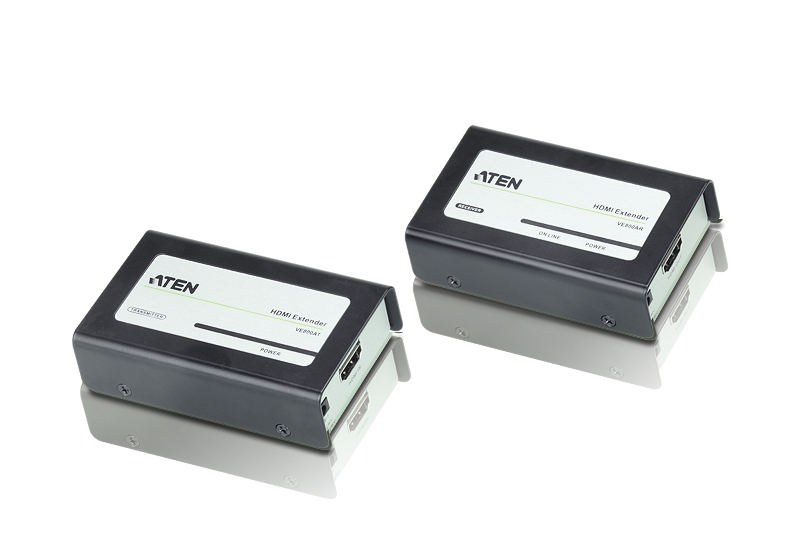

ATEN HDMI OVER CAT 5 EXTENDER
The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
1x VE800AT HDMI Extender
1x VE800AR HDMI Extender
2x 0AD6-1705-10EG Power Adapters
1x Mounting Kit
1x User Instructions
1x VE800AT HDMI Extender
1x VE800AR HDMI Extender
2x 0AD6-1705-10EG Power Adapters
1x Mounting Kit
1x User Instructions
Key features
- Type: AV transmitter & receiver
- Maximum resolution: 1920 x 1080 pixels
- Cable types supported: Cat5, Cat6, Cat6a
- Maximum transfer distance: 3 m
- LED indicators: Yes
- Supported video modes: 1080p
- Bandwidth: 6.75 Gbit/s
- Bandwidth: 225 MHz
- HDCP: Yes
- Material: Metal
- Impedance: 100 Ω
- Product colour: Black
- Connectivity technology: Wired
- Ethernet LAN: Yes
- RJ-45 input ports: 2
- RJ-45 output ports: 2
- HDMI in: 1
- Number of HDMI outputs: 1
- DC-in jack: Yes
- Power consumption (transmitter) (max): 0.9 W
- Power consumption (receiver) (max): 0.61 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Receiver dimensions (WxDxH): 55 x 90 x 22 mm
- Receiver weight: 160 g
- Transmitter dimensions (WxDxH): 55 x 90 x 22 mm
- Transmitter weight: 160 g
- Quantity per pack: 2 pc(s)
- AC adapter included: Yes
