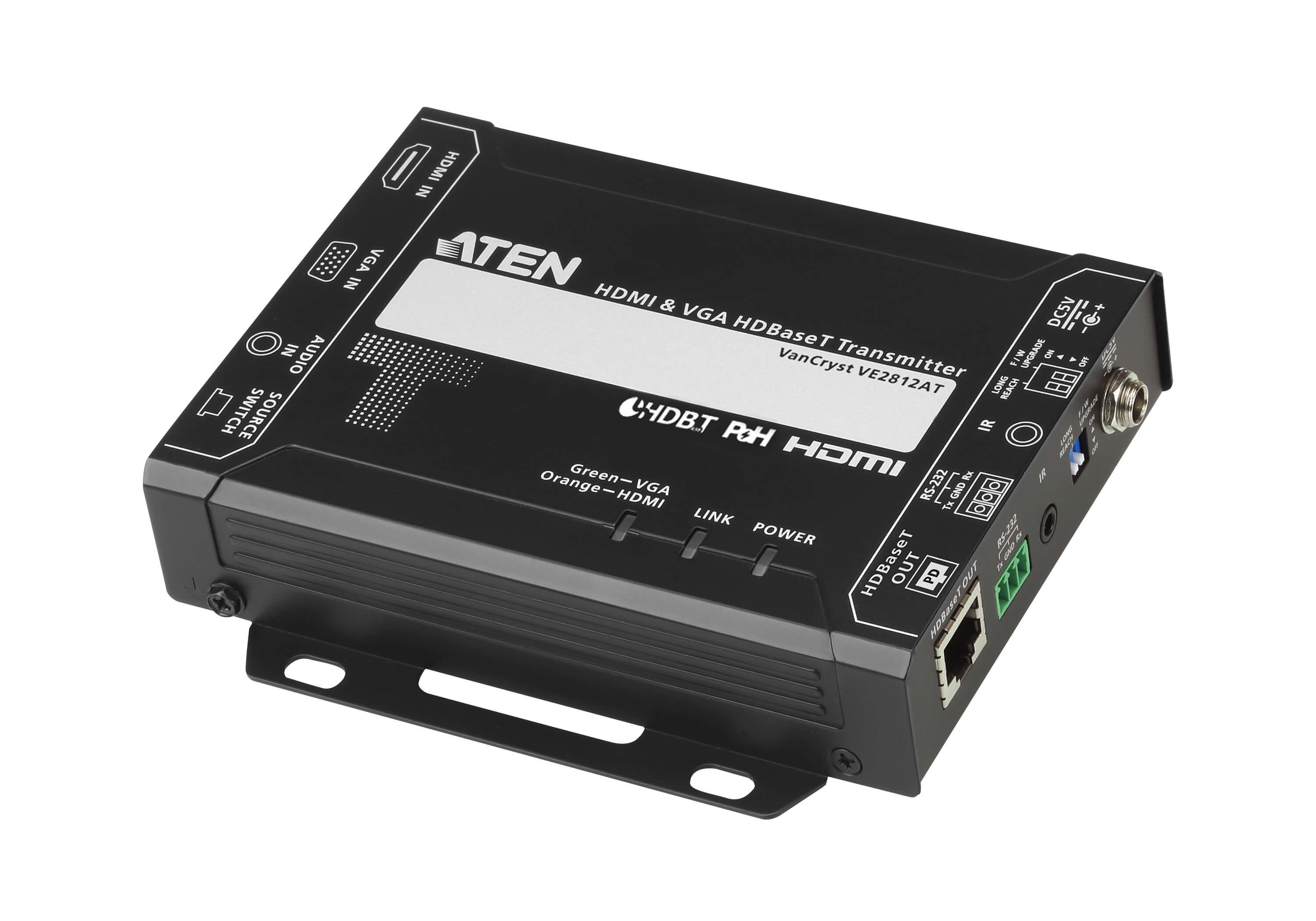

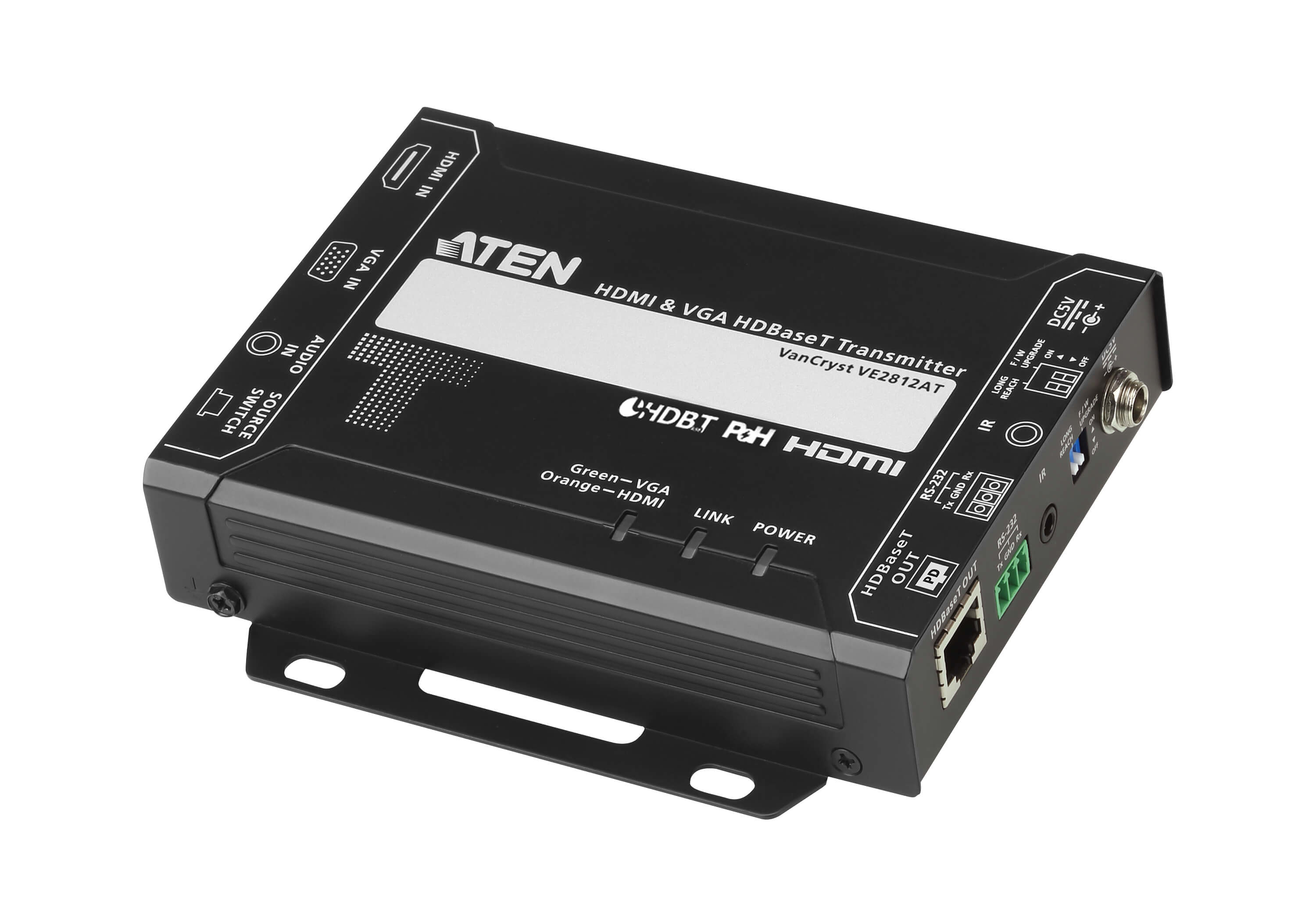

ATEN HDMI HDBASET & VGA TRANSMITTER WITH POH

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VE2812AT-AT-U
  • MPN: VE2812AT-AT-U

ATEN VE2812AT-AT-U AV extender AV transmitter Black

ATEN VE2812AT-AT-U, 4096 x 2160 pixels, AV transmitter, 100 m, Wired, Black, HDCP

ATEN HDMI HDBASET & VGA TRANSMITTER WITH POH — ATEN — NETWORKING

Click or hover over image to enlarge

Brand:ATEN
MPN:VE2812AT-AT-U

Part #: VE2812AT-AT-U

Search this part on Google

Type

AV transmitter

Maximum resolution

4096 x 2160 pixels

Maximum transfer distance

100 m

Bandwidth

340 MHz

HDCP

Yes

Material

Metal

Consumer Electronics Control (CEC) support

Yes

HDCP version

2.2

Returns & Warranty

Comsys Price

$706.09
On Sale

Save $96.48 off RRP

Available to Order

NZ-wide deliveryShips from Auckland · 1–3 days
1
Afterpay4 payments of $176.52
100% NZ Owned & OperatedCall 0800 664 554

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay — pay it in 4 interest-free instalments
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN HDMI HDBASET & VGA TRANSMITTER WITH POH

ATEN VE2812AT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AT receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. The VE2812AT guarantees reliable transmission of HDMI signals, supporting 3D, Deep Color, and embedded HD lossless audio formats. It also ensures transmission of VGA (with audio) at distance up to 100 m. In addition, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.

Key features

  • Type: AV transmitter
  • Maximum resolution: 4096 x 2160 pixels
  • Maximum transfer distance: 100 m
  • Bandwidth: 10.2 Gbit/s
  • Bandwidth: 340 MHz
  • HDCP: Yes
  • Material: Metal
  • Consumer Electronics Control (CEC) support: Yes
  • HDCP version: 2.2
  • Product colour: Black
  • Connectivity technology: Wired
  • RJ-45 output ports: 1
  • HDBaseT port: Yes
  • VGA (D-Sub) input ports: 1
  • HDMI in: 1
  • Audio input: 1
  • Remote (IR) output: 1
  • DC-in jack: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 123 mm
  • Depth: 143.2 mm
  • Height: 30 mm
  • Weight: 640 g
  • Quantity per pack: 1 pc(s)
  • Package width: 59 mm
  • Package depth: 239 mm
  • Package height: 160 mm
  • Package weight: 765 g
