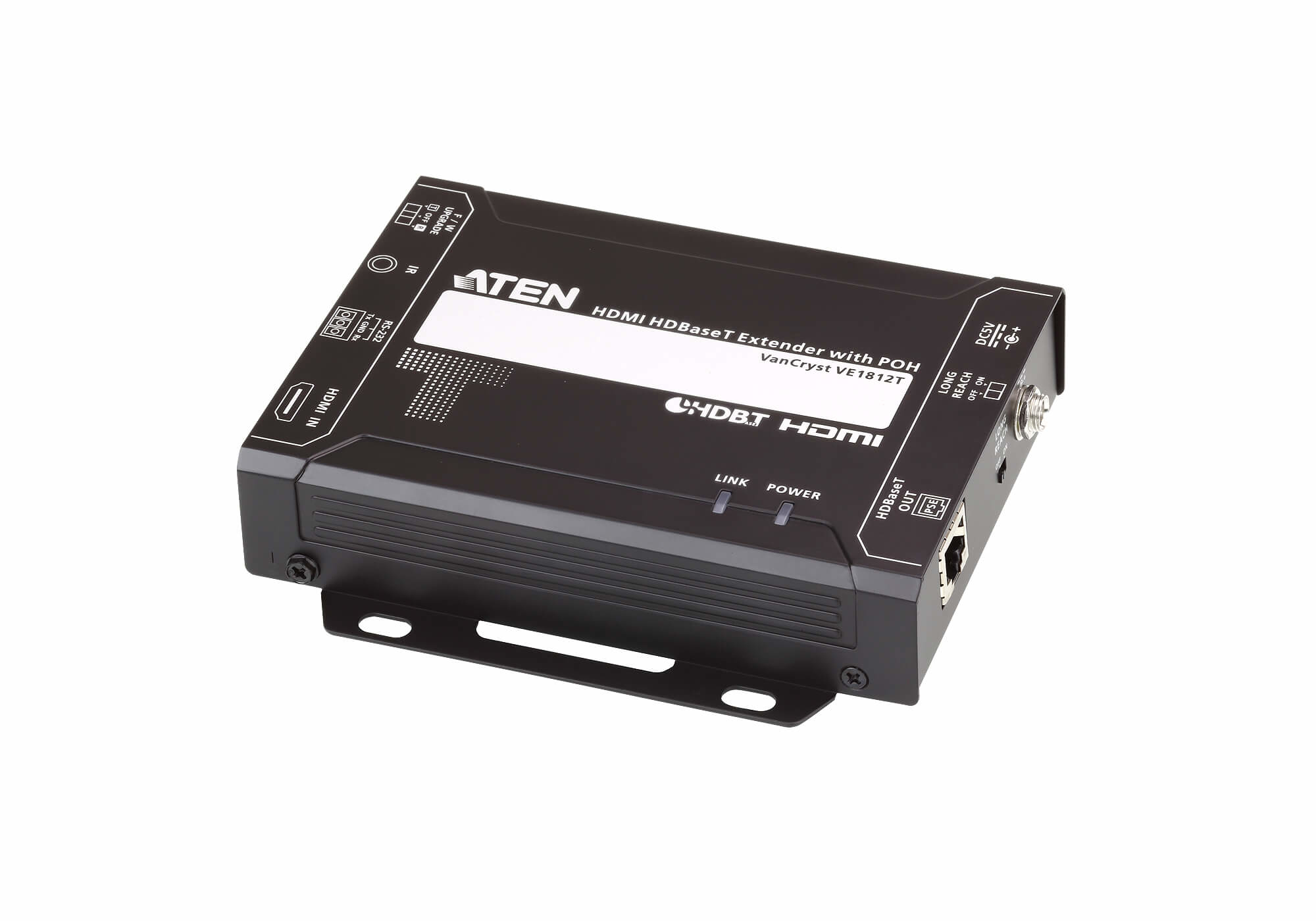

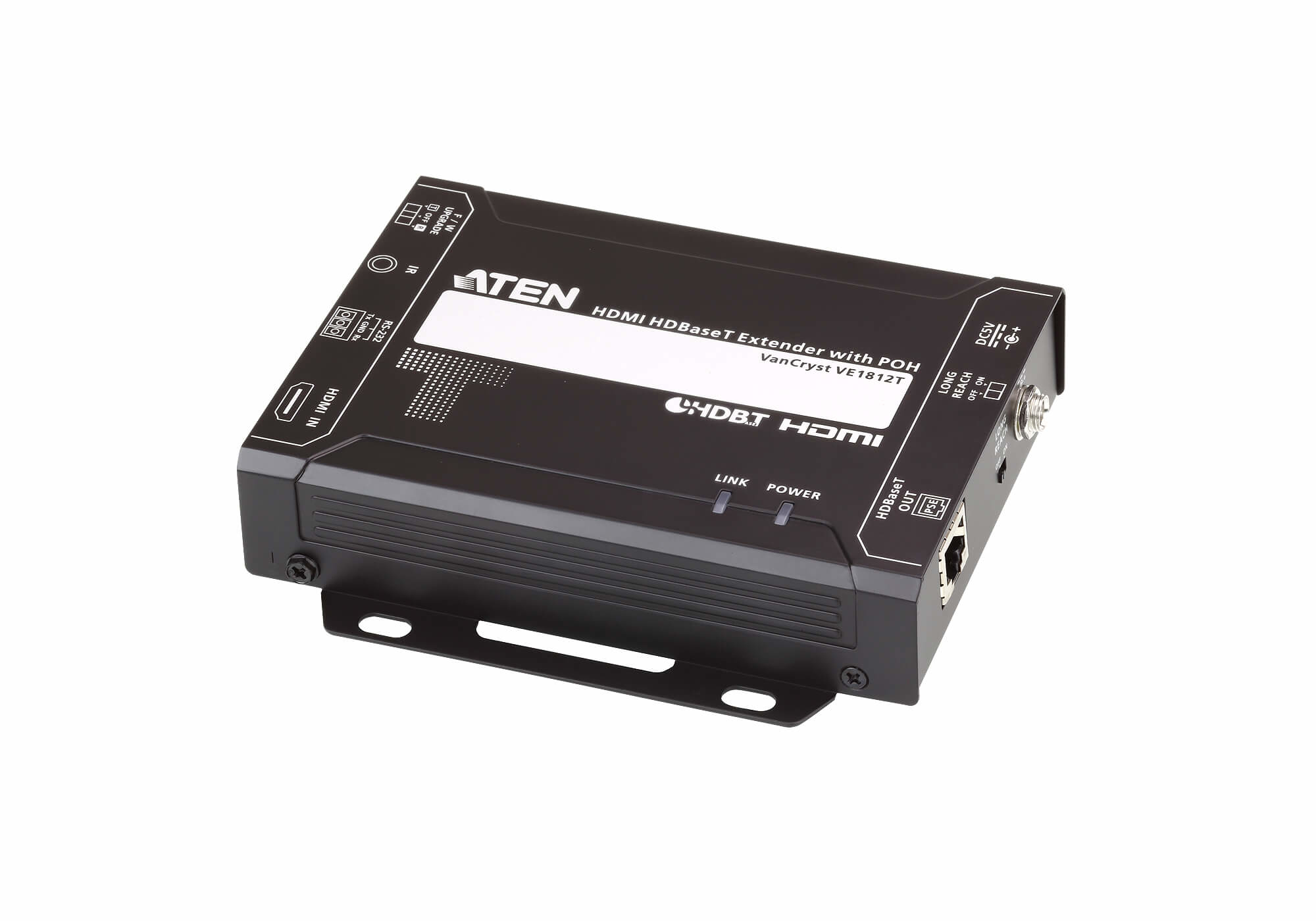

ATEN VE1812T-AT-U AV extender AV transmitter Black

ATEN VE1812T-AT-U, 4096 x 2160 pixels, AV transmitter, 150 m, Wired, 3D, HDCP

ATEN HDMI HDBASET TRANSMITTER WITH POH

Click or hover over image to enlarge

Brand:ATEN
MPN:VE1812T-AT-U

Part #: VE1812T-AT-U

Power source type

DC

Operating voltage (transmitter)

5 V

Power consumption (transmitter) (max)

4.3 W

Type

AV transmitter

Maximum resolution

4096 x 2160 pixels

Cable types supported

Cat5e, Cat6, Cat6a

Maximum transfer distance

150 m

LED indicators

Yes

Returns & Warranty

Comsys Price

$530.14

Save $55.38 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $132.54 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN HDMI HDBASET TRANSMITTER WITH POH

The VE1812T features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812T supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.

The VE1812T HDMI HDBaseT Transmitter with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812T can extend HDMI signal up to 150m @1080p. The VE1812T is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.

Key features

  • Type: AV transmitter
  • Maximum resolution: 4096 x 2160 pixels
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Maximum transfer distance: 150 m
  • LED indicators: Yes
  • Supported video modes: 1080p
  • Supported graphics resolutions: 3840 x 2160, 4096 x 2160
  • Bandwidth: 10.2 Gbit/s
  • Bandwidth: 340 MHz
  • HDCP: Yes
  • Material: Metal
  • 3D: Yes
  • Consumer Electronics Control (CEC) support: Yes
  • Impedance: 100 Ω
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN: Yes
  • RJ-45 output ports: 1
  • HDMI in: 1
  • RS-232 input ports: 1
  • Video in: 1
  • Remote (IR) input: 1
  • DC-in jack: Yes
  • Power source type: DC
  • Operating voltage (transmitter): 5 V
  • Power consumption (transmitter) (max): 4.3 W
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Transmitter dimensions (WxDxH): 101 x 136 x 29 mm

+ 5 more — see the Specifications tab.
