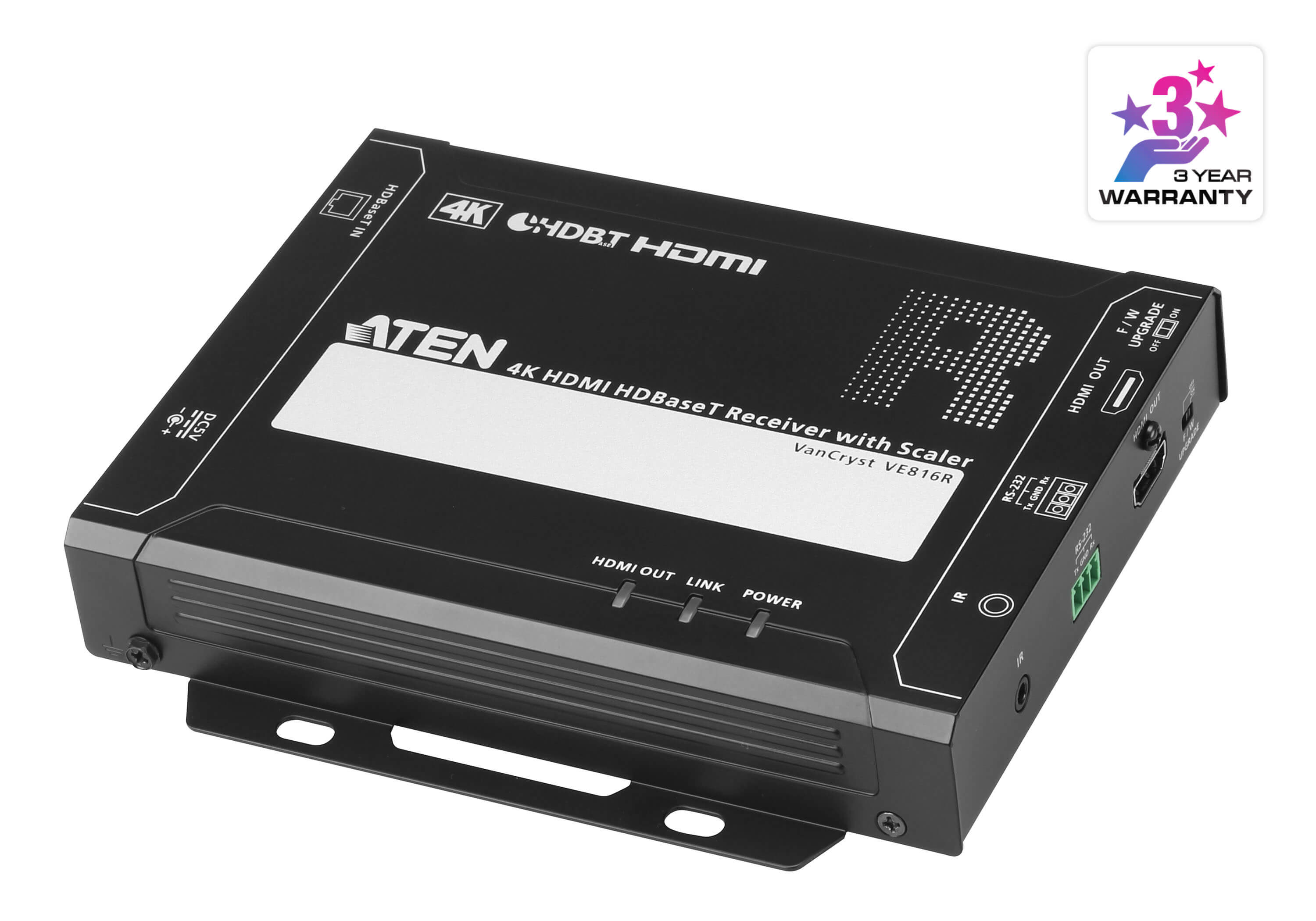

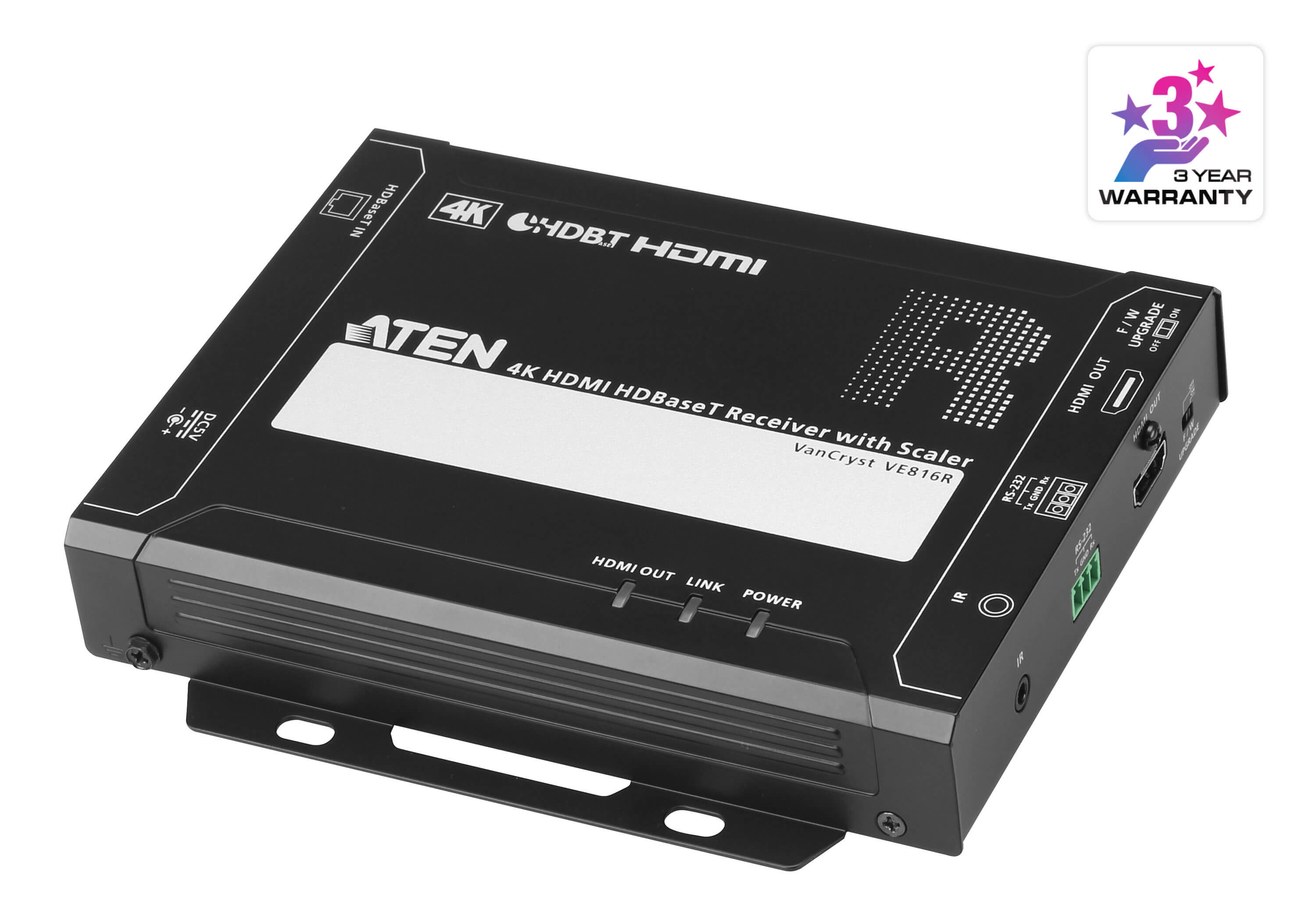

ATEN VE816R AV extender AV receiver Black

ATEN VE816R, 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP

ATEN HDMI HDBASET RECEIVER WITH SCALAR

Click or hover over image to enlarge

Brand:ATEN
MPN:VE816R-AT-U

Part #: VE816R-AT-U

Operating voltage

5 V

Power consumption (typical)

9.09 W

External power adapter

Yes

Type

AV receiver

Maximum resolution

4096 x 2160 pixels

Cable types supported

Cat5e, Cat6

Maximum transfer distance

150 m

Electrostatic Discharge (ESD) protection

15 kV

Returns & Warranty

Comsys Price

$1,929.69

Save $183.95 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $482.42 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN HDMI HDBASET RECEIVER WITH SCALAR

ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable, and at the same time, scales videos of different resolutions for optimal display.

Supporting bi-directional RS-232 channel and IR signaling pass-through, the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix, The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process.

When working with ATEN HDMI HDBaseT-Lite Matrix Switches, or Modular Matrix Switches with HDBaseT output boards, the VE816R supports video wall integration and ATEN’s Seamless Switch ™ function, providing users the ultimate A/V experiences.

Key features

  • Type: AV receiver
  • Maximum resolution: 4096 x 2160 pixels
  • Cable types supported: Cat5e, Cat6
  • Maximum transfer distance: 150 m
  • Electrostatic Discharge (ESD) protection: 15 kV
  • LED indicators: Yes
  • Supported video modes: 1080p
  • Supported graphics resolutions: 3840 x 2160, 4096 x 2160
  • Bandwidth: 10.2 Gbit/s
  • Bandwidth: 340 MHz
  • HDCP: Yes
  • Material: Metal
  • 3D: Yes
  • Firmware upgradeable: Yes
  • Plug and Play: Yes
  • Impedance: 100 Ω
  • Product colour: Black
  • HDBaseT certified: Yes
  • Connectivity technology: Wired
  • RJ-45 input ports: 1
  • Number of HDMI outputs: 1
  • Serial ports quantity: 1
  • Serial interface type: RS-232
  • Remote (IR) input: 1
  • DC-in jack: Yes
  • Operating voltage: 5 V
  • Power consumption (typical): 9.09 W
  • External power adapter: Yes
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C

+ 10 more — see the Specifications tab.
