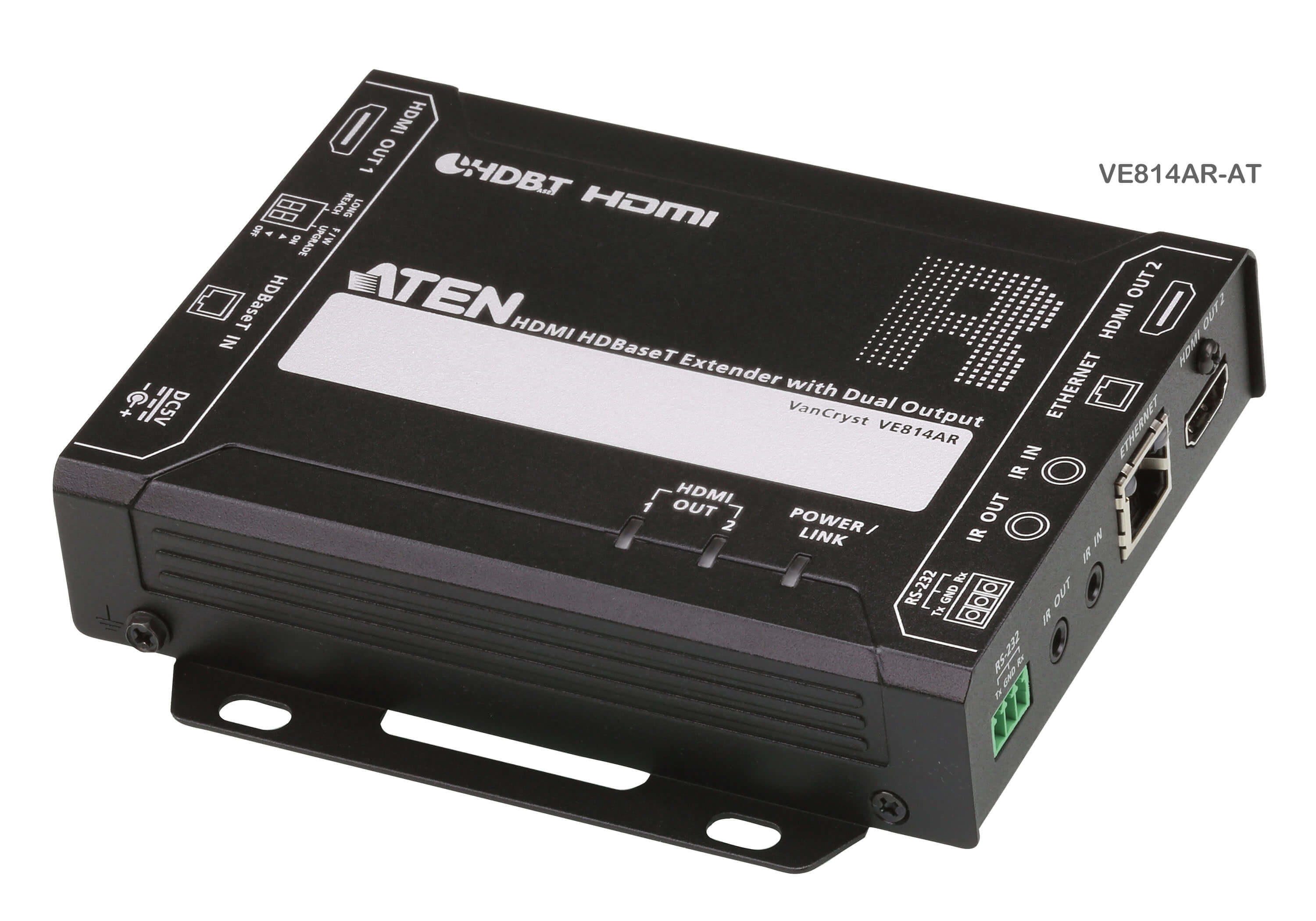

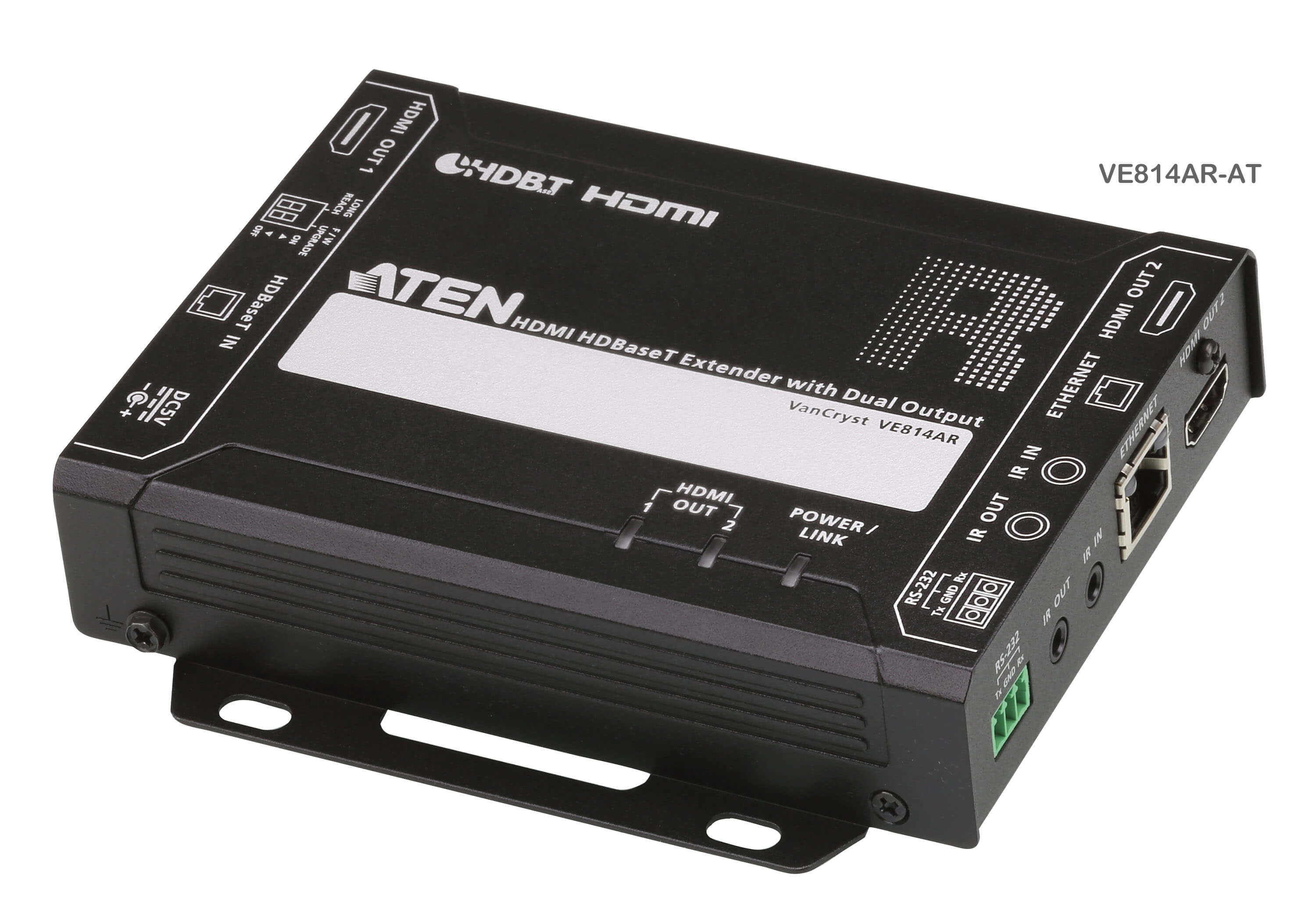

ATEN VE814AR-ATA-U AV extender AV receiver Black

ATEN VE814AR-ATA-U, 4096 x 2160 pixels, AV receiver, 150 m, Wired, 3D, HDCP

ATEN HDMI HDBASET RECEIVER WITH DUAL 4K OUTPUT

Click or hover over image to enlarge

Brand:ATEN
MPN:VE814AR-ATA-U

Part #: VE814AR-ATA-U

Operating voltage

5 V

Power consumption (typical)

7.9 W

Type

AV receiver

Maximum resolution

4096 x 2160 pixels

Cable types supported

Cat5e, Cat6, Cat6a

Maximum transfer distance

150 m

Maximum refresh rate

60 Hz

Electrostatic Discharge (ESD) protection

15 kV

Returns & Warranty

Comsys Price

$608.34

Save $56.39 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $152.09 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN HDMI HDBASET RECEIVER WITH DUAL 4K OUTPUT

ATEN VE814AR is an HDBaseT Video Receiver that is capable of receiving HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable.This HDCP 2.2-compliant receiver meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.

The VE814AR supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.

The VE814AR is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.

Key features

  • Type: AV receiver
  • Maximum resolution: 4096 x 2160 pixels
  • Cable types supported: Cat5e, Cat6, Cat6a
  • Maximum transfer distance: 150 m
  • Maximum refresh rate: 60 Hz
  • Electrostatic Discharge (ESD) protection: Yes
  • Electrostatic Discharge (ESD) protection: 15 kV
  • Infrared (IR) frequency range: 30 - 56 kHz
  • Supported graphics resolutions: 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
  • Bandwidth: 10.2 Gbit/s
  • Bandwidth: 340 MHz
  • HDCP: Yes
  • Material: Metal
  • 3D: Yes
  • Rack mounting: Yes
  • Plug and Play: Yes
  • HDCP version: 2.2
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN: Yes
  • RJ-45 input ports: 1
  • HDBaseT port: Yes
  • Number of HDMI outputs: 2
  • Remote (IR) input: 1
  • Remote (IR) output: 1
  • DC-in jack: Yes
  • Operating voltage: 5 V
  • Power consumption (typical): 7.9 W
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C

+ 8 more — see the Specifications tab.
