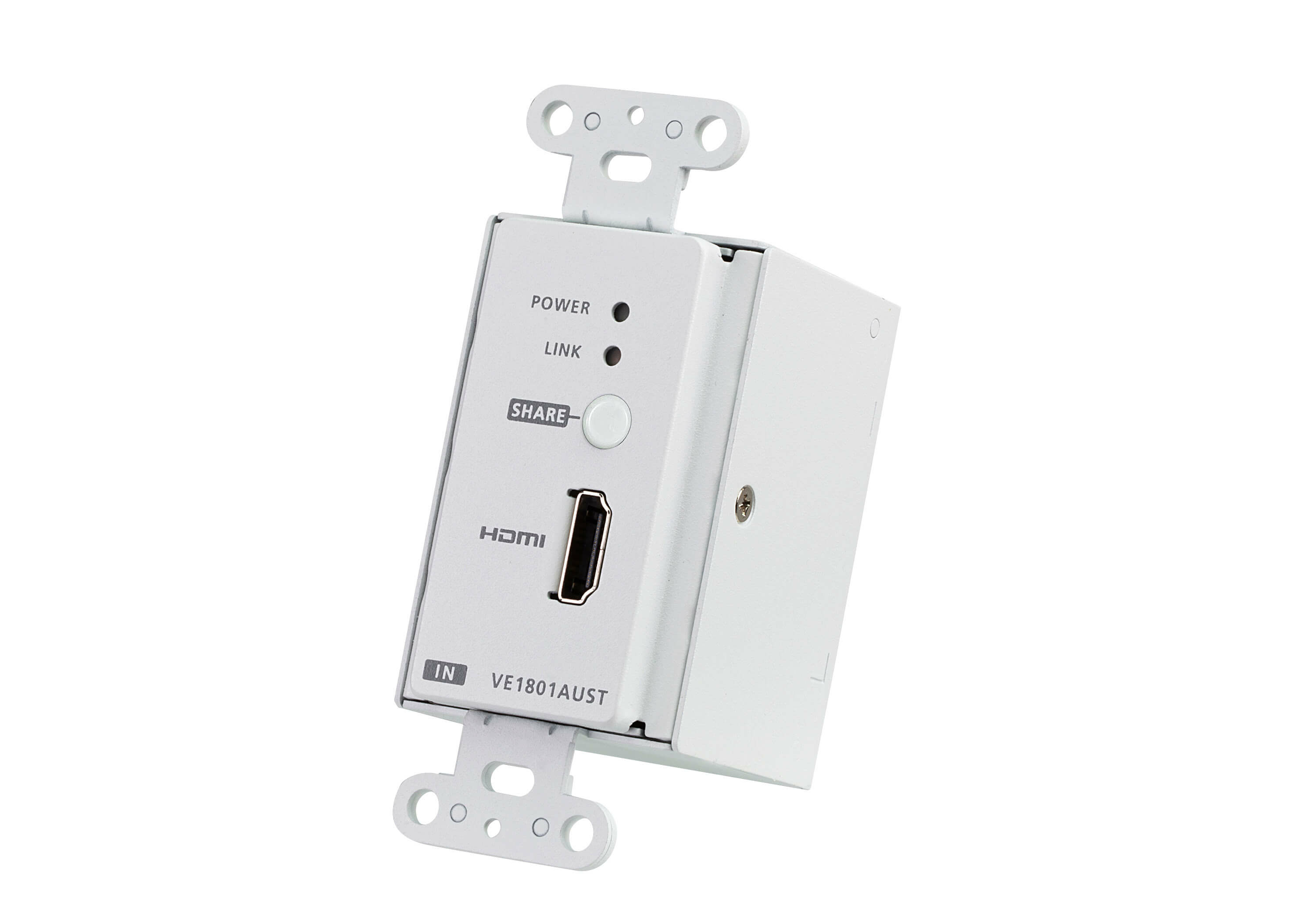

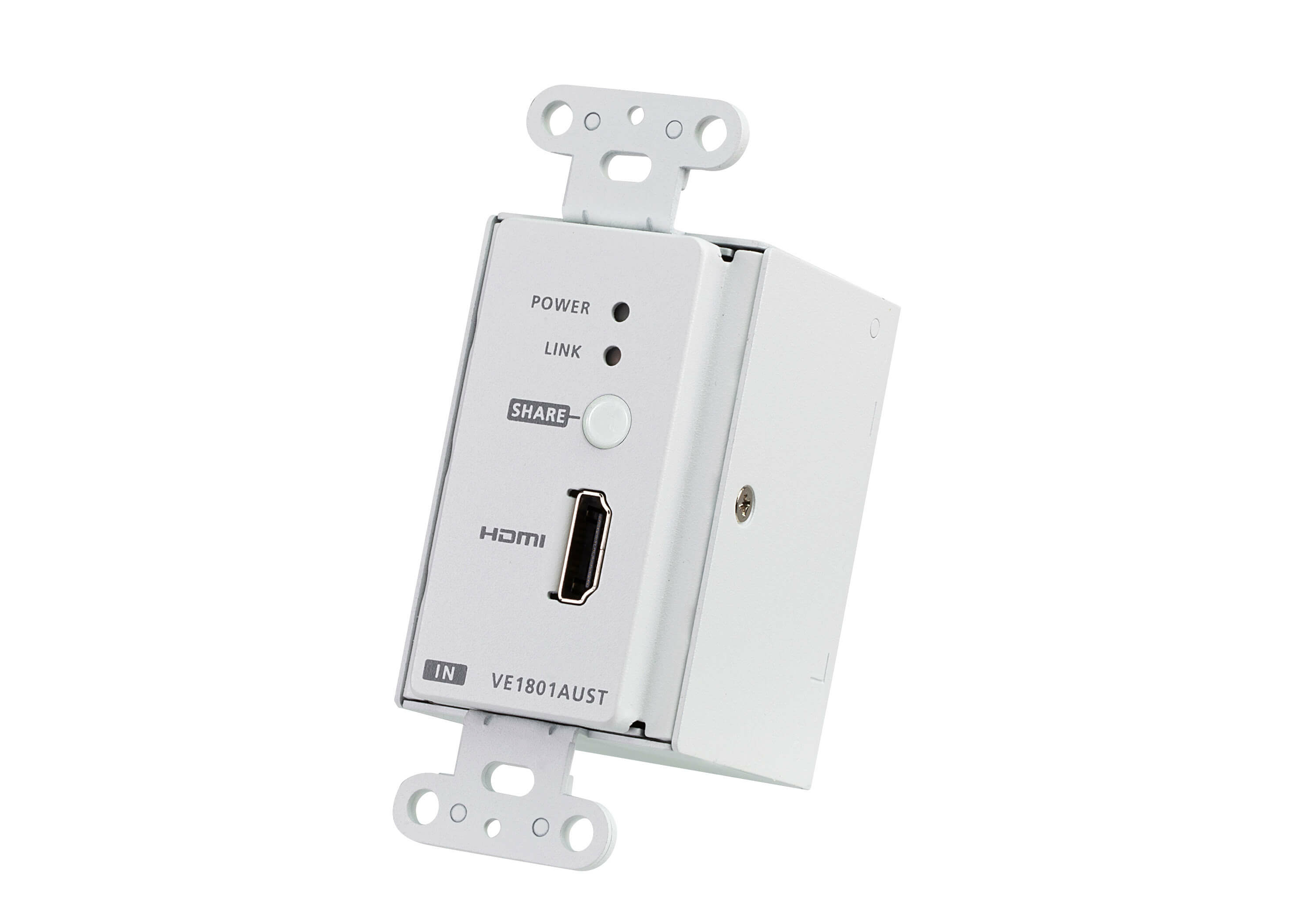

ATEN VE1801AUST-AT-U AV extender AV transmitter White
ATEN VE1801AUST-AT-U, 4096 x 2160 pixels, AV transmitter, 70 m, Wired, White, HDCP
Click or hover over image to enlarge
Part #: VE1801AUST-AT-U
Power source type
DC
Operating voltage
5 V
Power consumption (typical)
3.26 W
Type
AV transmitter
Maximum resolution
4096 x 2160 pixels
Cable types supported
Cat5e, Cat6, Cat6a
Maximum transfer distance
70 m
LED indicators
Yes
Comsys Price
Save $49.39 off RRP
Out of Stock
Contact us for ETA or alternatives

Four payments of $114.42 per fortnight
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN HDMI HDBASET-LITE TRANSMITTER WITH US WALL PLATE / POH (POH PD)
The VE1801AUST can be easily mounted in a 1-gang junction box with US wall plate, concealing bulky cable setups and presenting needed information in sight. In addition, with built-in PoH (Power over HDBaseT) function, the VE1801AUST receives power supply from a connected PoH PSE supported receiver and streamlines complex power line deployment.
Expanding on previous models by the share function, the VE1801AUST can remotely switch source when connecting to a compatible receiver, e.g., VP1421, bringing users for more convenient AV extension. This compact transmitter provides a neat and simple installation on walls or tables, enabling users to elegantly immerse their AV applications into any environment. Therefore, the VE1801AUST is ideal for use in meeting rooms, digital educational environments or any application requiring stable high-quality transmission and effortless installation.
Key features
- Type: AV transmitter
- Maximum resolution: 4096 x 2160 pixels
- Cable types supported: Cat5e, Cat6, Cat6a
- Maximum transfer distance: 70 m
- LED indicators: Yes
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Bandwidth: 10.2 Gbit/s
- Bandwidth: 340 MHz
- HDCP: Yes
- Material: Metal
- Consumer Electronics Control (CEC) support: Yes
- Plug and Play: Yes
- Impedance: 100 Ω
- HDCP version: 2.2
- Product colour: White
- Connectivity technology: Wired
- RJ-45 input ports: 1
- HDMI in: 1
- Power source type: DC
- Operating voltage: 5 V
- Power consumption (typical): 3.26 W
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
- Width: 44.4 mm
- Depth: 104.1 mm
- Height: 50 mm
- Weight: 210 g
- Quantity per pack: 1 pc(s)
+ 2 more — see the Specifications tab.
