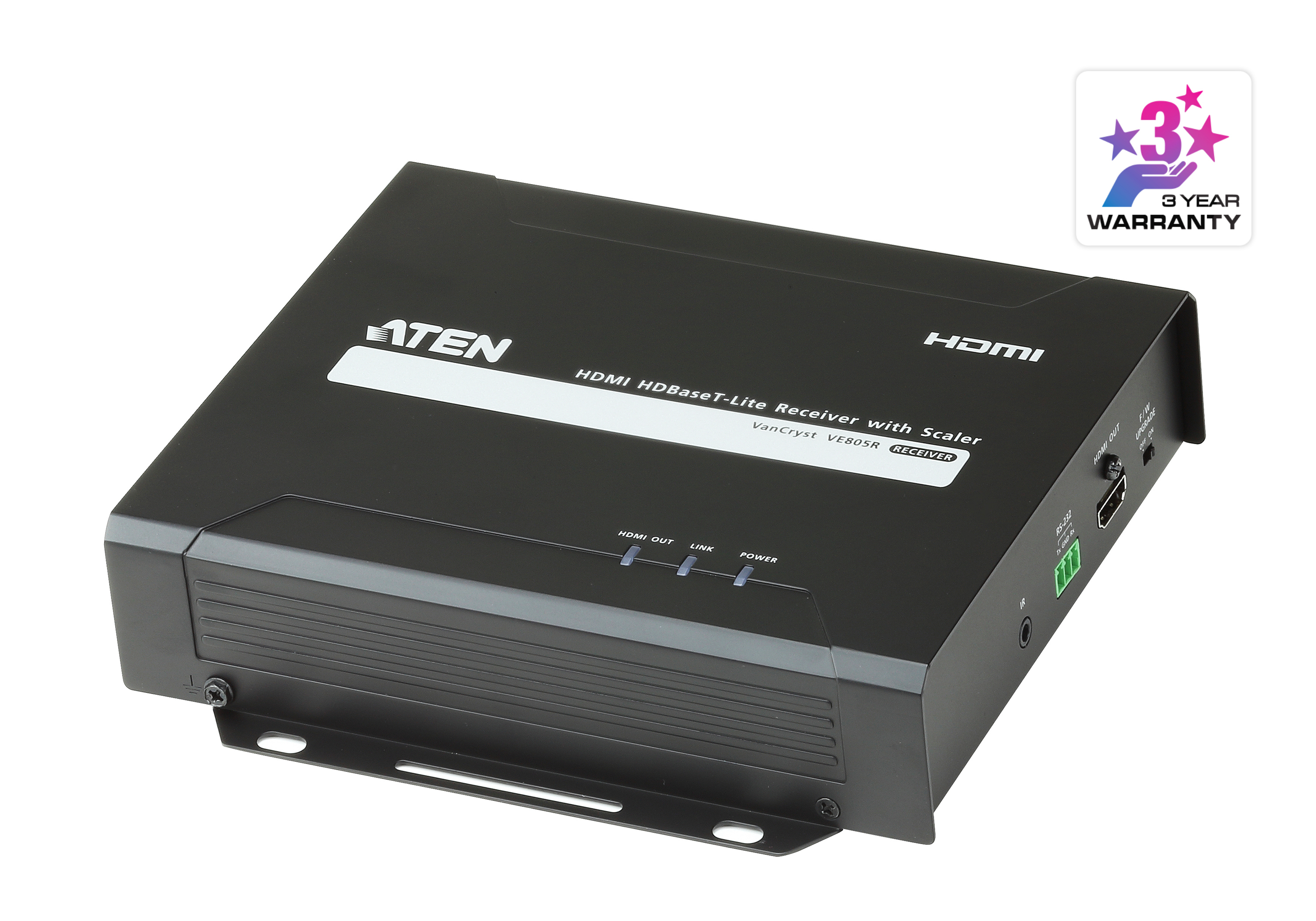

ATEN VE805R-AT-U AV extender AV receiver Black
ATEN VE805R-AT-U, 1920 x 1080 pixels, AV receiver, 70 m, Wired, Black, HDCP
Click or hover over image to enlarge
Brand:ATEN
MPN:VE805R-AT-U
Part #: VE805R-AT-U
Power source type
DC
Operating voltage
5 V
Power consumption (typical)
9.5 W
Type
AV receiver
Maximum resolution
1920 x 1080 pixels
Cable types supported
Cat5e, Cat6, Cat6a
Maximum transfer distance
70 m
RS-232 pass-through
Yes
Comsys Price
$1,209.79
Save $119.91 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $302.45 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

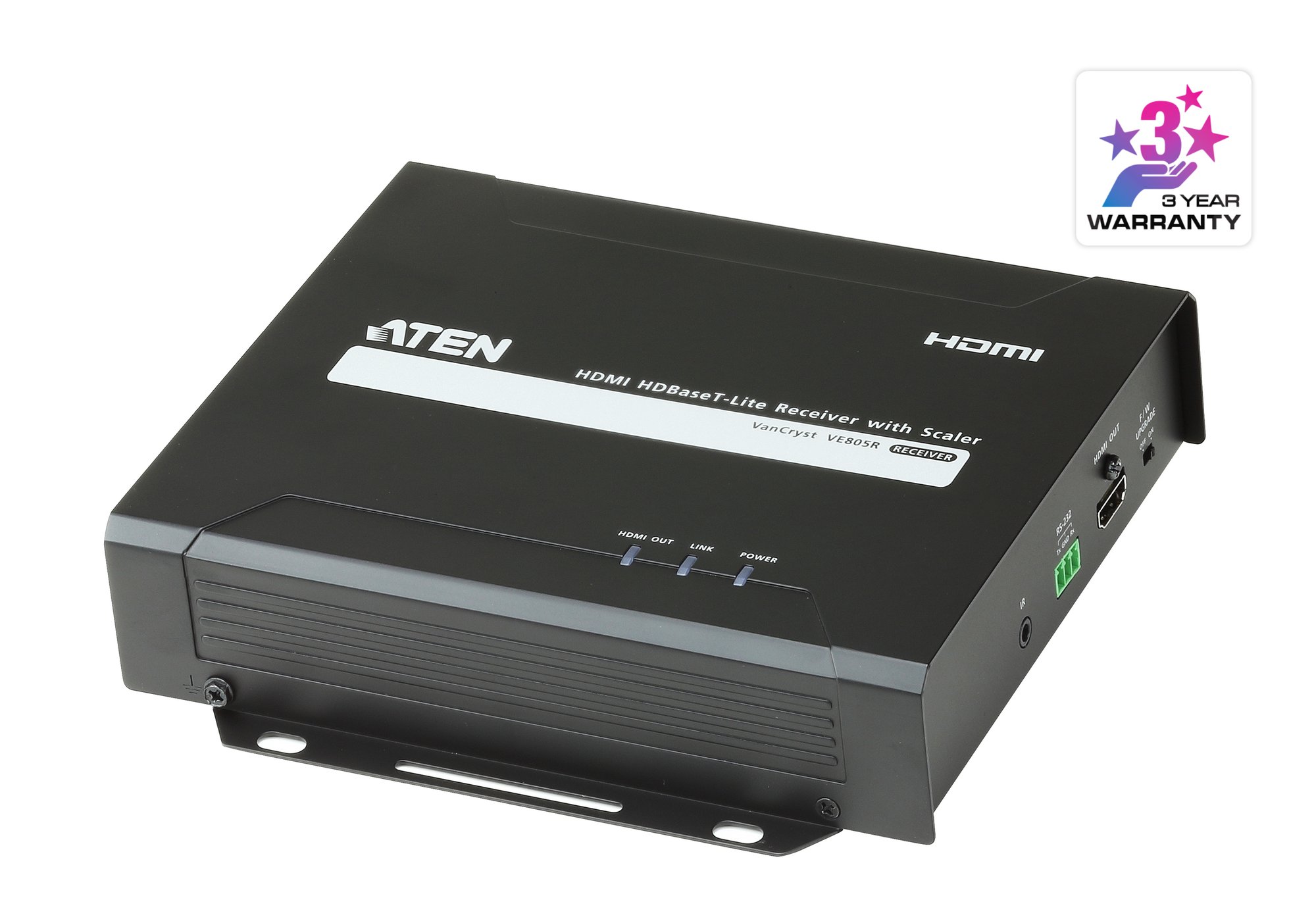

ATEN HDMI HDBASET-LITE RECEIVER WITH SCALER
The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.
With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.
Key features
- Type: AV receiver
- Maximum resolution: 1920 x 1080 pixels
- Cable types supported: Cat5e, Cat6, Cat6a
- Maximum transfer distance: 70 m
- RS-232 pass-through: Yes
- Supported video modes: 1080p
- Bandwidth: 6.75 Gbit/s
- Bandwidth: 225 MHz
- On/off switch: Yes
- HDCP: Yes
- Material: Metal
- Wall mountable: Yes
- Impedance: 100 Ω
- HDCP version: 1.4
- Product colour: Black
- Connectivity technology: Wired
- Ethernet LAN: Yes
- RJ-45 input ports: 1
- Number of HDMI outputs: 1
- HDMI version: 1.4
- RS-232 input ports: 1
- Remote (IR) input: 1
- DC-in jack: Yes
- Power source type: DC
- Operating voltage: 5 V
- Power consumption (typical): 9.5 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Receiver dimensions (WxDxH): 169.2 x 181.8 x 42 mm
+ 2 more — see the Specifications tab.
