ATEN Mini USB DVI HDBaseT KVM Extender

ATEN Mini USB DVI HDBaseT KVM Extender, Transmitter & receiver, Wired, 100 m, Cat6, Cat6a, 1920 x 1200 pixels, 1920x1200 1920x1080 1600x1200

ATEN DVI HDBASET MINI KVM EXTENDER

Click or hover over image to enlarge

Brand:ATEN
MPN:CE611-AT-U

Part #: CE611-AT-U

Power consumption (transmitter) (max)

2.494 W

Power consumption (receiver) (max)

4.816 W

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

100 m

Cable types supported

Cat6, Cat6a

Maximum digital resolution

1920 x 1200 pixels

Supported resolutions

1920x1200 1920x1080 1600x1200

Returns & Warranty

Comsys Price

$1,256.94

Save $185.00 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $314.24 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN DVI HDBASET MINI KVM EXTENDER

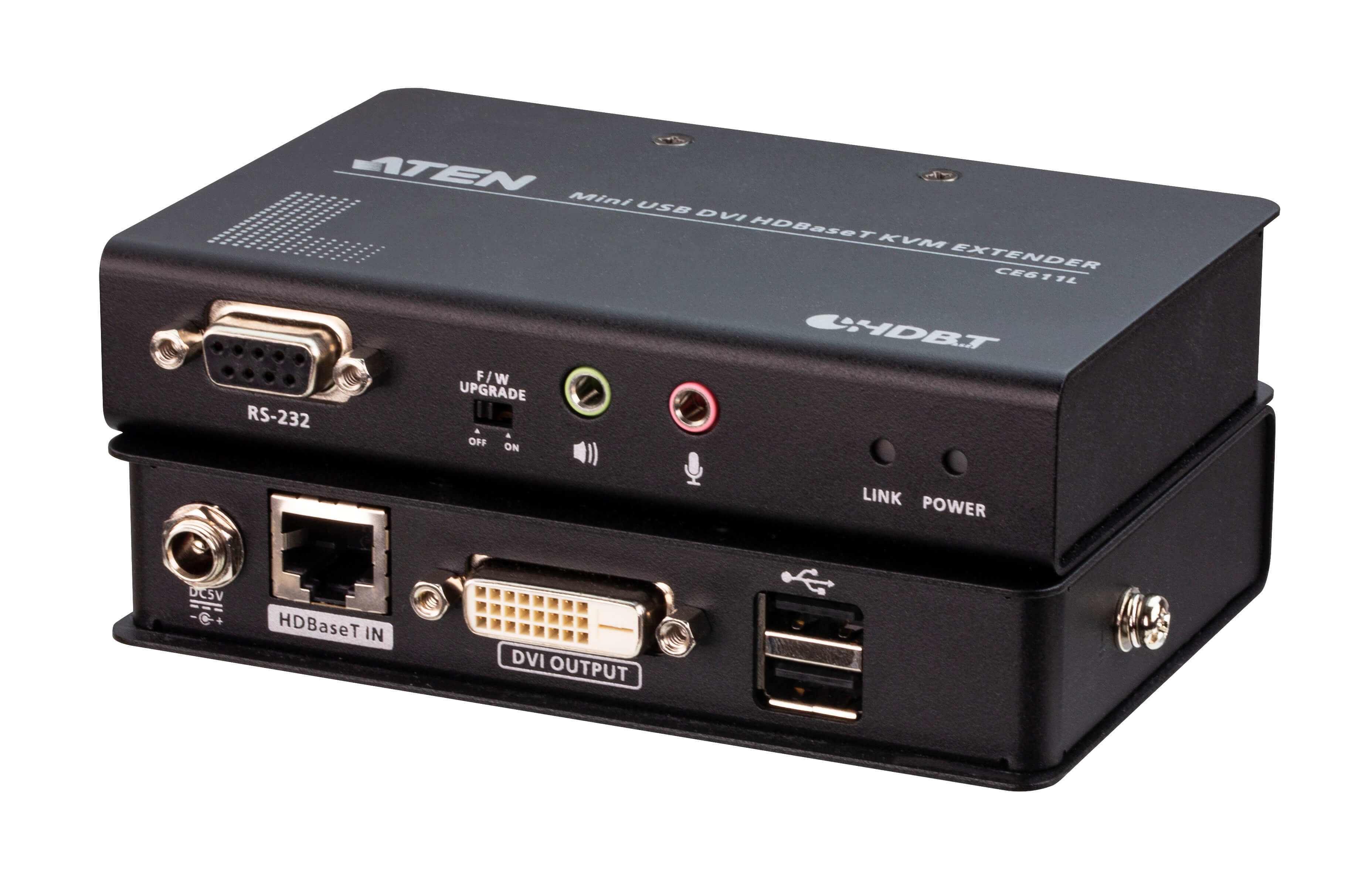

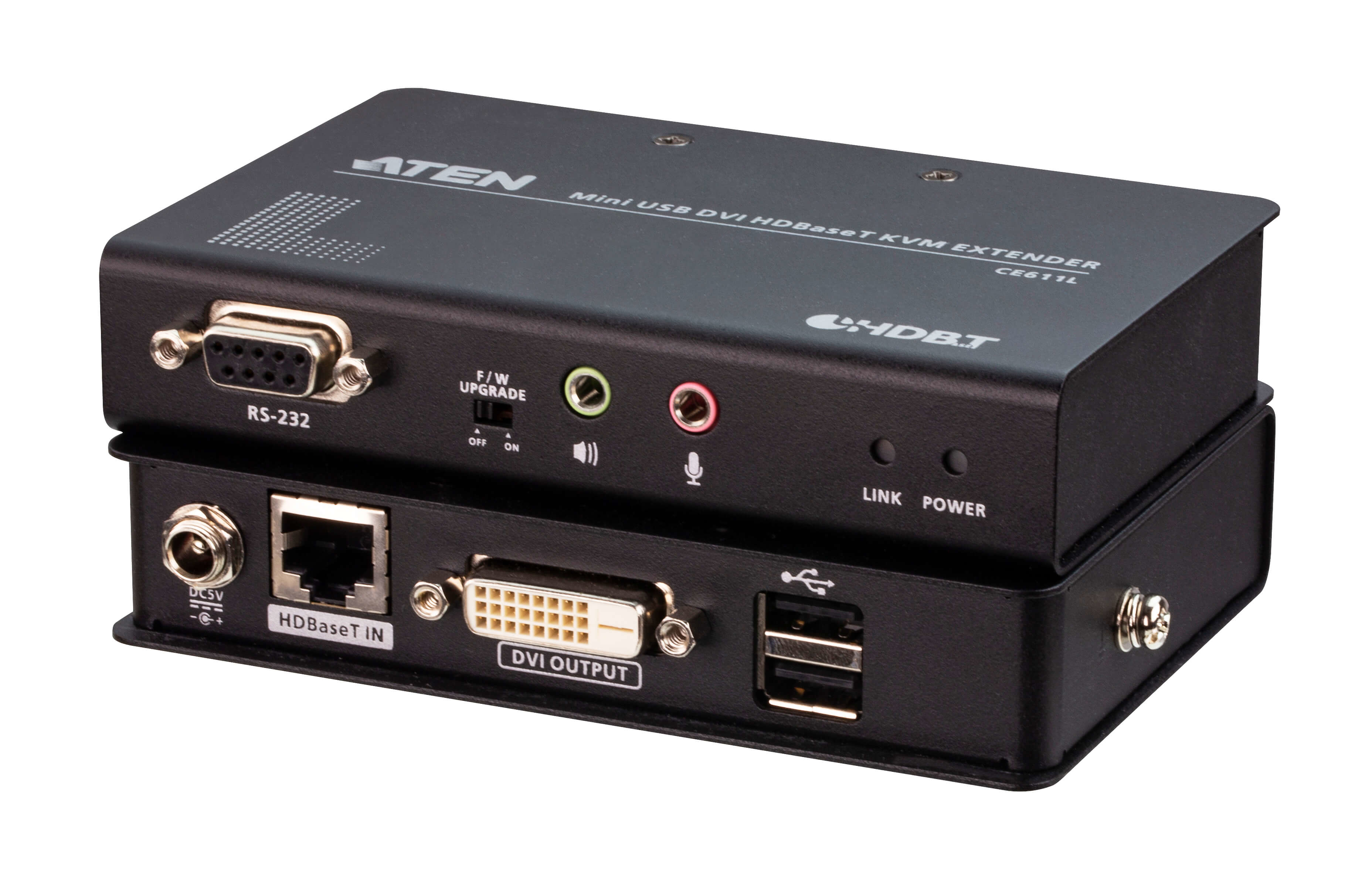

The ATEN CE611 is a USB DVI HDBaseT™ KVM Extender that integrates the latest HDBaseT™ technologies to transmit 1920 x 1200 DVI video, stereo audio, USB, and RS-232 signals up to 100 meters using a single Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable. This cost-effective extender comes with a small form factor design that includes DVI/audio interfaces, USB 2.0 full-speed ports, and serial console to fulfill most of extended KVM control and console demands. With an easy cable installation that supports various signals, the CE611 is ideal for applications where convenient remote access is required, such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
1x CE611L Mini USB DVI HDBaseT KVM Extender (Local Unit)
1x CE611R Mini USB DVI HDBaseT KVM Extender (Remote Unit)
2x 0AD8-1F05-26M1 Power Adapters
1x User Instructions

Key features

  • Type: Transmitter & receiver
  • Connectivity technology: Wired
  • Maximum transfer distance: 100 m
  • Cable types supported: Cat6, Cat6a
  • Maximum digital resolution: 1920 x 1200 pixels
  • Supported resolutions: 1920x1200 1920x1080 1600x1200
  • Product colour: Black
  • Material: Metal
  • LED indicators: Yes
  • Certification: RoHS
  • Transmitter video port type: DVI-D
  • Transmitter local keyboard/mouse port type: USB
  • RJ-45 ports quantity (transmitter): 1
  • Receiver local video port type: DVI-D
  • Receiver local keyboard/mouse port type: USB
  • RJ-45 ports quantity (receiver): 1
  • USB 2.0 ports quantity: 2
  • USB data transfer rates: 480 Mbit/s
  • RS-232 ports: 2
  • RJ-45 ports quantity: 2
  • PC Audio in: Yes
  • PC Audio out: Yes
  • Power consumption (transmitter) (max): 2.494 W
  • Power consumption (receiver) (max): 4.816 W
  • Transmitter width: 12.8 cm
  • Transmitter depth: 8.69 cm
  • Transmitter height: 2.5 cm
  • Transmitter weight: 350 g
  • Receiver width: 12.8 cm
  • Receiver depth: 8.69 cm

+ 21 more — see the Specifications tab.
