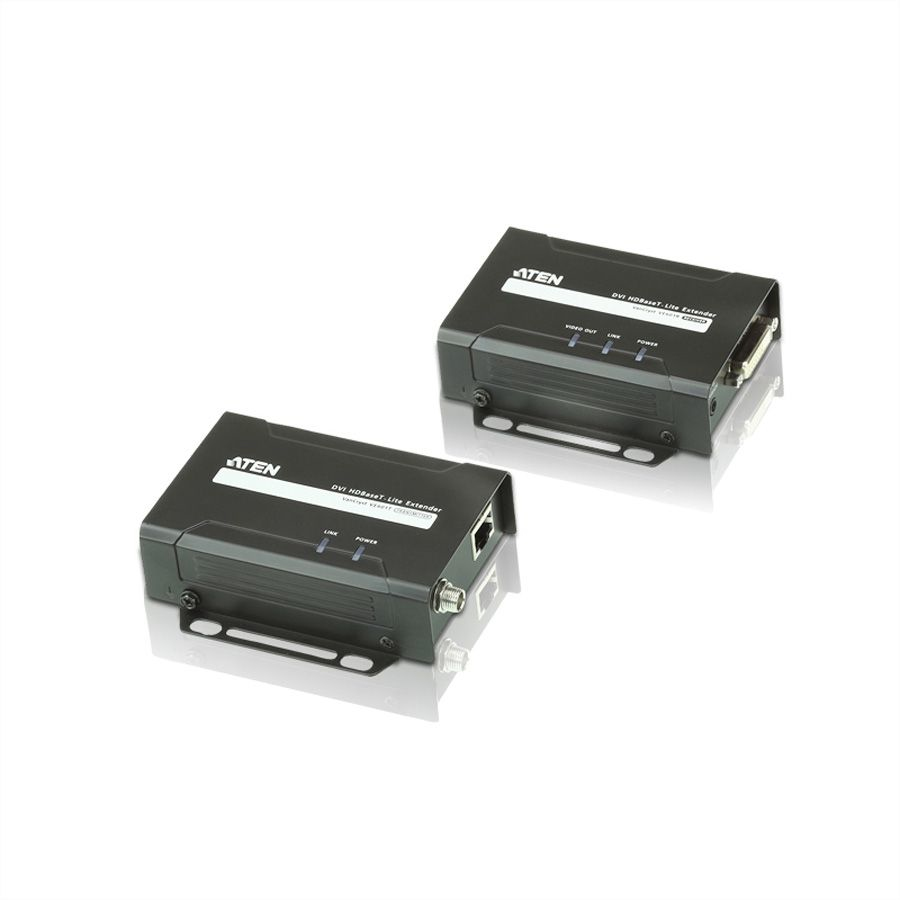

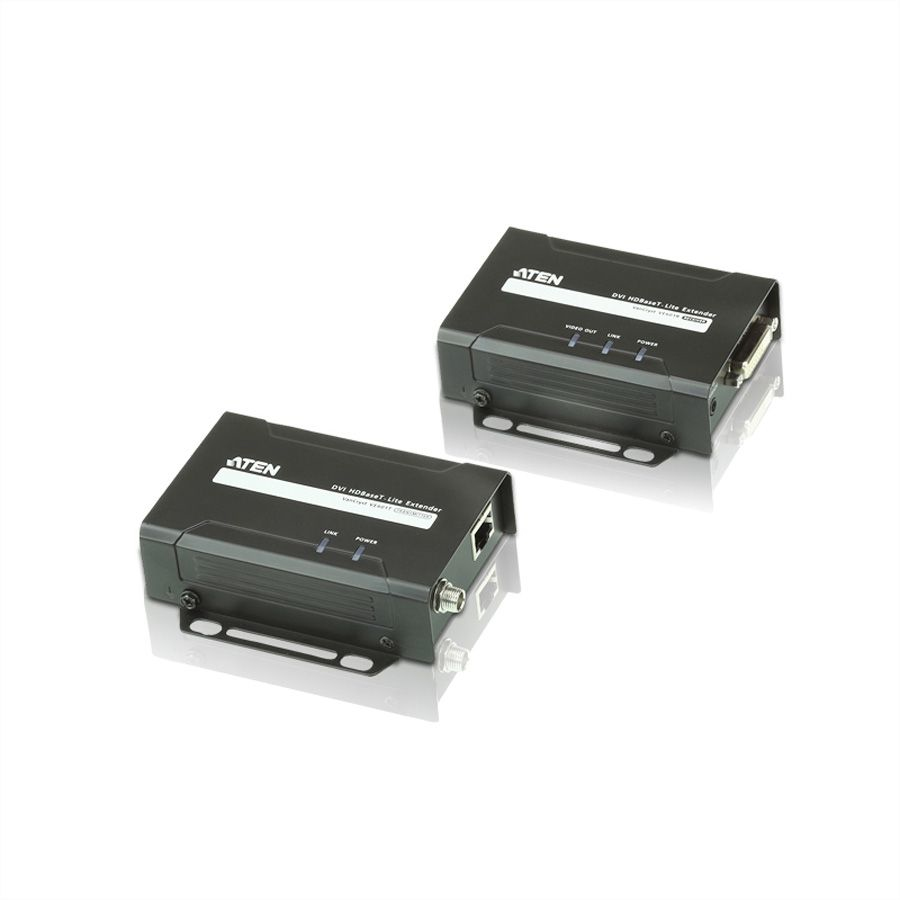

ATEN DVI HDBASET EXTENDER
Networking > Network Accessories
- Brand: ATEN
- Category: Networking
- SKU: VE601-AT-U
- MPN: VE601-AT-U
ATEN VE601-AT-U AV extender AV transmitter & receiver Black
ATEN VE601-AT-U, 1920 x 1200 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
Click or hover over image to enlarge
AC input frequency
60 Hz
Operating voltage
5 V
Power consumption (transmitter) (max)
1.85 W
Power consumption (receiver) (max)
4.23 W
Type
AV transmitter & receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e, Cat6, Cat6a
Maximum transfer distance
70 m
Comsys Price
Save $68.72 off RRP
Available to Order
4 payments of $118.74Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.
Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.
Collection available — we'll confirm pickup readiness after your order:
- 68 Plunket Avenue, Papatoetoe, Auckland 2104
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN DVI HDBASET EXTENDER
- HDBaseT Connectivity – extends a DVI connection up to 70 meters via a single Ethernet cable
- HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
- Rack-Mountable
Key features
- Type: AV transmitter & receiver
- Maximum resolution: 1920 x 1200 pixels
- Cable types supported: Cat5e, Cat6, Cat6a
- Maximum transfer distance: 70 m
- Supported graphics resolutions: 1920 x 1200 (WUXGA)
- Bandwidth: 340 MHz
- HDCP: Yes
- Material: Metal
- Impedance: 100 Ω
- Product colour: Black
- Connectivity technology: Wired
- DVI input ports: 1
- DVI output ports: 1
- DC-in jack: Yes
- AC input frequency: 60 Hz
- Operating voltage: 5 V
- Power consumption (transmitter) (max): 1.85 W
- Power consumption (receiver) (max): 4.23 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Receiver dimensions (WxDxH): 87 x 103 x 30 mm
- Receiver weight: 250 g
- Transmitter dimensions (WxDxH): 87 x 103 x 30 mm
- Transmitter weight: 250 g
- Quantity per pack: 2 pc(s)
- Manual: Yes
Inc GST
$474.94
