ATEN VE3912T-AT-U AV extender AV transmitter Black

ATEN VE3912T-AT-U, 4096 x 2160 pixels, AV transmitter, 100 m, Wired, Black, HDCP

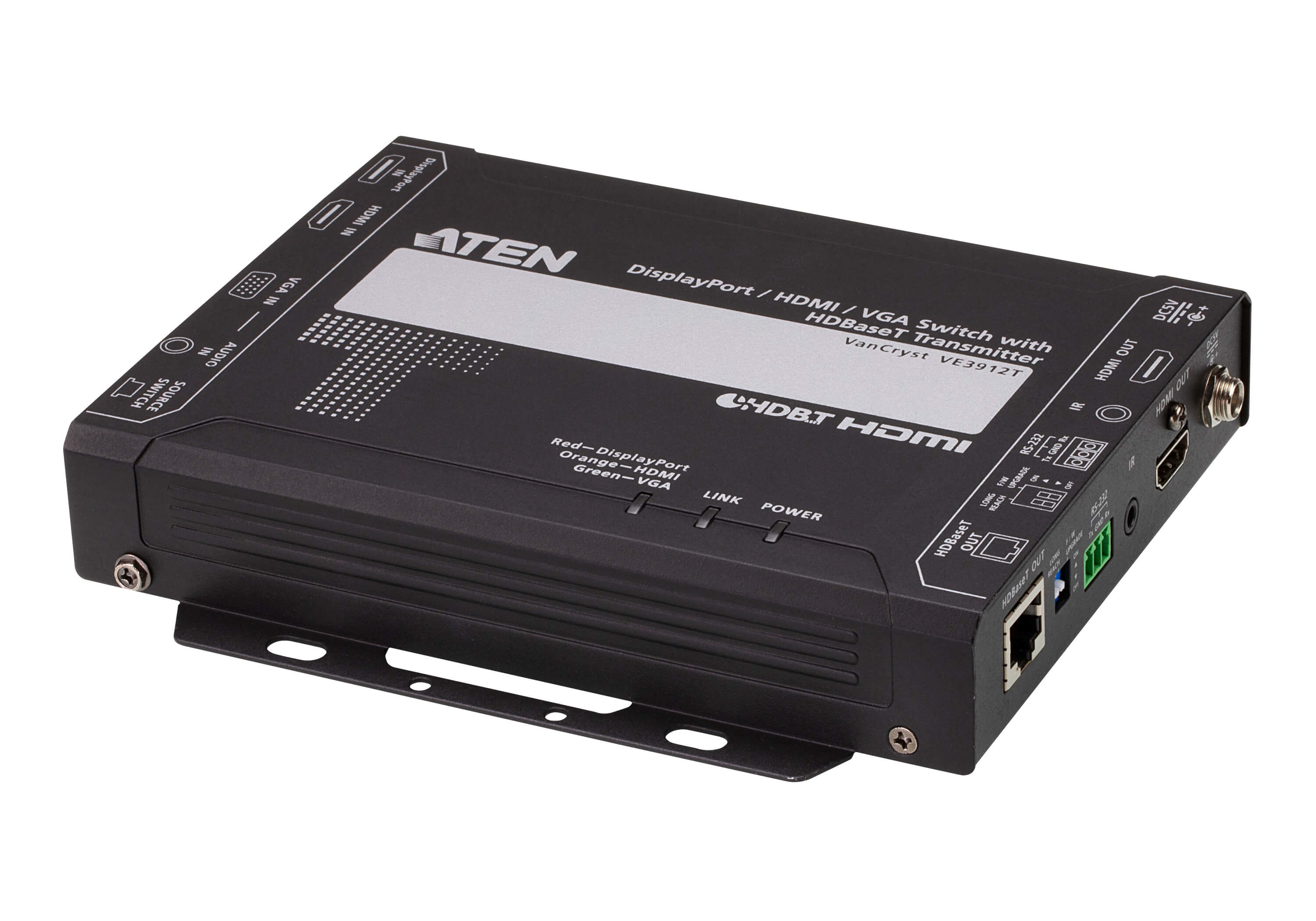

ATEN DP/HDMI/VGA SWITCH WITH HDBASET TRANSMITTER

Click or hover over image to enlarge

Brand:ATEN
MPN:VE3912T-AT-U

Part #: VE3912T-AT-U

Power consumption (max)

8.77 W

External power adapter

Yes

Type

AV transmitter

Maximum resolution

4096 x 2160 pixels

Maximum transfer distance

100 m

Supported video modes

1080p, 2160p

Supported graphics resolutions

1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160

Bandwidth

340 MHz

Returns & Warranty

Comsys Price

$1,362.74

Save $136.43 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $340.69 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN DP/HDMI/VGA SWITCH WITH HDBASET TRANSMITTER

The ATEN VE3912T is an HDBaseT transmitter that extends 4K DisplayPort, HDMI, or VGA video signals up to 100 m over a single Cat 6/6a or ATEN 2L-2910 Cat 6 cable. Featuring multiple video input formats and output resolutions up to 4K, it ensures a superior video quality for applications that require digital/analog sources conversion and extension.
1x VE3912T DisplayPort / HDMI / VGA Switch with HDBaseT Transmitter
1x RS-232 Terminal Block
1x 0AD8-1F05-30M1 Power Adapter
4x Foot Pads
1x User Instructions

Key features

  • Type: AV transmitter
  • Maximum resolution: 4096 x 2160 pixels
  • Maximum transfer distance: 100 m
  • Supported video modes: 1080p, 2160p
  • Supported graphics resolutions: 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 4096 x 2160
  • Bandwidth: 10.2 Gbit/s
  • Bandwidth: 340 MHz
  • Power: 8.77 W
  • On/off switch: Yes
  • HDCP: Yes
  • Material: Metal
  • Control type: Buttons
  • Consumer Electronics Control (CEC) support: Yes
  • Impedance: 100 Ω
  • HDCP version: 2.2
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN: Yes
  • RJ-45 input ports: 1
  • VGA (D-Sub) input ports: 1
  • HDMI in: 1
  • Number of HDMI outputs: 1
  • DisplayPorts in: 1
  • RS-232 output ports: 1
  • Video in: 1 x HDMI Type A
  • Video out: 1 x HDMI Type A
  • VGA (D-Sub) ports quantity: 2
  • Audio input: 1 x HDMI Type A
  • AUX in: Yes
  • DC-in jack: Yes

+ 17 more — see the Specifications tab.
