ATEN UC3310-AT-U video capturing device USB 3.2 Gen 1 (3.1 Gen 1)

ATEN UC3310-AT-U, Black, USB 3.2 Gen 1 (3.1 Gen 1), Metal, Taiwan, 720p, 1080p, 2160p, 48 kHz

ATEN CAMLIVE MX UVC CAMERA SEAMLESS MATRIX WITH 2 X USB3.0 CAMERA INPUTS AND HDMI OUTPUT

Click or hover over image to enlarge

Brand:ATEN
MPN:UC3310-AT-U

Part #: UC3310-AT-U

Audio sampling rate

16 bit

Power supply type

DC

Output voltage

12 V

Supported video modes

720p, 1080p, 2160p

Windows operating systems supported

Windows 10, Windows 11

Mac compatibility

Yes

Product colour

Black

Internal

No

Returns & Warranty

Comsys Price

$926.89

Save $55.40 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Afterpay

Four payments of $231.72 per fortnight

Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

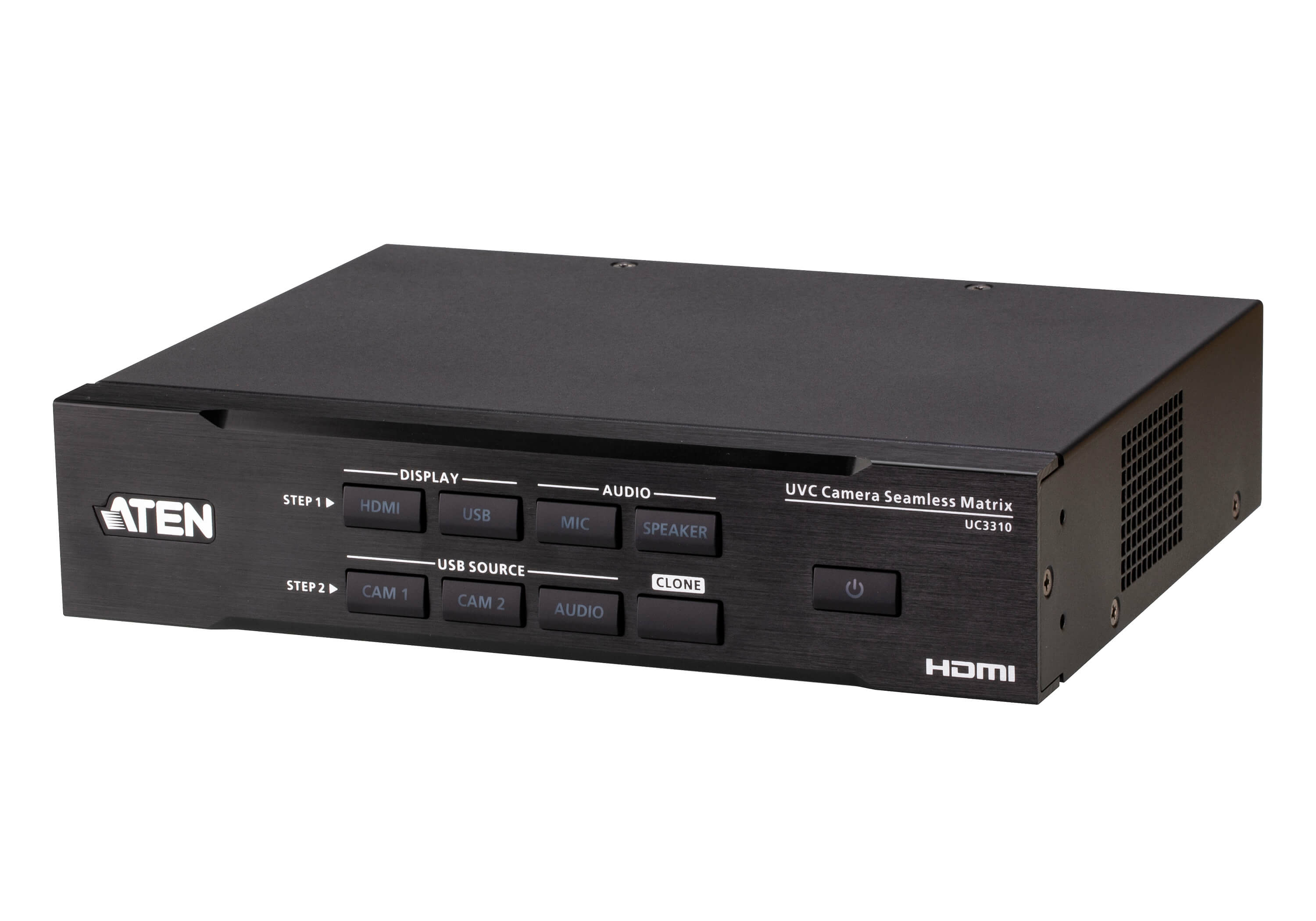

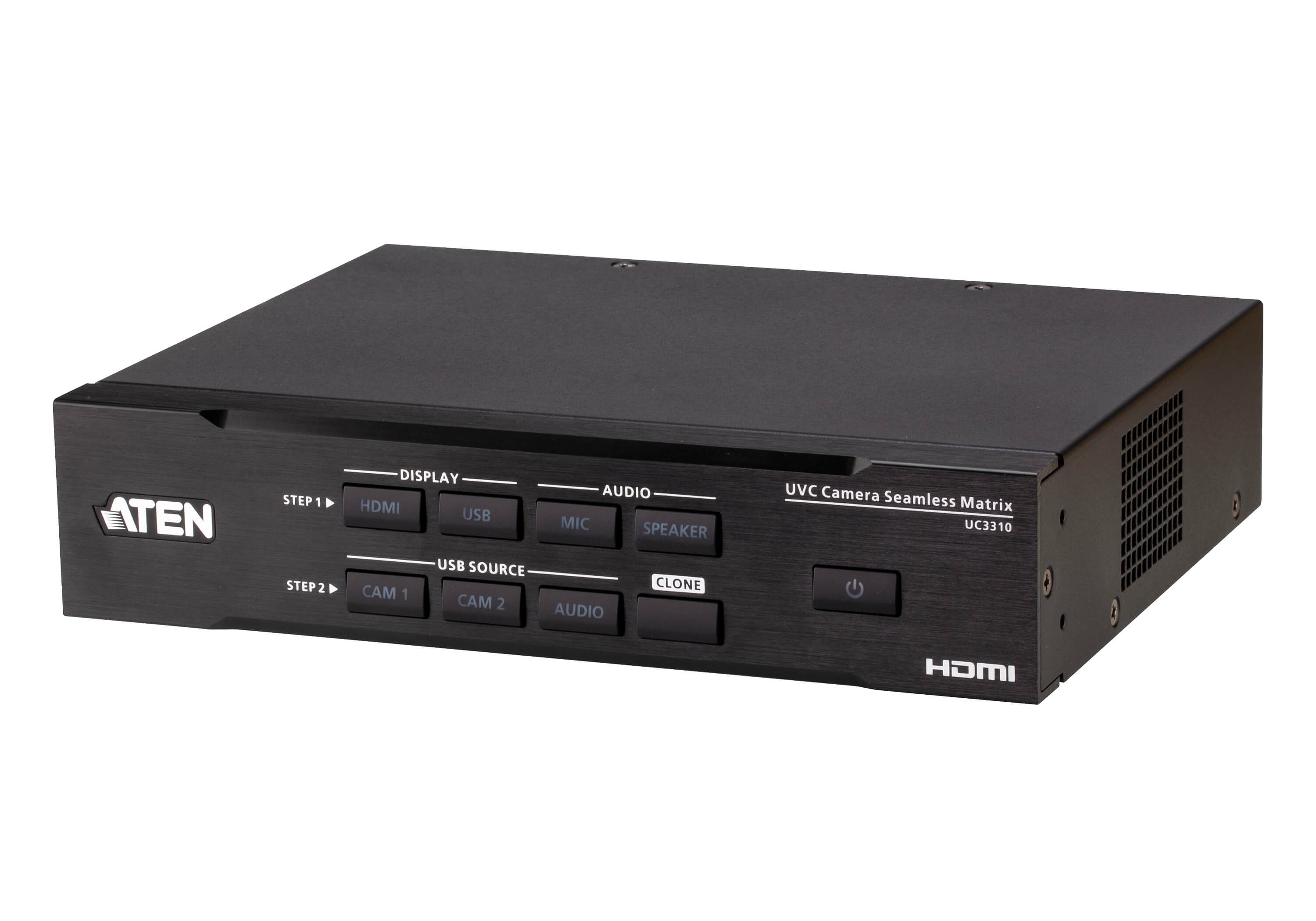

ATEN CAMLIVE MX UVC CAMERA SEAMLESS MATRIX WITH 2 X USB3.0 CAMERA INPUTS AND HDMI OUTPUT

The CAMLIVE MX (UC3310) UVC Camera Seamless Matrix enables the conversion of up to two 4K @ 30 USB camera sources into one HDMI, allowing seamless switch among the sources. Besides, it features the encoding solution supporting 1080p@30 UVC output simultaneously for live broadcasting on popular streaming software such as Microsoft Teams, Zooms, OBS, XSplit, YouTube, Facebook, GoToWebinar, and Twitch, guaranteeing an engaging video conferencing experience with high quality images and sound.

Pushbuttons are built on the front panel for quick and intuitive signal selection. The RS-232 connection enables integration with ATEN VK series and other third-party control systems. The CAMLIVE MX also comes with RS-485 interface to support VISCA protocol for PTZ camera controller connection. An optional rack mount kit is available to give installation flexibility in media cabinets or DIT stations. The CAMLIVE MX delivers plug-and-play convenience with no software drivers needed. In addition, it runs on all major operating systems including windows 10 and macOS 10.1 for all users to customize video streams for various online meeting applications.

Key features

  • Product colour: Black
  • Internal: No
  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1)
  • Housing material: Metal
  • Country of origin: Taiwan
  • Supported video modes: 720p, 1080p, 2160p
  • Audio sampling rate: 48 kHz
  • Audio sampling rate: 16 bit
  • USB port: Yes
  • USB connector type: USB Type-A, USB Type-C
  • USB ports quantity: 3
  • Number of HDMI outputs: 1
  • Power supply type: DC
  • Output voltage: 12 V
  • Windows operating systems supported: Windows 10, Windows 11
  • Mac compatibility: Yes
  • Minimum processor: Intel i3 Dual Core 2.8Ghz
  • Minimum RAM: 4000 MB
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Width: 200 mm
  • Depth: 164.6 mm
  • Height: 44 mm
  • Weight: 980 g
  • Video in: 1 x USB3.2 Gen1 Type A, 1 x USB3.2 Gen1 Type C
  • RS-232 ports: 1
  • Master (outer) case width: 370 mm
  • Master (outer) case height: 232 mm
  • Package weight: 1.65 kg

+ 7 more — see the Specifications tab.
