ATEN VM6809H-AT-U video switch HDMI
ATEN VM6809H-AT-U, HDMI, Metal, Black, 15 m, 3840 x 2160, 4096 x 2160, 10.2 Gbit/s
Click or hover over image to enlarge
Brand:ATEN
MPN:VM6809H-AT-U
Part #: VM6809H-AT-U
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
AC adapter input current
1 A
Material
Metal
Product colour
Black
HDCP
Yes
Maximum operating distance
15 m
Supported graphics resolutions
3840 x 2160, 4096 x 2160
Comsys Price
$15,359.39
Save $2,030.60 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.

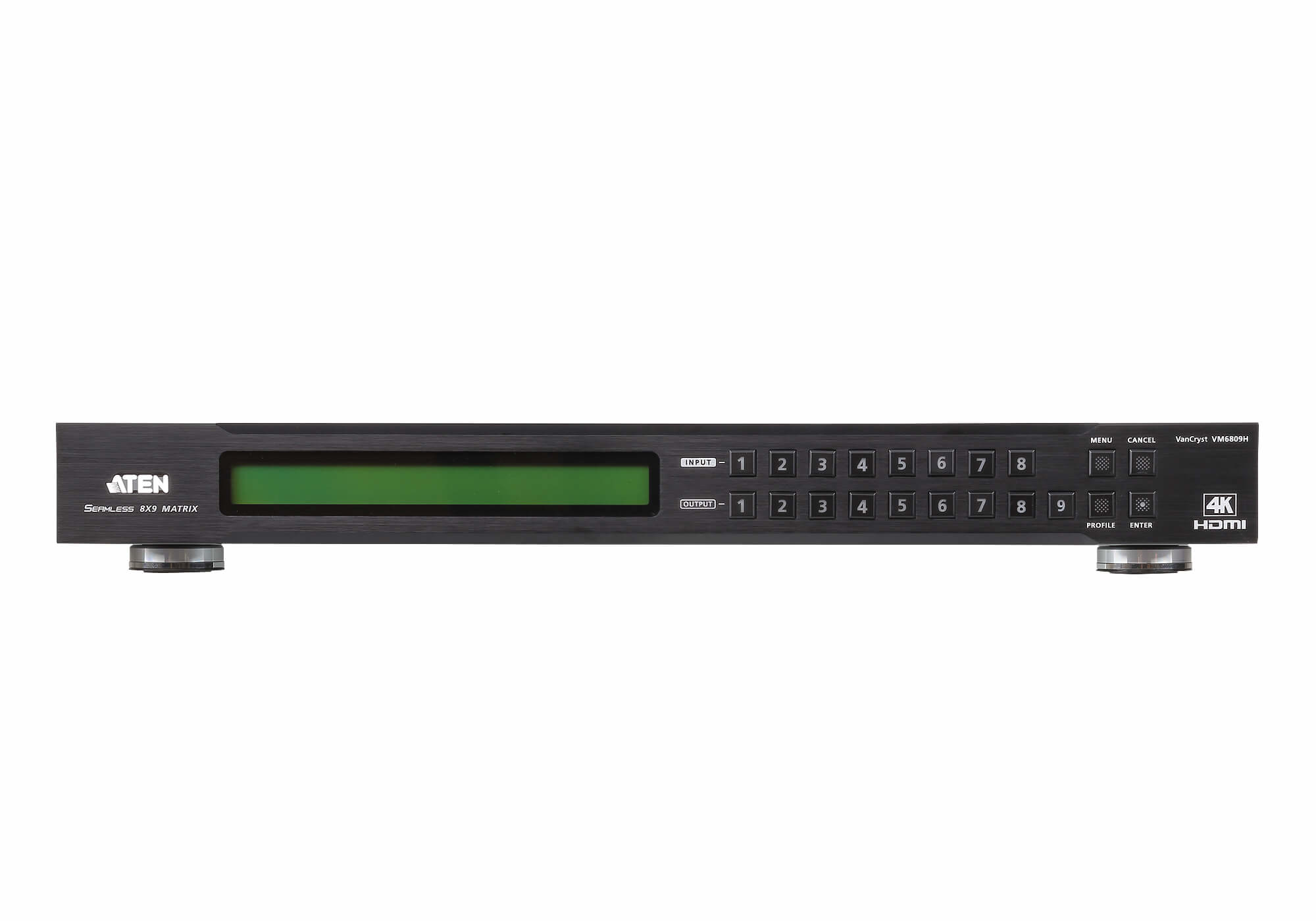

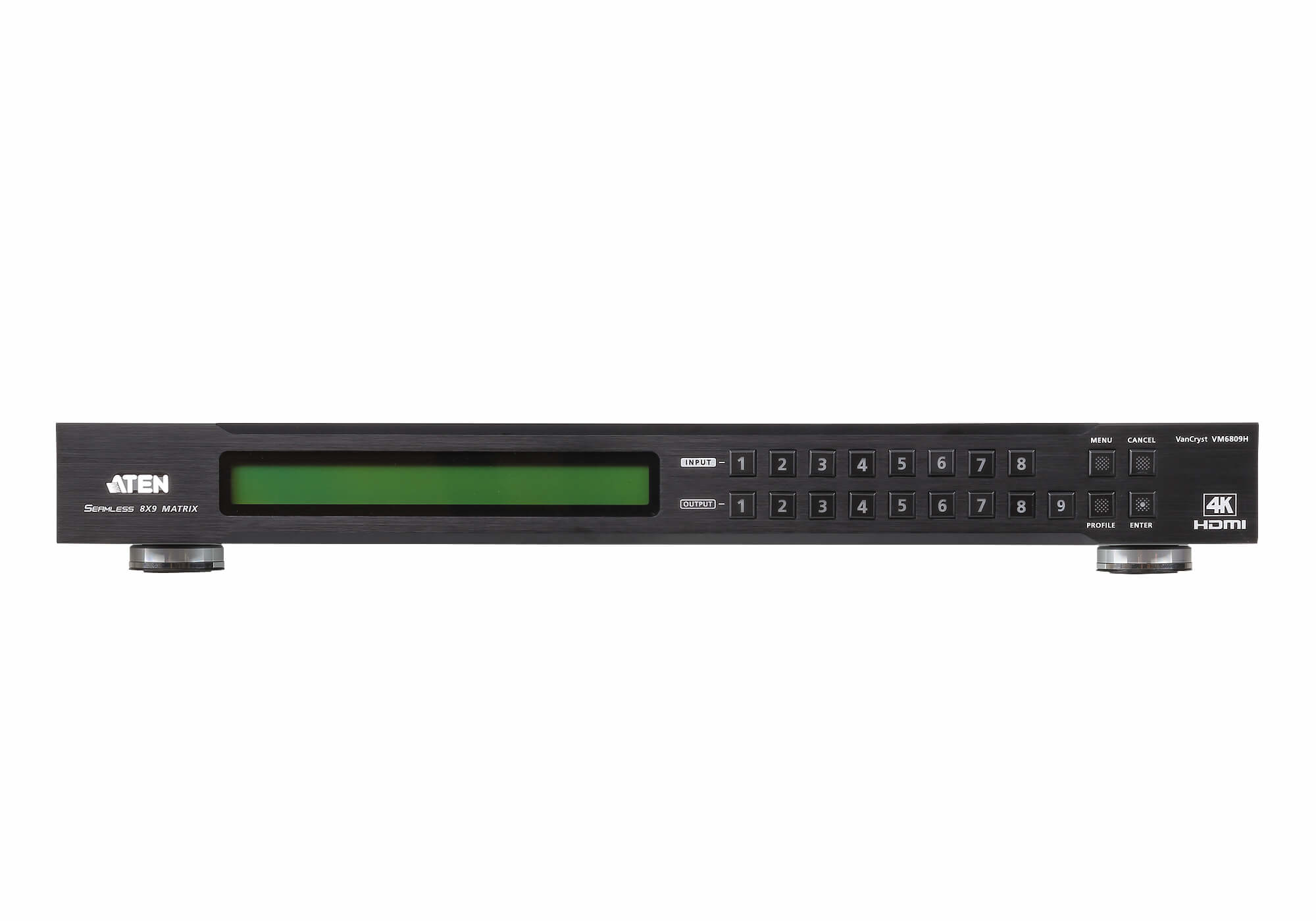

ATEN 8X9 4K HDMI MATRIX WITH SCALER
4K is the next generation of image quality for high definition video, which delivers eight million pixels that is four times as much detail as 1080p Full HD resolutions. ATEN’s VM6809H 4K HDMI Matrix Switch with Scaler is compatible with the two latest 4K video resolution standards: 3840 x 2160 and 4096 x 2160. The VM6809H offers powerful HD processing to produce 4K resolutions across nine displays with crystal-clear images.
The VM6809H supports 4K @ 60 Hz, HDMI 2.0* and HDCP 2.2 and features seamless switching that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6809H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 17 connection profiles that can be customized into different video wall layouts.
The VM6809H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup – such as for stage presentations, digital classroom, video conference rooms and any installation that requires real-time synchronization.
The VM6809H supports 4K @ 60 Hz, HDMI 2.0* and HDCP 2.2 and features seamless switching that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6809H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 17 connection profiles that can be customized into different video wall layouts.
The VM6809H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup – such as for stage presentations, digital classroom, video conference rooms and any installation that requires real-time synchronization.
Key features
- Video port type: HDMI
- HDMI ports quantity: 17
- HDMI version: 2.0
- HDMI in: 8
- Number of HDMI outputs: 9
- RJ-45 input ports: 1
- 3.5 mm (1/8-inch) out: Yes
- RS-232 ports: 1
- Material: Metal
- Product colour: Black
- HDCP: Yes
- Maximum operating distance: 15 m
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Bandwidth: 10.2 Gbit/s
- LED indicators: Yes
- Bandwidth: 340 MHz
- Maximum resolution: 4096 x 2160 pixels
- Built-in speaker(s): No
- 3D: Yes
- HD type: 4K Ultra HD
- Rack capacity: 1U
- Input impedance: 100 Ω
- Output impedance: 100 Ω
- HDCP version: 2.2
- AC adapter input voltage: 100 - 240 V
- AC adapter frequency: 50/60 Hz
- AC adapter input current: 1 A
- Width: 450.3 mm
- Depth: 432.4 mm
- Height: 44 mm
+ 8 more — see the Specifications tab.
