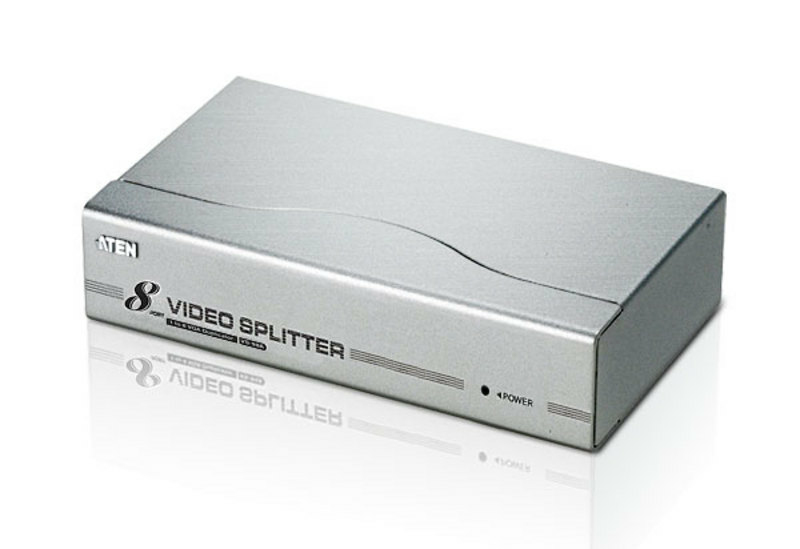

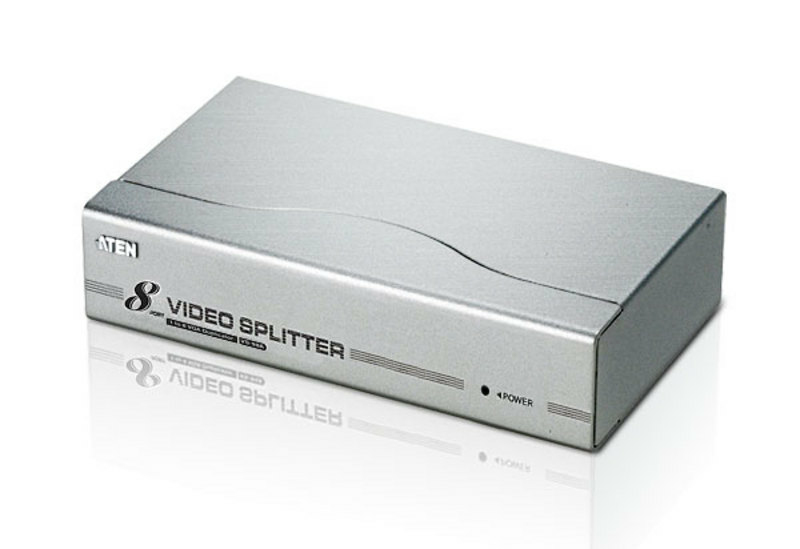

ATEN 8 PORT VGA SPLITTER

Networking > Network Accessories

  • Brand: ATEN
  • Category: Networking
  • SKU: VS98A-AT-U
  • MPN: VS98A-AT-U

ATEN 8-Port VGA Video Splitter (300 MHz)

ATEN 8-Port VGA Video Splitter (300 MHz), VGA, 8x VGA, 1920 x 1440 pixels, Silver, Metal, 30 m

ATEN 8 PORT VGA SPLITTER — ATEN — NETWORKING

Click or hover over image to enlarge

Brand:ATEN
MPN:VS98A-AT-U

Part #: VS98A-AT-U

Search this part on Google

AC input voltage

9 V

Power consumption (typical)

5 W

Product colour

Silver

Housing material

Metal

Maximum resolution

1920 x 1440 pixels

Maximum operating distance

30 m

Maximum refresh rate

60 Hz

Bandwidth

300 MHz

Returns & Warranty

Comsys Price

$137.99
On Sale

Save $22.00 off RRP

Available to Order

NZ-wide deliveryShips from Auckland · 1–3 days
1
Afterpay4 payments of $34.50
100% NZ Owned & OperatedCall 0800 664 554

Shipped NZ‑wide. Freight is calculated at checkout from live courier rates; delivery within Auckland is free on standard‑size items.

Standard delivery to main‑centre, ground‑floor addresses is included in the quoted rate. For rural or oversized deliveries, any extra freight will be confirmed before dispatch.

Add To Compare
We acceptVisaMastercardAmerican ExpressApple PayGoogle PayAfterpay
Afterpay — pay it in 4 interest-free instalments
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

Secure Checkout

Trusted payment methods and encrypted transactions.

Technical Support

Pre-sales and post-sales support from our team.

Warranty Backed

Local warranty handling and straightforward returns.

ATEN 8 PORT VGA SPLITTER

The VS98A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to eight outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 512 displays, and offering bandwidth up to 300 MHz, the VS98A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.

Key features

  • Video port type: VGA
  • Video out: 8x VGA
  • Video ports quantity: 9
  • DC-in jack: Yes
  • Product colour: Silver
  • Housing material: Metal
  • Maximum resolution: 1920 x 1440 pixels
  • Maximum operating distance: 30 m
  • Maximum refresh rate: 60 Hz
  • Bandwidth: 300 MHz
  • LED indicators: Power
  • AC input voltage: 9 V
  • Power consumption (typical): 5 W
  • Width: 75.1 mm
  • Depth: 200 mm
  • Height: 44 mm
  • Weight: 750 g
  • Quantity per pack: 1 pc(s)
  • Package width: 59 mm
  • Package depth: 239 mm
  • Package height: 160 mm
  • Package weight: 910 g
  • Manual: Yes
  • AC adapter included: Yes
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%
  • Master (outer) case net weight: 15 kg
  • Harmonized System (HS) code: 85176990
  • Master (outer) case width: 315 mm

+ 4 more — see the Specifications tab.
