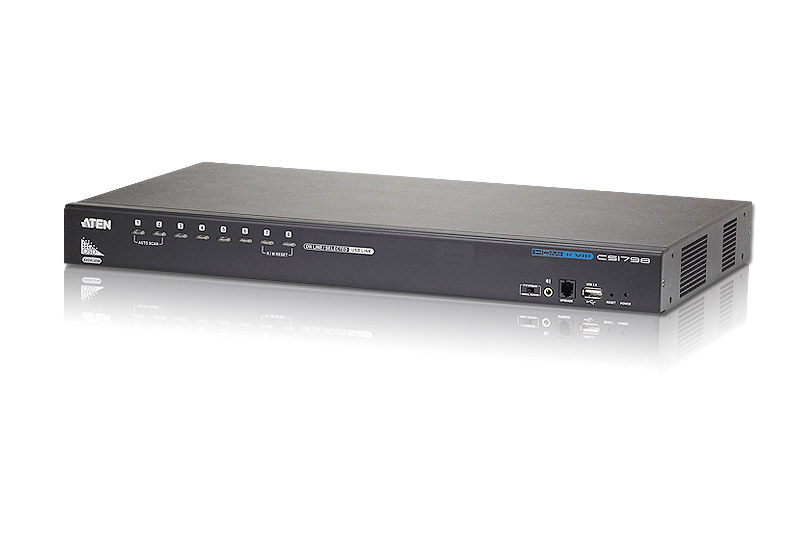

ATEN CS1798-AT-U KVM switch Black
ATEN CS1798-AT-U, 1920 x 1200 pixels, WUXGA, 8.56 W, Black
Click or hover over image to enlarge
Brand:ATEN
MPN:CS1798-AT-U
Part #: CS1798-AT-U
Power source
DC
Input voltage
5 V
Power consumption (typical)
8.56 W
Product colour
Black
Housing material
Metal
LED indicators
Yes
Built-in display
No
HD type
WUXGA
Comsys Price
$1,181.04
Save $61.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $295.26 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 8-PORT USB HDMI/AUDIO KVM SWITCH
The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard, USB mouse, and monitor console.
1x CS1798 8-Port USB HDMI KVM Switch
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power cord
1x 0AD8-8005-40MG Power Adaptor
1x Foot Pad Set (4 pcs)
&x Rackmounting Kit
1x User Instructions
1x CS1798 8-Port USB HDMI KVM Switch
2x 2L-7D02UH Custom USB HDMI KVM Cable Sets
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power cord
1x 0AD8-8005-40MG Power Adaptor
1x Foot Pad Set (4 pcs)
&x Rackmounting Kit
1x User Instructions
Key features
- Number of computers controlled: 8
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: HDMI
- HDMI ports quantity: 8
- USB 2.0 Type-B ports quantity: 8
- Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
- Console USB ports quantity: 2
- USB hub: Yes
- USB 2.0 Type-A hub ports quantity: 2
- USB connector type: USB Type-A, USB Type-B
- Audio connections: Yes
- Headphone outputs: 9
- Number of microphone inputs: 1
- DC-in jack: Yes
- HD type: WUXGA
- Maximum resolution: 1920 x 1200 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,5,255 s
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Built-in display: No
- Power source: DC
- Input voltage: 5 V
- Power consumption (typical): 8.56 W
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Mac operating systems supported: Yes
- Operating temperature (T-T): 0 - 50 °C
+ 13 more — see the Specifications tab.
Inc GST
$1,181.04
