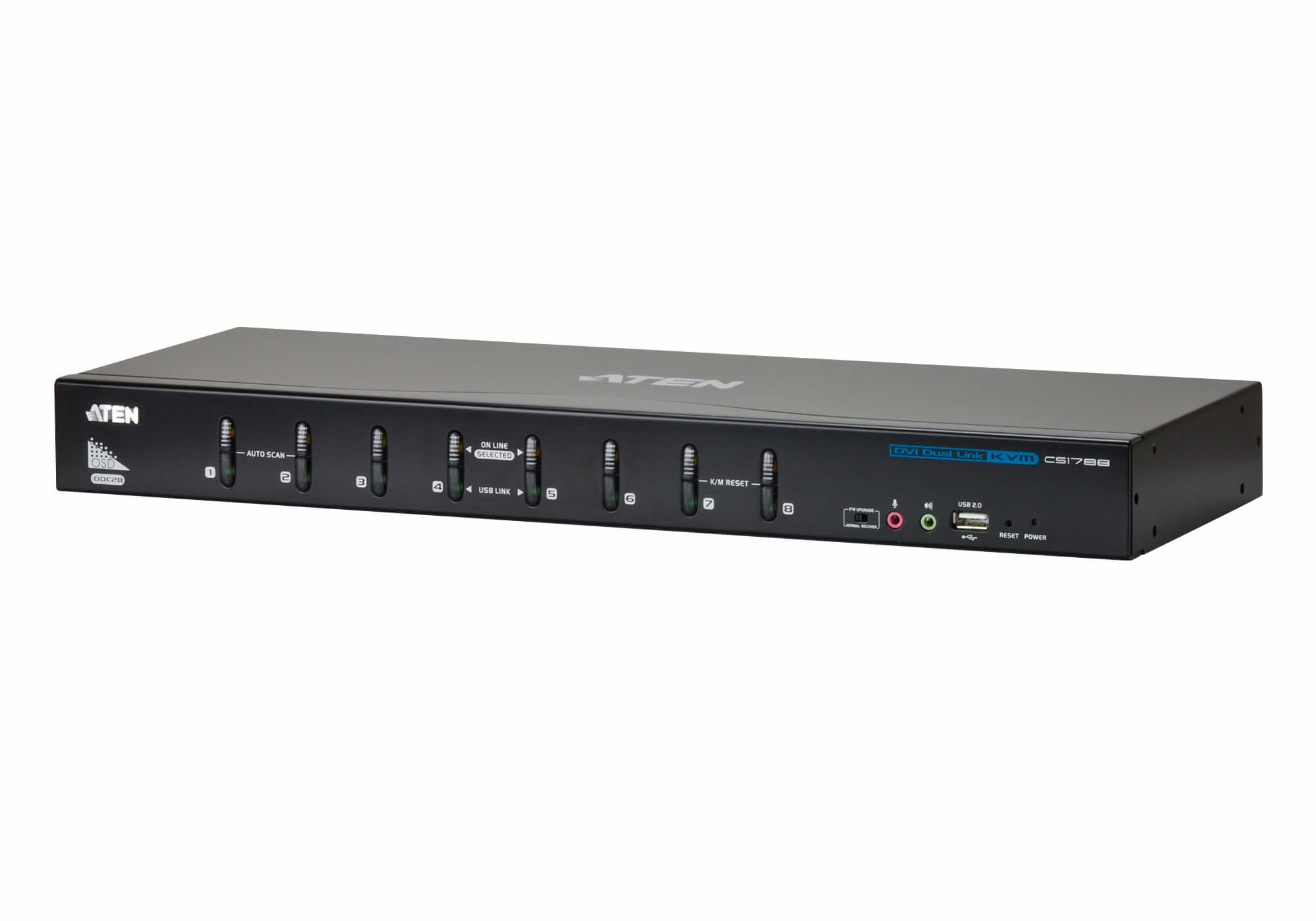

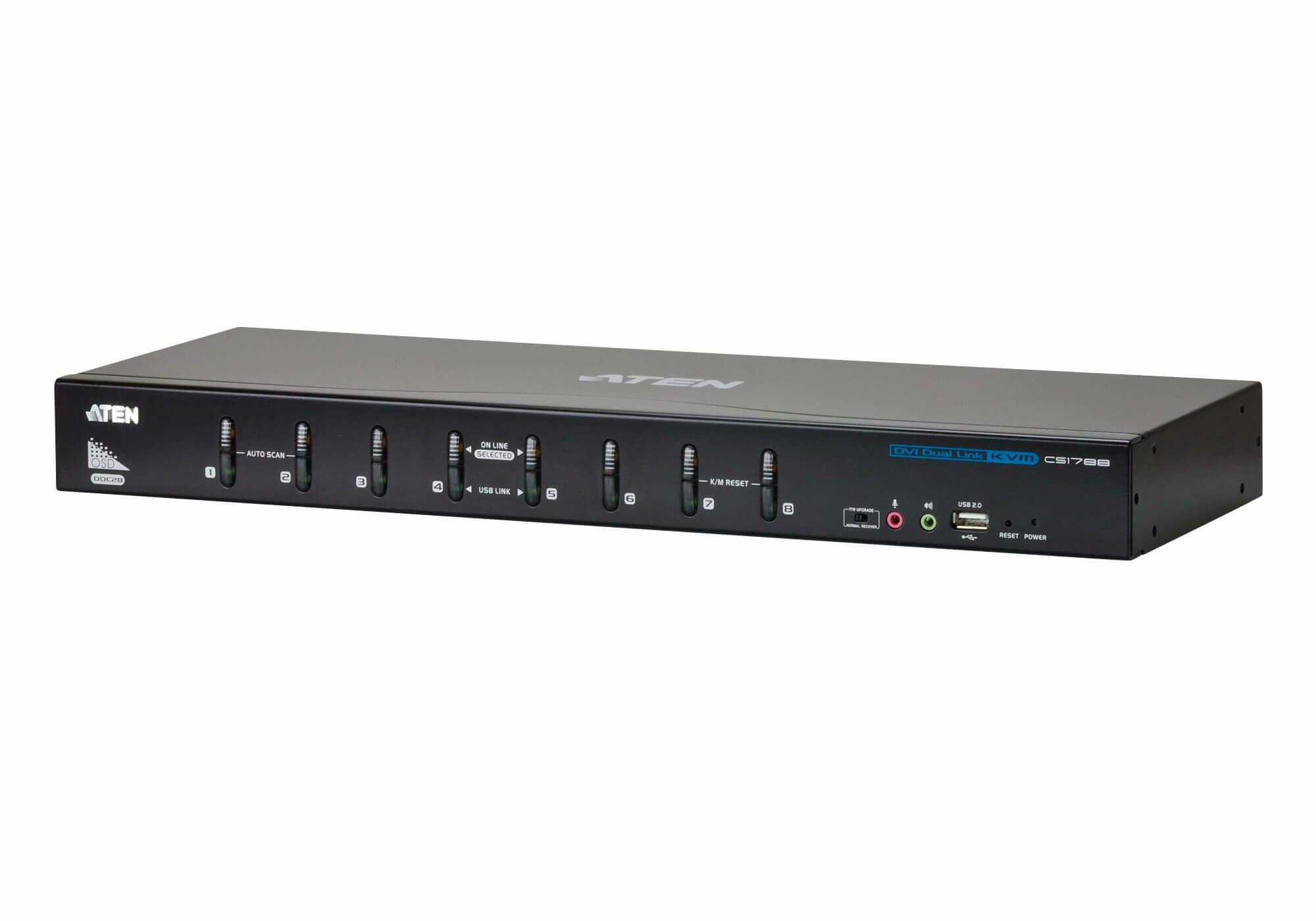

ATEN CS1788-AT-U KVM switch Black
ATEN CS1788-AT-U, 2560 x 1600 pixels, WQXGA, 8.26 W, Black
Click or hover over image to enlarge
Brand:ATEN
MPN:CS1788-AT-U
Part #: CS1788-AT-U
Power source
DC
Input voltage
5.3 V
Power consumption (typical)
8.26 W
Product colour
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Built-in display
No
Comsys Price
$1,544.44
Save $147.00 off RRP
Out of Stock
Contact us for ETA or alternatives
Free NZ deliveryover $150·Ships from Auckland, 1–3 days
Four payments of $386.11 per fortnight
Value Deal
Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.
Secure Checkout
Trusted payment methods and encrypted transactions.
Technical Support
Pre-sales and post-sales support from our team.
Warranty Backed
Local warranty handling and straightforward returns.
ATEN 8 PORT USB DVI DUAL LINK KVM SWITCH
The CS1788 8-Port USB DVI Dual Link KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.
It can be cascaded to three levels – allowing up to 73 CS1788s to control up to 512 computers – all from the original single console, making it ideal for IT applications and management.
In addition, the CS1788 features multi-display functionality, which enables the use of standard USB cables to stack up to four switches for quad-displaying in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
1x CS1788 8-Port USB DVI KVM Switch with Rack Mounting Kit
2x 2L-7D02UD USB DVI-D Dual Link KVM Cable Sets
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0AD8-8605-40MG Power Adapter
1x Foot Pad Set (4 pcs)
1x User Instructions
It can be cascaded to three levels – allowing up to 73 CS1788s to control up to 512 computers – all from the original single console, making it ideal for IT applications and management.
In addition, the CS1788 features multi-display functionality, which enables the use of standard USB cables to stack up to four switches for quad-displaying in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
1x CS1788 8-Port USB DVI KVM Switch with Rack Mounting Kit
2x 2L-7D02UD USB DVI-D Dual Link KVM Cable Sets
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0AD8-8605-40MG Power Adapter
1x Foot Pad Set (4 pcs)
1x User Instructions
Key features
- Number of computers controlled: 8
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DVI-I
- DVI-I ports quantity: 8
- USB 2.0 Type-B ports quantity: 8
- Console ports: 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
- Console USB ports quantity: 2
- USB hub: Yes
- USB 2.0 Type-A hub ports quantity: 2
- USB connector type: USB Type-A, USB Type-B
- Audio connections: Yes
- Headphone outputs: 10
- Number of microphone inputs: 10
- DC-in jack: Yes
- HD type: WQXGA
- Maximum resolution: 2560 x 1600 pixels
- Video bandwidth: 60 Hz
- Scan interval: 1,5,255 s
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Push button: Yes
- Built-in display: No
- Power source: DC
- Input voltage: 5.3 V
- Power consumption (typical): 8.26 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
+ 11 more — see the Specifications tab.
