ATEN 8-Port USB DisplayPort Dual Display Secure KVM Switch (PSD PP…

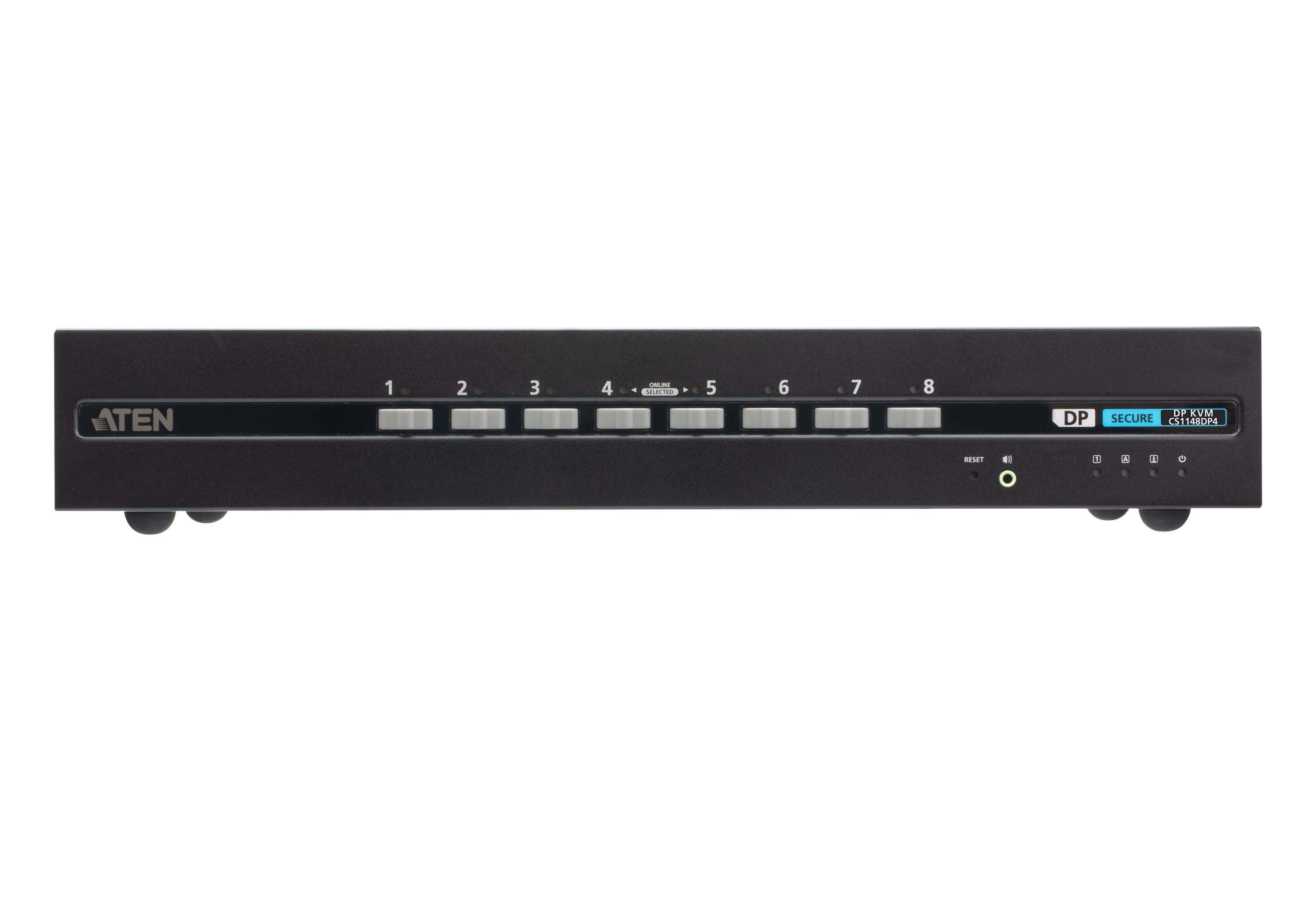

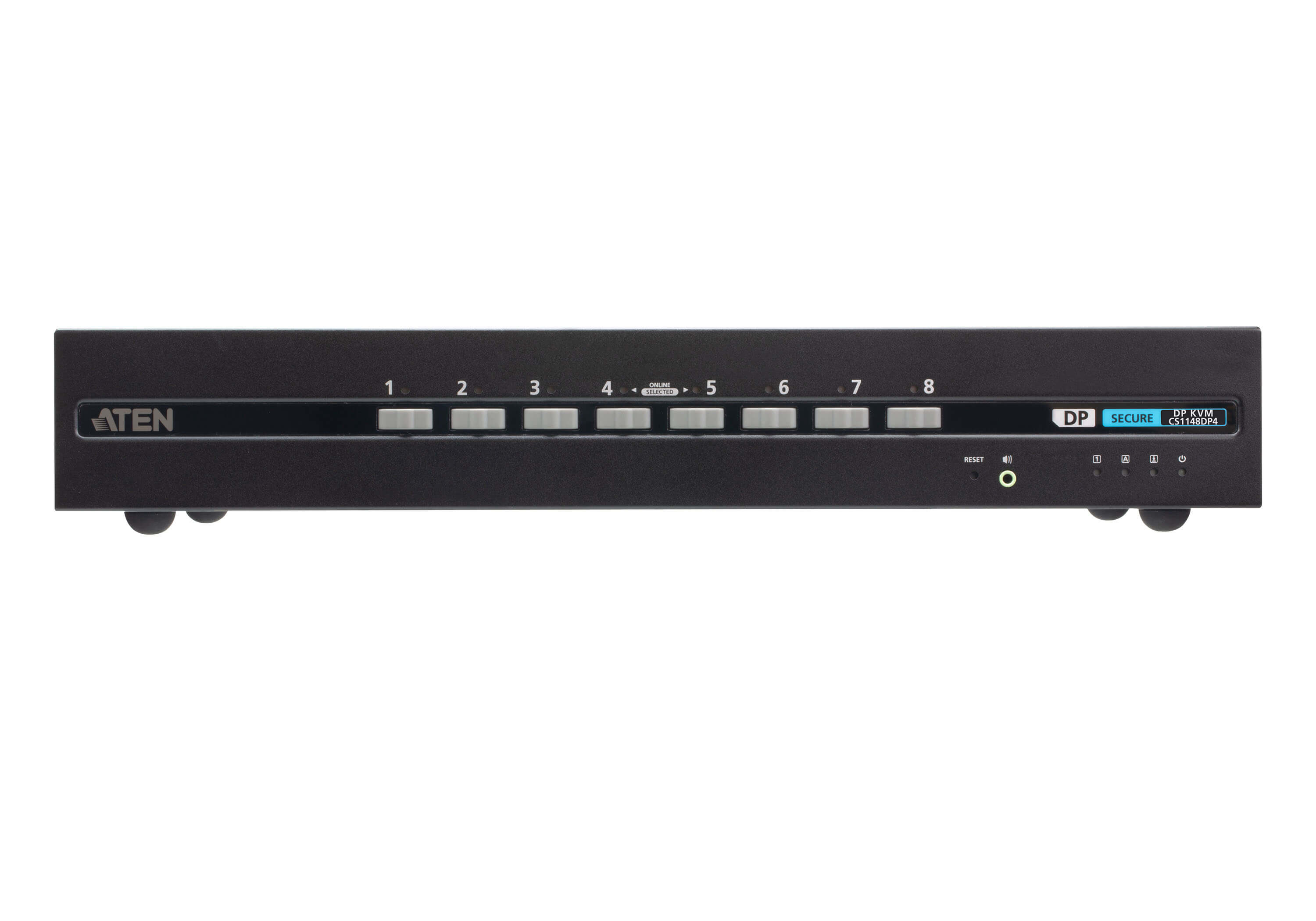

ATEN 8-Port USB DisplayPort Dual Display Secure KVM Switch (PSD PP v4.0 Compliant), 3840 x 2160 pixels, 4K Ultra HD, Rack mounting, 24.2 W, Black

ATEN 8-PORT USB DVI DUAL DISPLAY SECURE KVM SWITCH (PSD PP V4.0 COMPLIANT)

Click or hover over image to enlarge

Brand:ATEN
MPN:CS1148DP4-AT-U

Part #: CS1148DP4-AT-U


Power source

AC

Input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

1.5 A

Power consumption (typical)

24.2 W

Rack mounting

Yes

Product colour

Black

Housing material

Metal


Returns & Warranty

Comsys Price

$5,280.79

Save $321.00 off RRP

Out of Stock

Contact us for ETA or alternatives

Free NZ deliveryover $150·Ships from Auckland, 1–3 days
1
Add To Compare
Value Deal

Fast dispatch and fair pricing on every order. Found a better offer? Ask for a match.

ATEN 8-PORT USB DVI DUAL DISPLAY SECURE KVM SWITCH (PSD PP V4.0 COMPLIANT)

ATEN PSD PP v4.0 Secure KVM Switch CS1148DP4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1148DP4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

ATEN PSD PP v4.0 Secure KVM Switch CS1148DP4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1148DP4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1. With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1148DP4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

Key features

  • Number of computers controlled: 8
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DisplayPort
  • DisplayPorts quantity: 16
  • USB 2.0 Type-B ports quantity: 8
  • Console ports: 3.5mm headphone, DisplayPort, USB A
  • Console USB ports quantity: 2
  • Console DisplayPorts ports quantity: 2
  • USB connector type: USB Type-A, USB Type-B
  • Audio connections: Yes
  • Headphone outputs: 9
  • RJ-11 ports quantity: 1
  • HD type: 4K Ultra HD
  • Maximum resolution: 3840 x 2160 pixels
  • Video bandwidth: 30 Hz
  • Rack mounting: Yes
  • Product colour: Black
  • Housing material: Metal
  • LED indicators: Yes
  • Push button: Yes
  • Built-in display: No
  • Power source: AC
  • Input voltage: 100 - 240 V
  • AC input frequency: 50 - 60 Hz
  • Input current: 1.5 A
  • Power consumption (typical): 24.2 W
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%

+ 6 more — see the Specifications tab.
